Edgeboard Connectors Overview

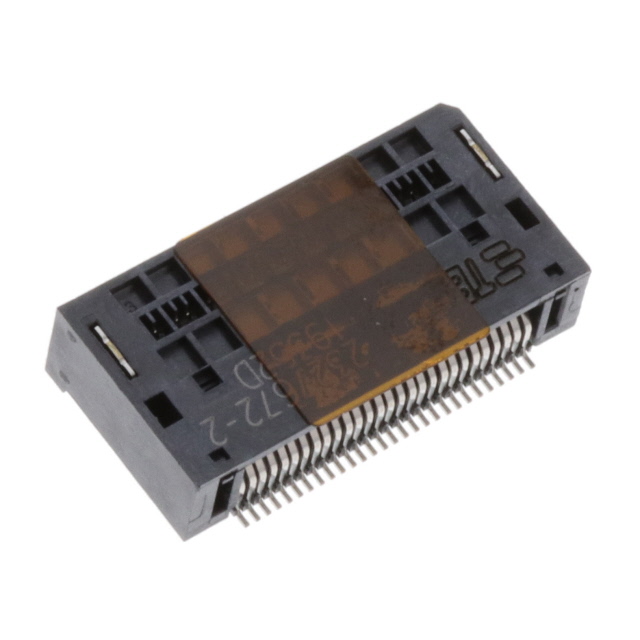

The TE Connectivity AMP Connectors part number 2327672-2 is a standard card edge connector receptacle assembly. It features 56 positions arranged in a dual-row configuration with a 0.024-inch (0.60mm) pitch. The connector utilizes gold-plated copper alloy contacts and a black liquid crystal polymer (LCP) insulator. Designed for surface mount installation, it supports a board thickness of 1.5mm and operates within a temperature range of -55°C to +85°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy terminals for reliable conductivity
• Liquid crystal polymer insulation for thermal stability
• Surface mount design compatible with pick-and-place automation

Edgeboard Connectors Applications

• High-density electronic circuit board interconnections
• Industrial control system backplanes
• Telecommunications equipment modules
• Automotive electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest datasheet to ensure compatibility with current manufacturing standards. Confirm that the intended application environment falls within the specified operating temperature range of -55°C to +85°C. Check for any RoHS compliance requirements relevant to your region. Ensure that the PCB footprint matches the recommended land pattern provided in the official drawing. Validate contact plating specifications if harsh environmental conditions are anticipated.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface is required for high-pin-count applications. The 0.60mm pitch allows for dense routing on the mating board. Consider the LCP material properties for high-temperature soldering processes. Evaluate the surface mount orientation against available board space. Compare mechanical retention needs against other series options if vibration resistance is critical.

Edgeboard Connectors Part Context

This part belongs to the Sliver 2.0 series of card edge connectors from TE Connectivity. The series is engineered for high-reliability applications requiring robust electrical connections in compact form factors. The 2327672-2 specifically addresses the need for dual-edge connectivity with standardized dimensions. It complements other parts in the family by offering consistent performance across various pin counts and configurations.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other TE Connectivity Sliver 2.0 series receptacles with matching pin counts and pitch. Verify mechanical dimensions and terminal plating before substitution. Cross-reference with equivalent offerings from other manufacturers only if full dimensional and electrical compatibility is confirmed.
