2327672-3

Edgeboard Connectors Overview

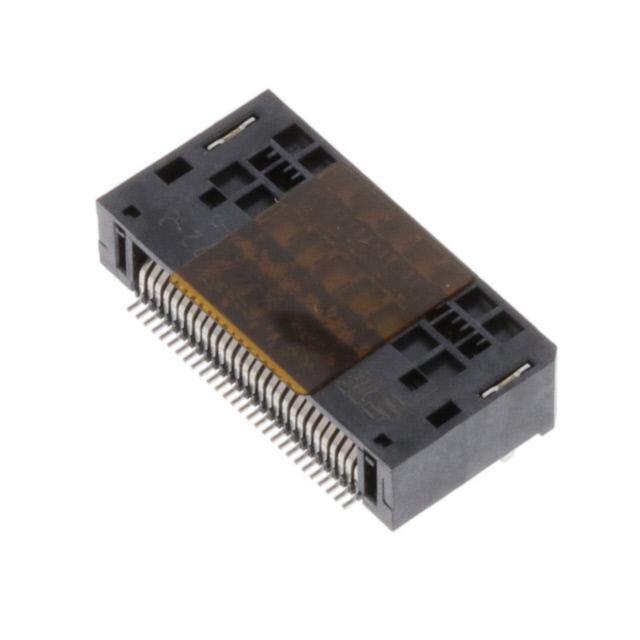

The TE Connectivity AMP Connectors part number 2327672-3 is a standard card edge connector receptacle assembly belonging to the Sliver 2.0 series. It features 56 positions with a 0.6 mm pitch and is designed for right-angle PCB mounting. The contacts are made of copper alloy with gold plating and utilize a solder termination type. The connector supports a board thickness of 1.5 mm and operates within a temperature range of -55°C to 85°C.

Edgeboard Connectors Feature Summary

• Protocol-agnostic multi-lane high-speed design suitable for server and storage applications
• Right-angle surface mount configuration for efficient PCB layout
• Gold-plated copper alloy contacts ensure reliable signal transmission

Edgeboard Connectors Applications

• Server systems
• Storage devices
• High-speed data interconnects

Edgeboard Connectors Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest datasheet to confirm compatibility with current production requirements. Check RoHS compliance status and moisture sensitivity levels prior to ordering, as these attributes may vary by manufacturing batch or regional regulatory standards.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, 56-position card edge connector with 0.6 mm pitch is required. Ensure the mating card thickness aligns with the specified 1.5 mm limit. Confirm that the application environment falls within the -55°C to 85°C operating temperature range and that the high-speed performance characteristics meet system signal integrity needs.

Edgeboard Connectors Part Context

This part belongs to the Sliver 2.0 series, which provides high-density interconnect solutions. The series is engineered for protocol-agnostic high-speed data transmission, making it suitable for demanding computing environments where space efficiency and signal reliability are critical factors in system design.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternative part numbers. Do not assume cross-compatibility with other series without verifying mechanical dimensions, electrical specifications, and mounting configurations.
