Edgeboard Connectors Overview

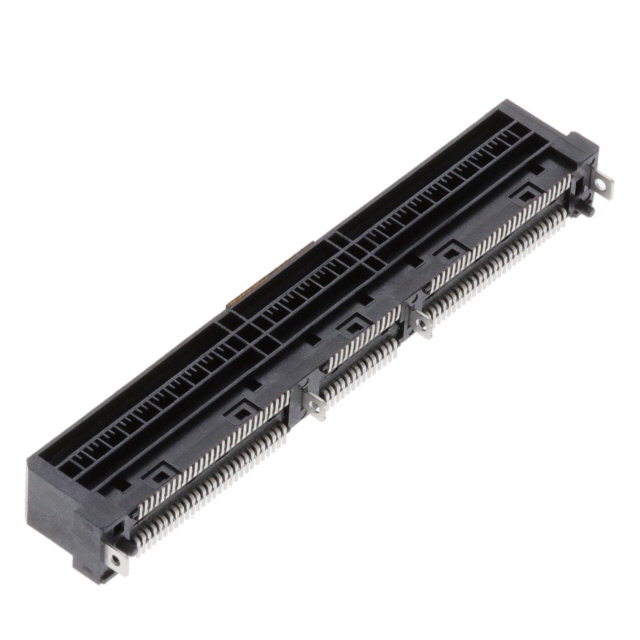

The TE Connectivity AMP Connectors part number 2327677-3 is a standard card edge receptacle assembly belonging to the Sliver 2.0 series. It features 140 positions arranged in a dual-row configuration with a 0.60mm (0.024 inch) contact pitch. The connector utilizes gold-plated copper alloy contacts and a black liquid crystal polymer (LCP) insulator. Designed for vertical surface-mount PCB installation, it supports solder termination and operates within a temperature range of -55°C to +85°C.

Edgeboard Connectors Feature Summary

• Vertical surface-mount design for direct PCB integration
• Gold-plated copper alloy contacts for reliable signal transmission
• Liquid crystal polymer (LCP) insulator for thermal stability

Edgeboard Connectors Applications

• Daughtercard connections
• Board-to-board interconnects
• High-density electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix and packaging quantity against the manufacturer's current datasheet before procurement. Confirm that the component meets the required RoHS compliance status for your region. Ensure compatibility with automated pick-and-place equipment if high-volume manufacturing is planned. Cross-reference the lead time requirements with production schedules to avoid delays.

Edgeboard Connectors Selection Notes

Select this component when a 140-position dual-row interface is required for vertical mounting. The 0.60mm pitch offers high density suitable for compact designs. Verify that the target printed circuit board thickness aligns with the connector's mechanical specifications. Consider the operating temperature range to ensure reliability under expected environmental conditions.

Edgeboard Connectors Part Context

This component is part of the Sliver 2.0 family, which provides high-density interconnect solutions. The series is designed for applications requiring robust performance in space-constrained environments. Related variants may differ in position count or contact plating options while maintaining the same form factor and mounting style.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other 140-position dual-row card edge connectors from TE Connectivity with identical 0.60mm pitch and vertical orientation. Verify mechanical footprint and electrical ratings before substitution. Alternative manufacturers may offer compatible parts but require thorough validation of material properties and termination methods.
