Edgeboard Connectors Overview

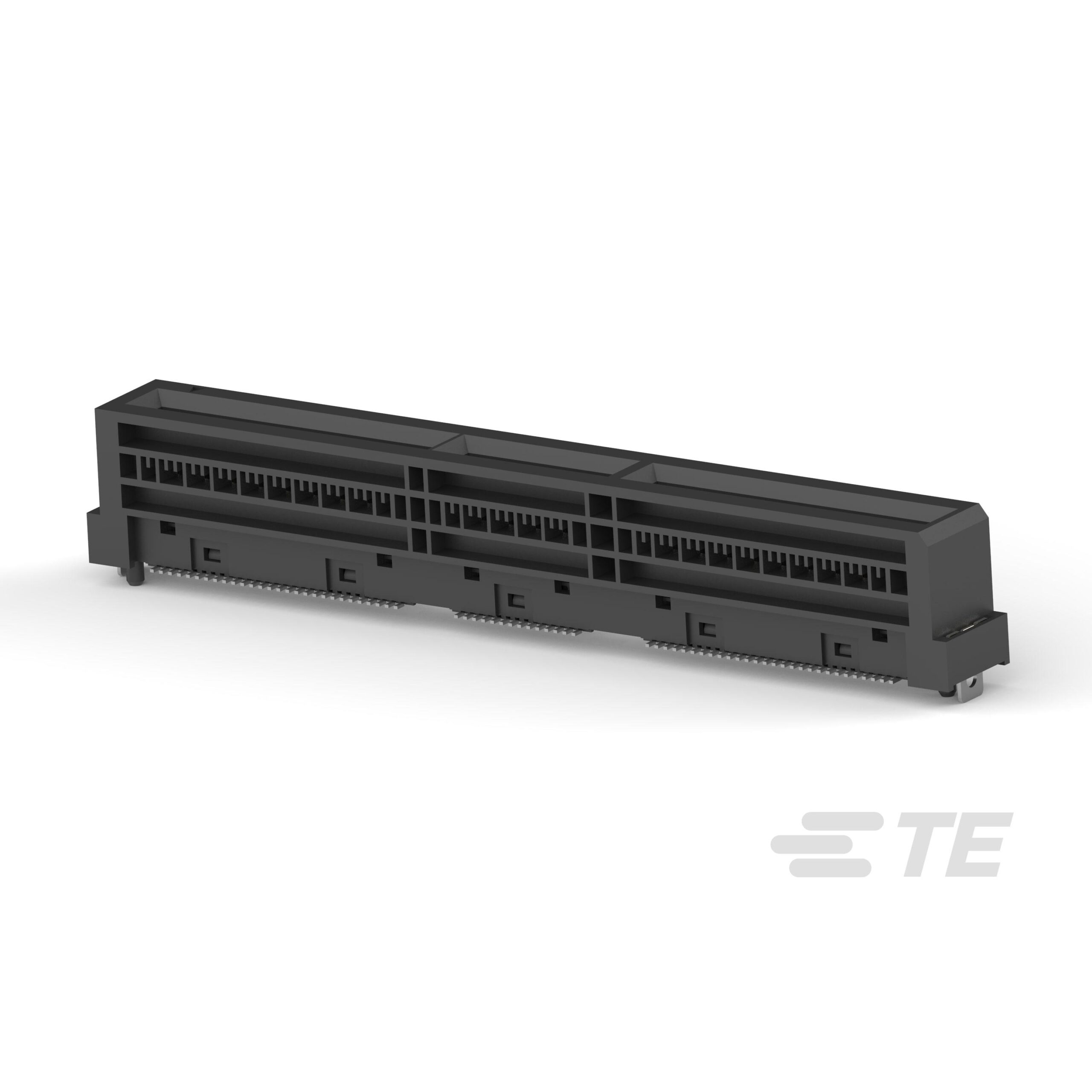

The TE Connectivity AMP Connectors 2327677-7 is a vertical card edge receptacle assembly featuring 140 positions across two rows. It utilizes a 0.024-inch (0.60mm) pitch with gold-plated copper alloy contacts housed in black liquid crystal polymer (LCP). Designed for surface mount termination, this dual-edge connector supports operating temperatures from -55°C to +85°C and is intended for high-speed internal cabled interconnect applications.

Edgeboard Connectors Feature Summary

• Vertical surface mount design for secure PCB integration
• Gold-plated contacts ensure reliable signal transmission
• Dual-edge configuration accommodates specific board thicknesses

Edgeboard Connectors Applications

• High-speed internal cabled interconnects
• Data center equipment connections
• Networking hardware assemblies

Edgeboard Connectors Procurement Notes

Verify the exact suffix designation when ordering, as variations exist within the product family. Confirm that the required quantity aligns with standard packaging constraints provided by the manufacturer. Ensure compatibility with the target board thickness before finalizing procurement decisions to prevent mechanical fit issues during assembly.

Edgeboard Connectors Selection Notes

Select this component when a vertical orientation and dual-edge contact interface are required for high-density signal routing. The LCP insulation material provides stability for demanding thermal environments. Consider the specific pitch requirements and mounting style to ensure seamless integration into the target electronic system architecture.

Edgeboard Connectors Part Context

This part belongs to the Sliver 2.0 series of card edge connectors, engineered for compact, high-performance interconnect solutions. The series emphasizes reliability in dense networking and data processing applications, offering consistent electrical performance through precise manufacturing tolerances and robust contact plating standards.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers: 2327677-3, 2327677-9.
