2327677-8

Edgeboard Connectors Overview

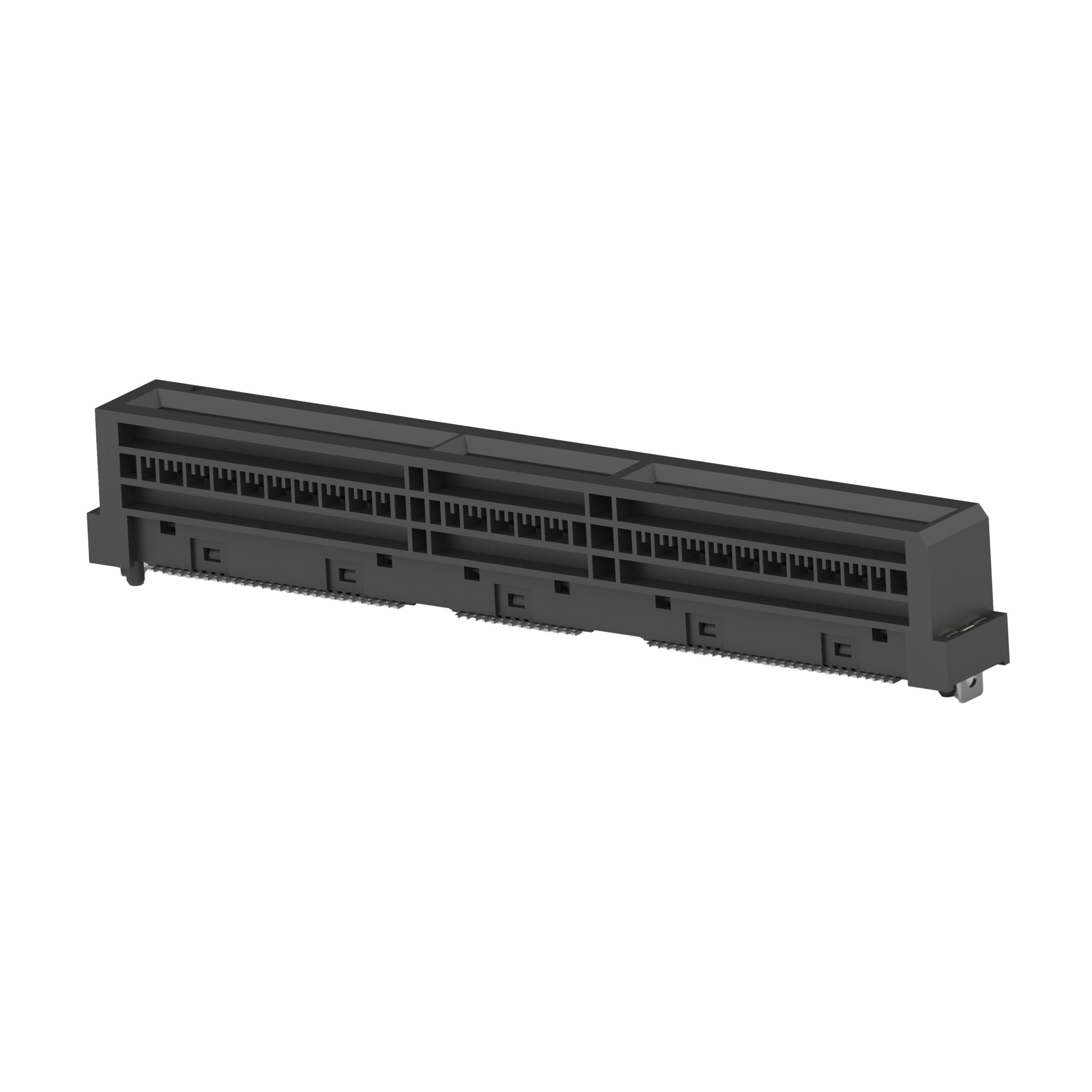

The TE Connectivity AMP Connectors 2327677-8 is a dual-edge card edge connector assembly featuring 140 positions. It utilizes a 0.024-inch (0.60mm) pitch with gold-plated copper alloy contacts for reliable signal transmission. The housing is constructed from black liquid crystal polymer (LCP), supporting a wide operating temperature range of -55°C to 105°C. Designed for surface mount installation, this vertical receptacle includes board guide features and solder retention capabilities to ensure secure placement during pick-and-place processes.

Edgeboard Connectors Feature Summary

• Dual-edge configuration with gold-plated contacts for enhanced conductivity
• Board guide integration for precise alignment during assembly
• Solder retention design ensures stability in pick-and-place operations

Edgeboard Connectors Applications

• Daughtercard connections
• Board-to-board interconnects
• High-density electronic assemblies requiring dual-edge interface

Edgeboard Connectors Procurement Notes

Verify the specific contact plating thickness and material composition against the official datasheet before finalizing procurement decisions. Confirm that the LCP insulation material meets the thermal requirements of your specific application environment. Ensure compatibility with standard surface mount reflow profiles to maintain connector integrity during manufacturing.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count dual-edge solution is required for vertical mounting. Consider the 0.60mm pitch constraint and verify that the PCB layout accommodates the necessary clearance for the board guide features. Evaluate the thermal performance limits of the LCP housing against the operational heat dissipation of the target system to ensure long-term reliability.

Edgeboard Connectors Part Context

This part belongs to the Sliver 2.0 series of card edge connectors, designed for applications demanding high density and reliable electrical connections. It serves as a female receptacle assembly, contrasting with male plug variants. The product line emphasizes precision engineering for automated assembly processes, catering to modern electronics manufacturing standards.

Edgeboard Connectors Replacement Considerations

Consult the manufacturer's cross-reference documentation for verified substitute part numbers. Ensure any alternative maintains the identical 140-position count, 0.60mm pitch, and dual-edge geometry to guarantee mechanical fit and electrical continuity without redesigning the host PCB.
