2327677-9

Edgeboard Connectors Overview

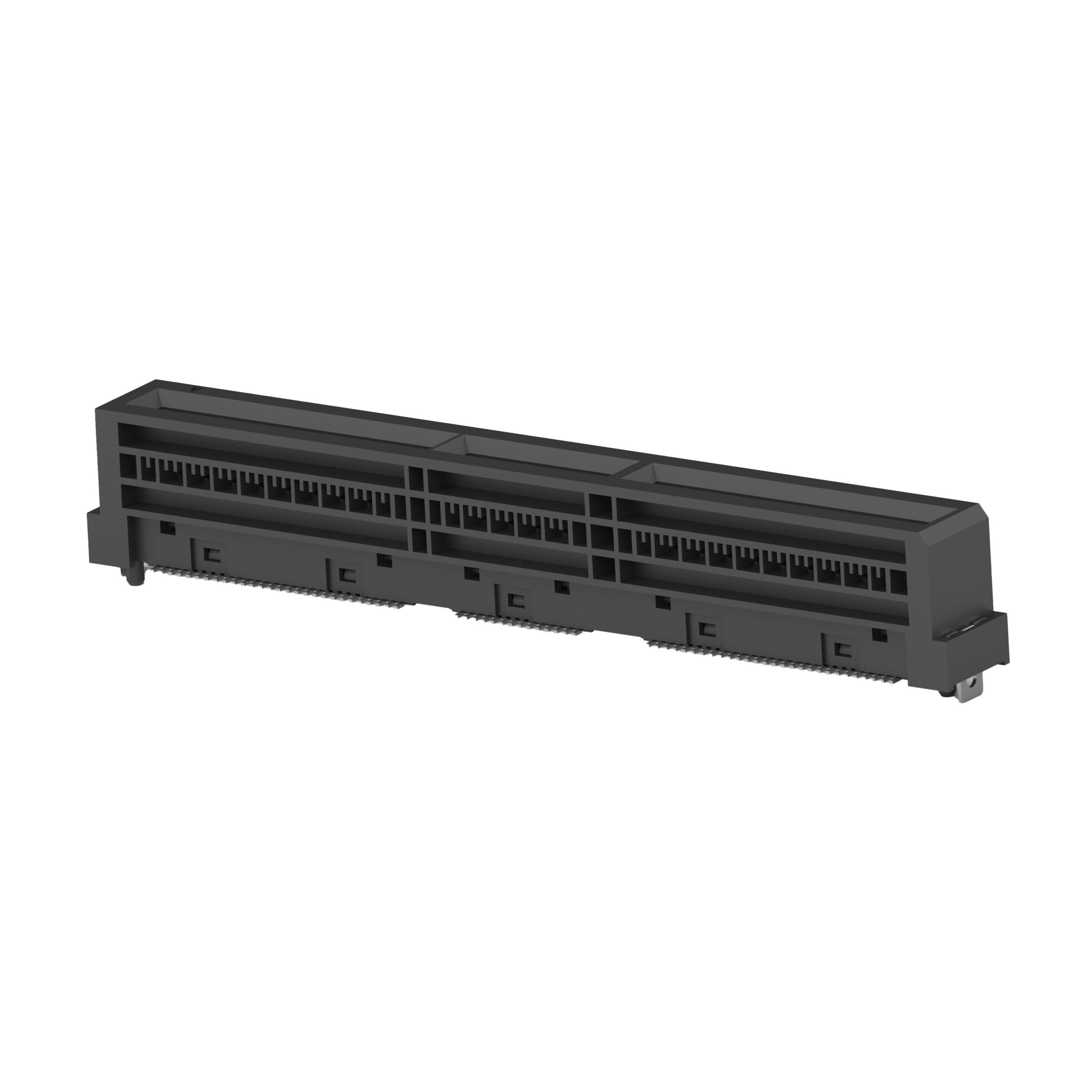

The TE Connectivity AMP Connectors part number 2327677-9 is a vertical receptacle assembly designed for edgeboard applications. It features 140 positions arranged in a dual-edge configuration with a pitch of 0.024 inches (0.60mm). The connector utilizes gold-plated copper alloy contacts and an insulating material suitable for surface mount termination via soldering. Operating temperatures range from -55°C to 105°C, ensuring reliability in demanding electronic environments.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board-to-board or daughtercard connections
• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance
• Vertical orientation facilitates efficient space utilization on printed circuit boards
• Surface mount termination method supports automated pick-and-place manufacturing processes

Edgeboard Connectors Applications

• High-density data communication equipment requiring robust interconnects
• Industrial control systems utilizing edgeboard architectures
• Telecommunications infrastructure components needing stable signal paths
• Computing hardware modules requiring vertical stacking capabilities

Edgeboard Connectors Procurement Notes

Verify the specific suffix designation against official TE Connectivity documentation to confirm exact plating thickness and packaging specifications. Ensure compatibility with existing PCB footprint designs regarding vertical height and pin alignment. Confirm that the selected variant meets all required environmental standards for the intended operational temperature range before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when high-density vertical interconnection is required for edge-mounted circuit boards. Consider the dual-edge design for increased I/O density within constrained spatial limits. Evaluate the solder termination type against available assembly equipment capabilities. Ensure the operating temperature range aligns with the thermal profile of the target application environment.

Edgeboard Connectors Part Context

This component belongs to the Sliver series of standard card edge connectors manufactured by TE Connectivity. The series is engineered for high-reliability applications requiring precise mating forces and consistent electrical performance. It serves as a critical interface element in modern electronics where space efficiency and connection stability are paramount.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternative part numbers. Verify mechanical dimensions and electrical characteristics match the original design requirements before implementing any substitute components.
