Edgeboard Connectors Overview

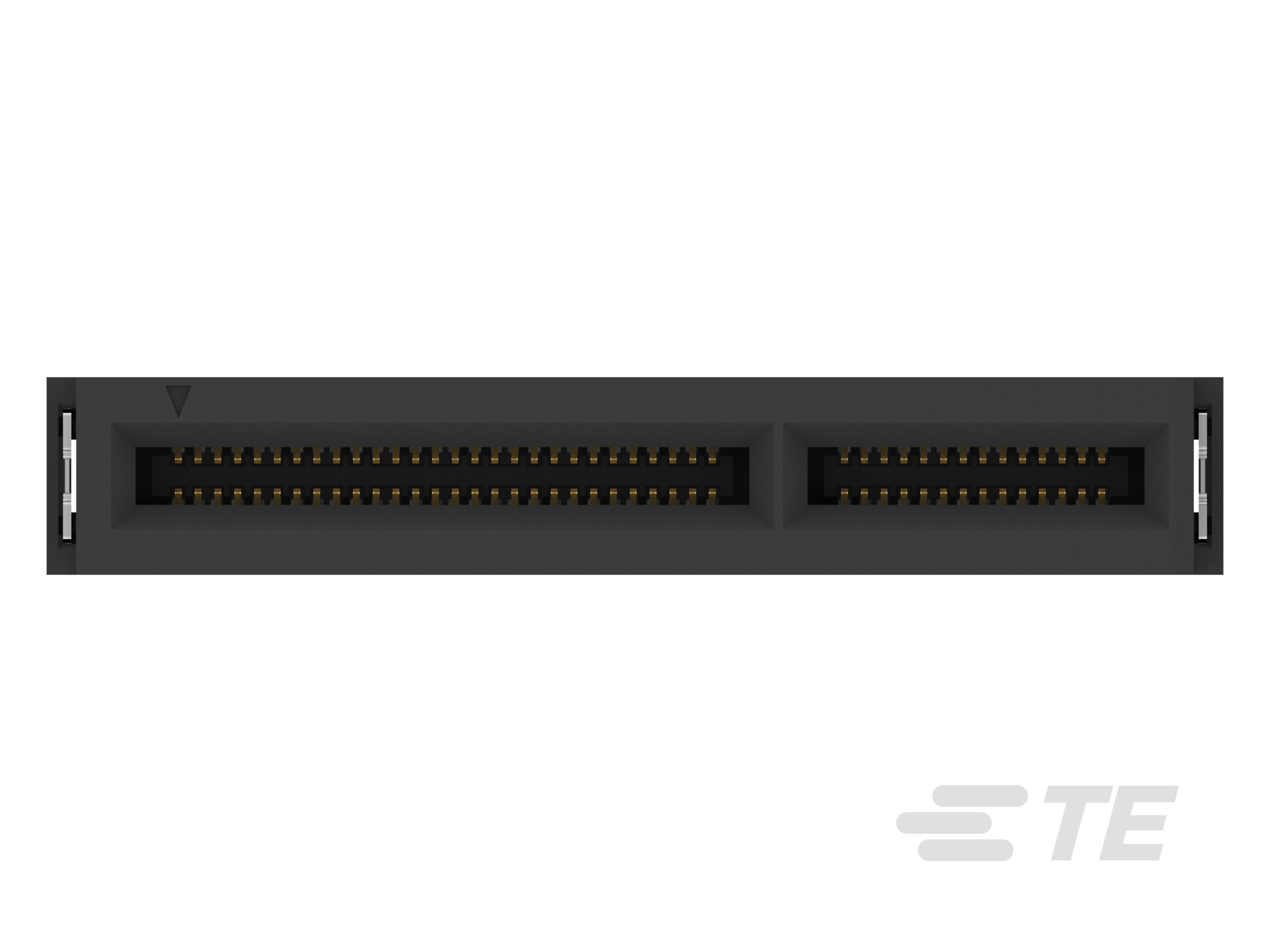

The TE Connectivity 2327678-1 is a standard card edge connector receptacle assembly featuring an 84-position, dual-row configuration with a 0.6 mm pitch. Designed for vertical surface-mount installation via mounting pegs, it utilizes gold-plated copper alloy contacts and a liquid crystal polymer (LCP) housing. The component supports a current rating of 1.1 A and operates within a temperature range of -55°C to +85°C.

Edgeboard Connectors Feature Summary

• Vertical surface-mount design secured by integrated mounting pegs
• Gold-plated copper alloy contacts for reliable signal transmission
• Liquid crystal polymer housing for thermal stability

Edgeboard Connectors Applications

• High-density printed circuit board interconnections
• Industrial control system backplanes
• Telecommunications equipment modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official TE Connectivity documentation to confirm exact plating thickness, housing color, and packaging type. Ensure the selected variant matches the required RoHS compliance status and moisture sensitivity level for the target manufacturing process.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, low-profile vertical interface is required. Confirm that the PCB stack-up accommodates the 0.6 mm pitch and that the mounting peg clearance aligns with the mechanical layout constraints of the enclosure.

Edgeboard Connectors Part Context

This part belongs to the Sliver 2.0 series, designed for applications demanding compact form factors and high reliability. It serves as a robust solution for connecting daughter cards or modules to main systems in space-constrained electronic assemblies.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 84-position, 0.6 mm pitch vertical card edge connectors from TE Connectivity or compatible manufacturers. Verify mechanical footprint compatibility and electrical specifications before substitution.
