2327678-2

Edgeboard Connectors Overview

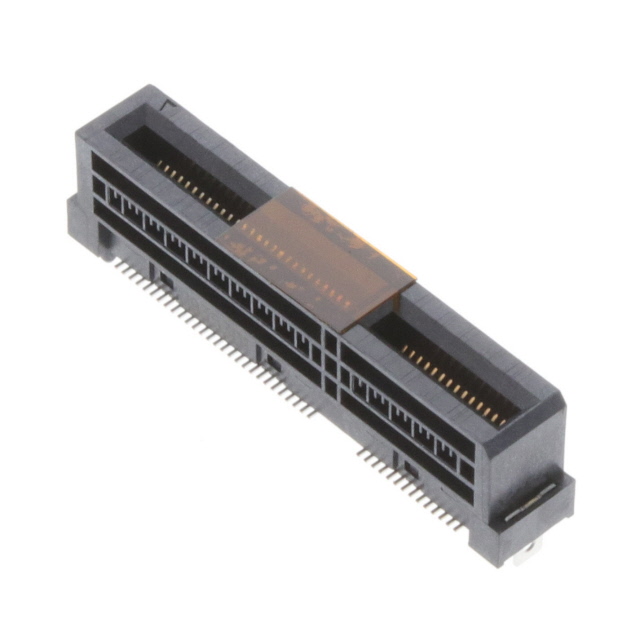

The TE Connectivity AMP Connectors 2327678-2 is a vertical, dual-row card edge receptacle assembly featuring 84 positions with a 0.60mm (0.024 inch) pitch. Designed for surface mount termination via solder, it utilizes gold-plated copper alloy contacts housed in black liquid crystal polymer (LCP). The component supports unassigned double-sided card edges and operates within a temperature range of -55°C to 105°C.

Edgeboard Connectors Feature Summary

• Vertical surface mount design for direct PCB integration
• Gold-plated copper alloy contacts for reliable signal transmission
• Liquid crystal polymer housing for thermal stability
• Compatible with unassigned double-sided card edge boards

Edgeboard Connectors Applications

• High-density board-to-board interconnections
• Daughtercard module connections
• Industrial control system backplanes
• Telecommunications equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm exact contact finish thickness and material specifications. Ensure compatibility with automated pick-and-place equipment due to surface mount requirements. Confirm RoHS compliance status through current manufacturer declarations prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when high pin density is required within a compact vertical footprint. The 0.60mm pitch allows for significant I/O count in limited space. Verify that the target application environment remains within the specified -55°C to 105°C operating range to ensure long-term reliability and performance stability.

Edgeboard Connectors Part Context

This part belongs to the Sliver 2.0 series, which focuses on high-density interconnect solutions. It serves as a specialized variant within the broader 2327678 family, distinguished by its specific position count and termination style. The series targets applications demanding robust mechanical stability and precise electrical performance in constrained form factors.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference pin counts, pitch dimensions, and mounting styles to ensure mechanical and electrical compatibility without redesigning the host PCB layout.
