Edgeboard Connectors Overview

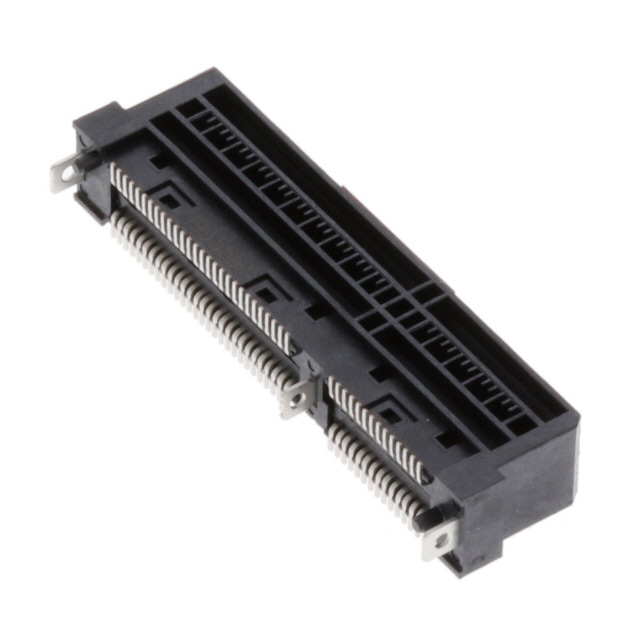

The TE Connectivity AMP Connectors part number 2327678-3 is a vertical receptacle assembly belonging to the Sliver 2.0 series. It features 84 positions arranged in a dual-row configuration with a 0.024-inch (0.60mm) contact pitch. The connector utilizes gold-plated copper alloy contacts and a black liquid crystal polymer (LCP) insulator. Designed for surface mount termination, it supports board thicknesses of 1.5mm and operates within a temperature range of -55°C to 105°C.

Edgeboard Connectors Feature Summary

• High-density interconnect solution utilizing a 0.60mm pitch for compact circuit board layouts
• Robust construction featuring gold-plated copper alloy contacts for reliable signal transmission
• Thermal stability provided by liquid crystal polymer insulation suitable for high-temperature environments

Edgeboard Connectors Applications

• High-density electronic assemblies requiring vertical card edge connections
• Industrial control systems utilizing standard double-sided card edge boards
• Telecommunications infrastructure equipment needing reliable surface mount interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm exact plating thickness and packaging variations. Ensure compatibility with automated pick-and-place equipment specifications. Confirm that the target printed circuit board design matches the required 1.5mm thickness constraint for proper mechanical retention.

Edgeboard Connectors Selection Notes

Select this component when a vertical orientation is required for an 84-position interface. The 0.60mm pitch allows for higher density compared to standard 1.27mm connectors. Verify that the application environment remains within the specified -55°C to 105°C operating range to ensure material integrity.

Edgeboard Connectors Part Context

This component is part of the Sliver 2.0 family, designed for high-reliability applications. It serves as a vertical receptacle for mating with standard double-sided card edge connectors. The series emphasizes low profile and robust mechanical locking for demanding industrial and commercial environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other TE Connectivity 2327678 series variants such as 2327678-1 or 2327678-7, provided they match the 84-position count and vertical mounting style. Cross-brand replacements require strict adherence to the 0.60mm pitch and 1.5mm board thickness constraints.
