Edgeboard Connectors Overview

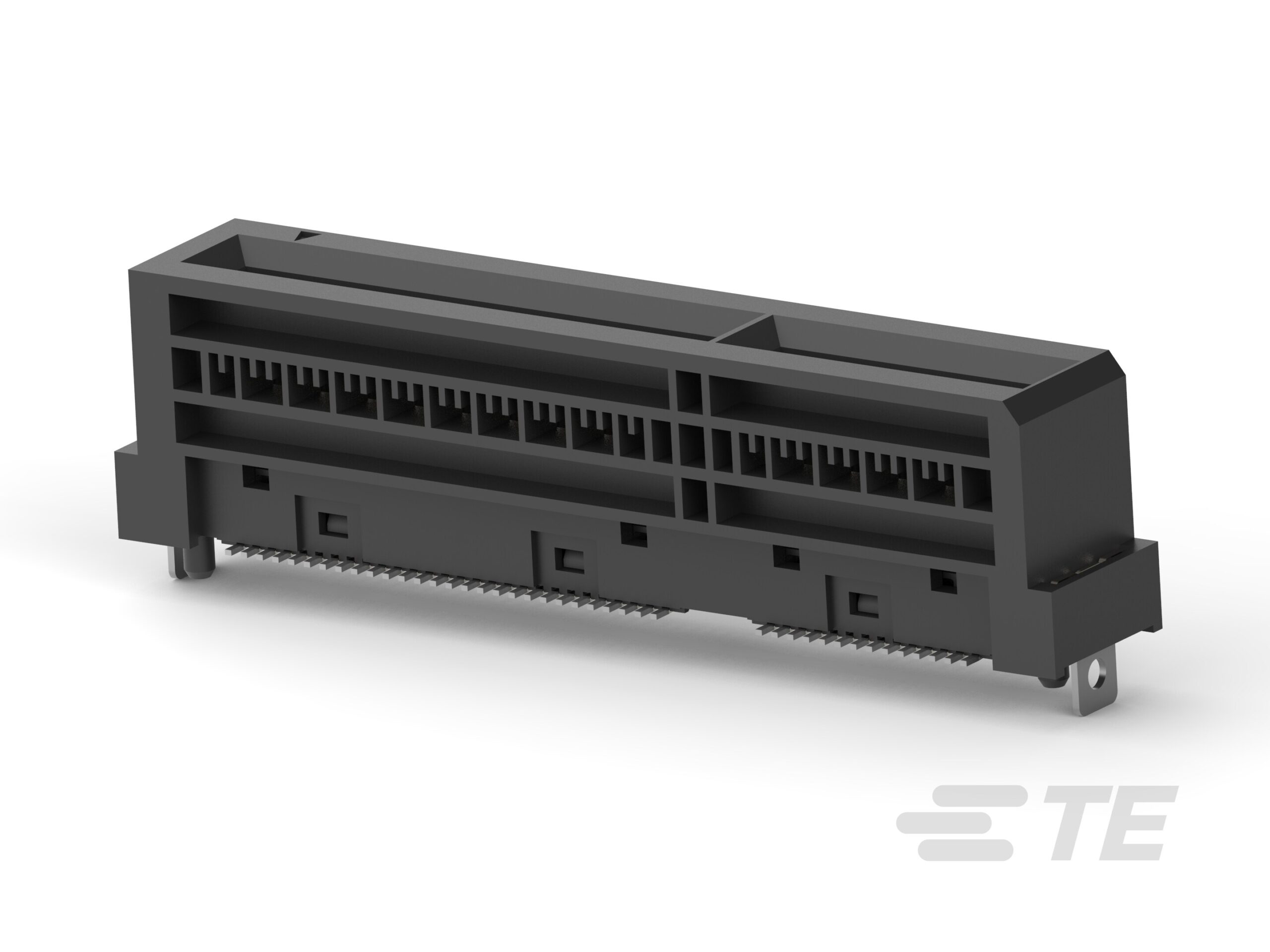

The TE Connectivity AMP Connectors part number 2327678-6 is a vertical receptacle assembly designed for edge board applications. It features 84 positions arranged in a dual-row configuration with a 0.024-inch (0.60mm) pitch. The connector utilizes gold-plated copper alloy contacts and a black liquid crystal polymer (LCP) insulator. It is specified for non-specified dual-edge cards and supports surface mount termination via soldering.

Edgeboard Connectors Feature Summary

• Vertical surface mount design for direct PCB integration
• Gold-plated contacts ensure reliable signal transmission
• Dual-edge card compatibility for flexible board connections

Edgeboard Connectors Applications

• High-density board-to-board interconnects
• Daughtercard module connections
• Internal I/O interface assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest documentation to ensure compatibility with current production requirements. Confirm that the surface mount footprint matches the intended PCB layout. Check for any recent product change notifications that may affect material composition or mechanical dimensions prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, low-profile vertical connection is required for dual-edge cards. Ensure the mating card thickness aligns with the connector's tolerance specifications. Consider the operating temperature range and environmental conditions of the application to confirm the LCP material suitability for long-term reliability.

Edgeboard Connectors Part Context

This component belongs to the Sliver 2.0 series, which is engineered for small form factor internal I/O connectors. The series emphasizes high density and reliable performance in compact electronic systems. It serves as a critical interconnect solution for modern computing and communication hardware requiring robust board-level connectivity.

Edgeboard Connectors Replacement Considerations

Compatible variants within the same series include part numbers such as 2327678-1, 2327678-3, and 2327678-7. These alternatives share similar mechanical and electrical characteristics but may differ in packaging or specific contact plating thickness. Verify pin count and pitch consistency before substitution.
