2327678-8

Edgeboard Connectors Overview

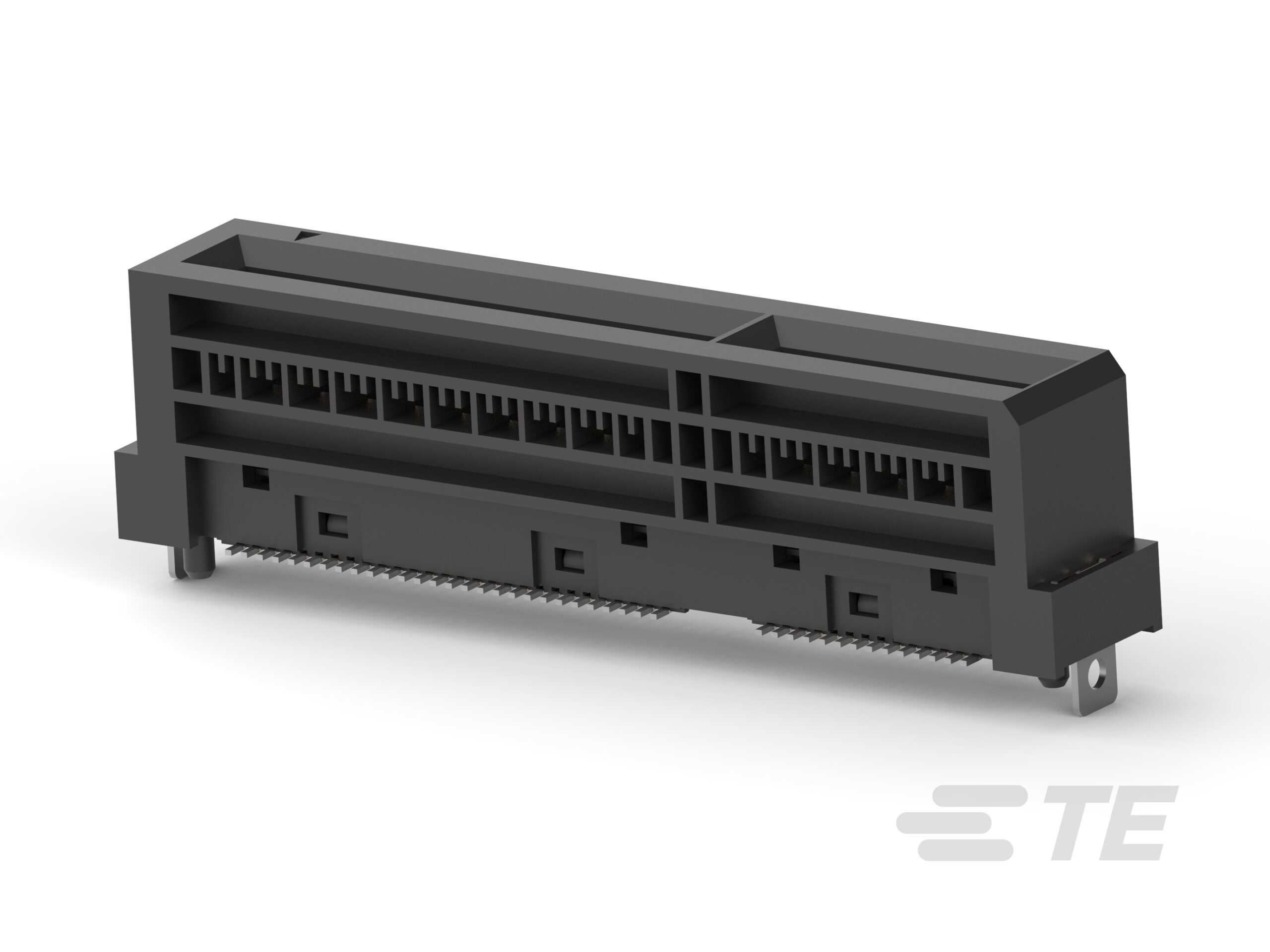

The TE Connectivity AMP Connectors part number 2327678-8 is a vertical card edge receptacle assembly belonging to the Sliver 2.0 series. It features 84 positions arranged in a dual-row configuration with a 0.024-inch (0.60mm) pitch. The connector utilizes gold-plated copper alloy contacts housed within a black liquid crystal polymer (LCP) insulator. Designed for surface mount installation, it supports pick-and-place automation and includes board guide features for precise alignment during soldering.

Edgeboard Connectors Feature Summary

• Vertical orientation designed for high-speed internal cabled interconnect applications
• Gold-plated contacts ensure reliable signal transmission in demanding environments
• Integrated board guide and solder retention features facilitate automated assembly

Edgeboard Connectors Applications

• Data center equipment interconnects
• Networking hardware assemblies
• High-speed internal cabled connections

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized TE Connectivity distributors or verified supply chain channels. Confirm RoHS compliance status and specific packaging quantities prior to order placement. Ensure storage conditions meet moisture sensitivity level requirements to maintain solderability and contact integrity throughout the manufacturing process.

Edgeboard Connectors Selection Notes

Select this component when high-density vertical interconnection is required for data center or networking infrastructure. The 0.60mm pitch allows for compact board layouts while maintaining signal integrity. Verify that the mating card edge thickness and plating specifications align with the connector's design parameters to ensure proper mechanical engagement and electrical performance.

Edgeboard Connectors Part Context

This receptacle is part of the Sliver 2.0 family, engineered for dense electronic assemblies. It serves as a critical interface between circuit boards and cable harnesses in modern telecommunications and computing systems. The robust LCP housing provides thermal stability and chemical resistance suitable for industrial and commercial electronics manufacturing.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include part numbers 2327678-1 and 2327678-7 from the same manufacturer series. These alternatives share similar physical dimensions and contact configurations but may differ in specific packaging or minor material variations. Always validate pinout compatibility and mounting hole alignments before implementation.
