Edgeboard Connectors Overview

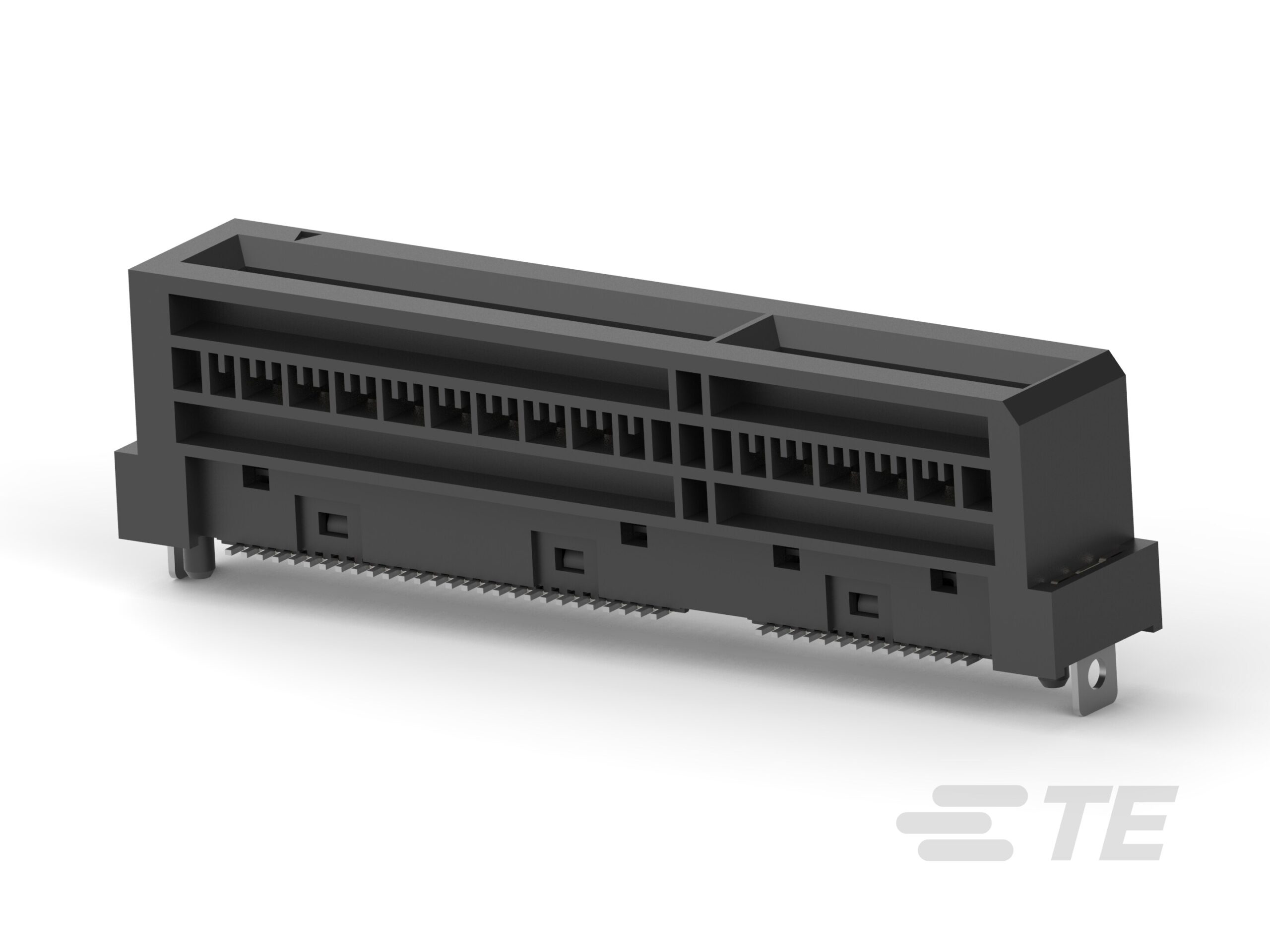

The TE Connectivity AMP Connectors part number 2327678-9 is an 84-position female card edge connector belonging to the Sliver 2.0 series. It features a vertical, dual-edge design with a 0.024-inch (0.60mm) pitch. The connector utilizes gold-plated copper alloy contacts and a black liquid crystal polymer (LCP) insulator. Designed for surface mount termination via soldering, it operates within a temperature range of -55°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge receptacle assembly designed for high-density electronic applications
• Vertical mounting configuration compatible with pick-and-place automation
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Liquid crystal polymer insulation provides thermal stability

Edgeboard Connectors Applications

• High-density internal I/O interconnects
• SFF-TA-1002 compliant system architectures
• Surface mount board-to-board connections

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized TE Connectivity channels or certified distributors. Confirm that the received parts match the specific 2327678-9 designation and Sliver 2.0 series requirements. Ensure storage conditions maintain moisture sensitivity level integrity prior to reflow soldering processes.

Edgeboard Connectors Selection Notes

Select this component when a vertical, dual-edge female connector with a 0.60mm pitch is required. The 84-position count suits dense circuit layouts. Verify compatibility with existing PCB footprint dimensions and soldering profiles suitable for surface mount technology and LCP material properties.

Edgeboard Connectors Part Context

This component is part of the Sliver 2.0 family, engineered for miniature wire-to-board and wire-to-wire interconnect solutions. It serves as a specialized receptacle assembly within TE Connectivity's portfolio, focusing on high-density connectivity needs in compact electronic systems.

Edgeboard Connectors Replacement Considerations

Direct substitute part numbers are not explicitly confirmed in the provided documentation. Evaluate alternative connectors based on matching pitch, position count, and termination method only after verifying full mechanical and electrical compatibility.
