Edgeboard Connectors Overview

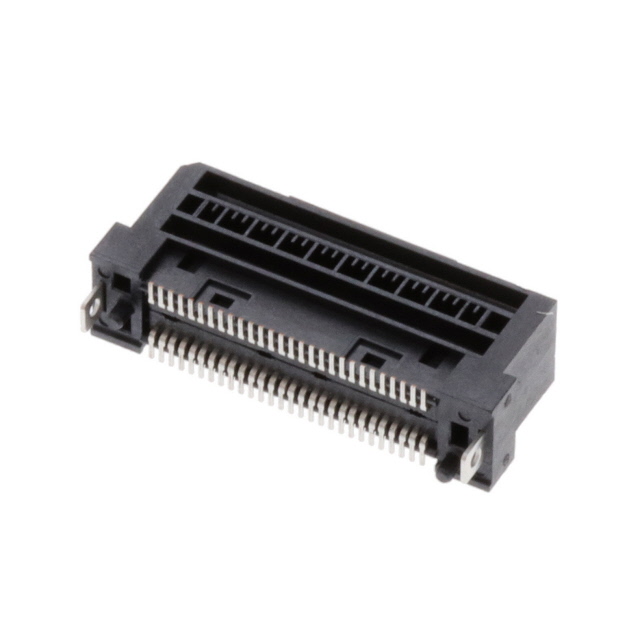

The TE Connectivity AMP Connectors part number 2327679-2 is a dual-edge card edge connector designed for surface mount assembly. It features 56 positions arranged in two rows with a pitch of 0.024 inches (0.60mm). The connector utilizes female contacts with a gold plating thickness of 15.0µin (0.38µm) over a copper alloy base. Constructed from black liquid crystal polymer (LCP), it supports a maximum board thickness of 0.062 inches (1.57mm). The component operates within a temperature range of -55°C to 85°C and is supplied in tape and reel packaging.

Edgeboard Connectors Feature Summary

• Dual-edge configuration provides high-density interconnect capability for non-specified cards
• Surface mount termination ensures secure placement and reliable solder joint formation
• Gold-plated contacts offer corrosion resistance and stable signal transmission

Edgeboard Connectors Applications

• High-density electronic assemblies requiring vertical card insertion
• Industrial control systems utilizing modular circuit boards
• Telecommunications infrastructure equipment
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific contact finish thickness and operating temperature range against the latest manufacturer datasheet before integration. Confirm that the selected tape and reel quantity aligns with production volume requirements. Ensure compatibility with automated pick-and-place equipment specifications. Cross-reference the RoHS compliance status with current environmental regulations applicable to the target market.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge interface with a 0.60mm pitch is required for surface mounting. The 56-position count suits applications needing moderate I/O density in a compact footprint. Verify that the host PCB design accommodates the specified board thickness limit. Consider the thermal performance limits relative to the operational environment of the final assembly.

Edgeboard Connectors Part Context

This connector belongs to the Sliver 2.0 series, which focuses on space-saving designs for dense electronic environments. The series emphasizes reliability through robust LCP insulation and precise contact geometry. It serves as a critical interconnect solution in modern miniaturized hardware architectures where vertical stacking and high pin counts are essential.

Edgeboard Connectors Replacement Considerations

Consult official substitution lists for direct equivalents. Generic alternatives may differ in contact material or insulation properties.
