2327679-3

Edgeboard Connectors Overview

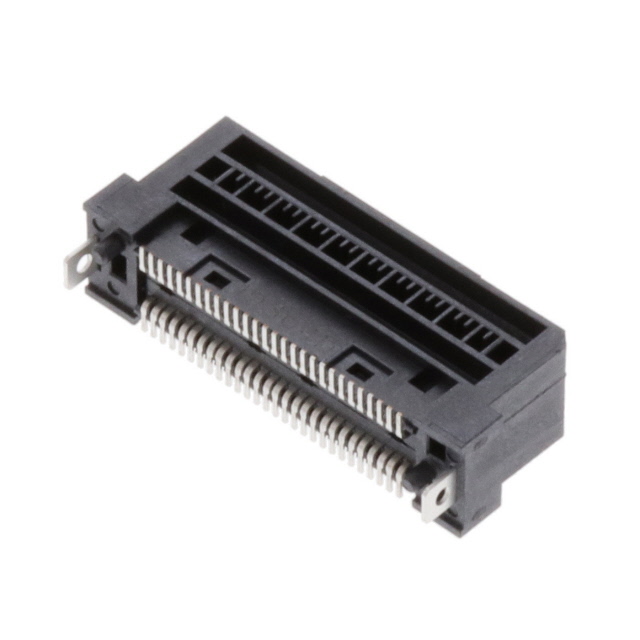

The TE Connectivity AMP Connectors part number 2327679-3 is a vertical edge connector from the Sliver 2.0 series, designed for surface mount installation. It features a dual female configuration with 56 positions arranged in two rows. The connector utilizes a 0.024-inch (0.60mm) pitch and employs a solder termination method. Constructed with copper alloy contacts featuring gold plating and a liquid crystal polymer (LCP) insulator, it supports a card thickness of 0.062 inches (1.57mm). The component operates within a temperature range of -55°C to 85°C.

Edgeboard Connectors Feature Summary

• Vertical orientation design facilitates direct PCB edge insertion
• Dual row female contact arrangement ensures secure board retention
• Gold-plated copper alloy contacts provide reliable signal transmission
• Liquid crystal polymer insulation offers thermal stability

Edgeboard Connectors Applications

• High-density internal input/output interconnects
• Small form factor compliant system architectures
• Server blade edge connections
• Industrial control board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm exact pin count and plating specifications. Ensure compatibility with target PCB edge card dimensions and mounting requirements. Confirm RoHS compliance status through current manufacturer datasheets prior to integration.

Edgeboard Connectors Selection Notes

Select this component for applications requiring high-density vertical edge connectivity with surface mount capabilities. Evaluate the 0.60mm pitch against available routing space. Consider the operating temperature range and mechanical retention features when designing the host system enclosure.

Edgeboard Connectors Part Context

This component belongs to the Sliver 2.0 family, which focuses on compact, high-reliability interconnect solutions. The series is engineered to meet Small Form Factor standards, providing robust electrical performance in constrained physical spaces typical of modern electronic assemblies.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult TE Connectivity technical support for verified equivalent components if obsolescence occurs.
