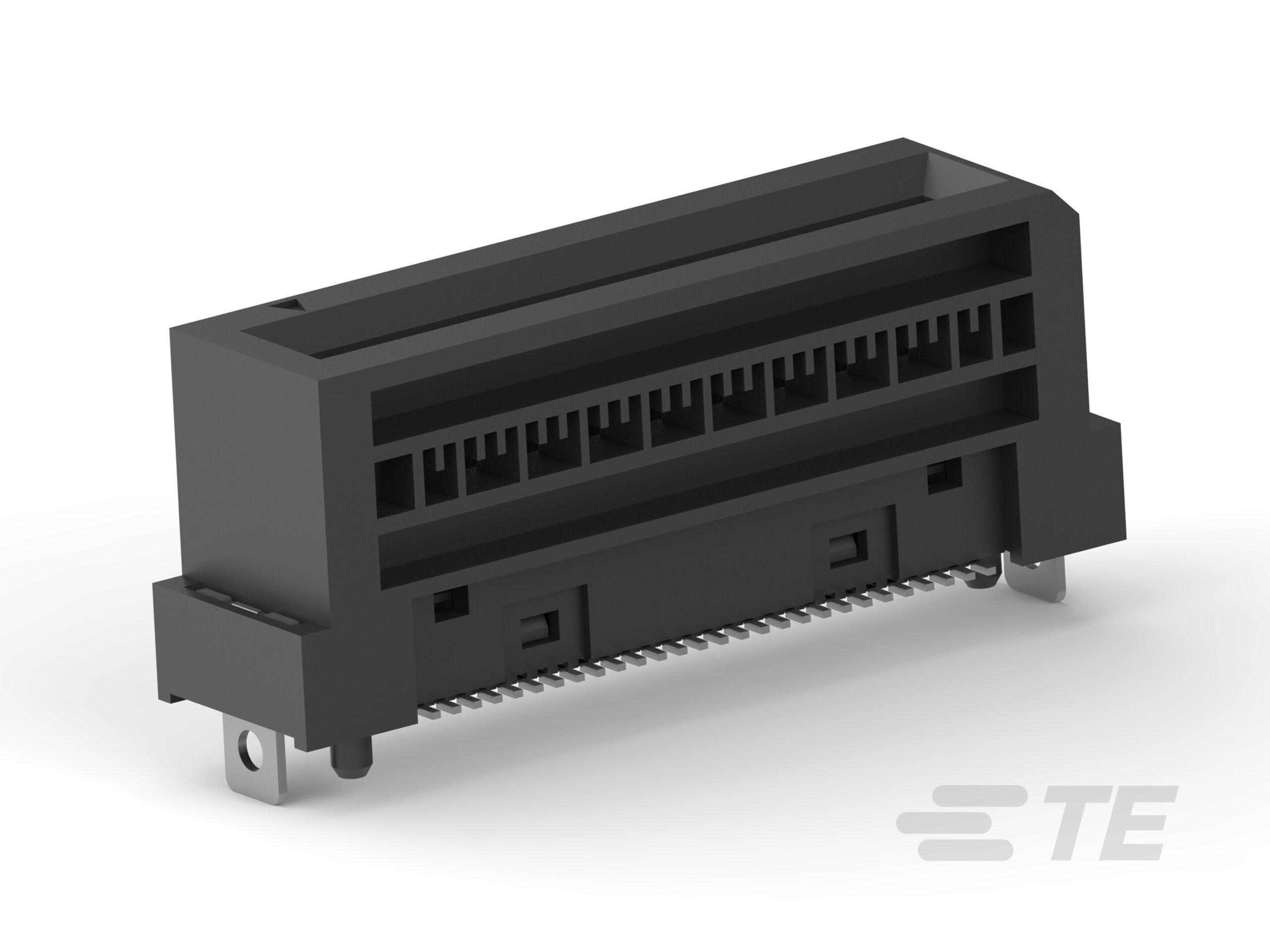

2327679-6

$5.70

Description：RECEPTACLE ASSY, 56 POS, VERT, G
Series：Sliver 2.0
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:77e4e519796e Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2327679-6 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is RECEPTACLE ASSY, 56 POS, VERT, G. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2327679-6

Description：RECEPTACLE ASSY, 56 POS, VERT, G
Series：Sliver 2.0
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：28
Number of Positions：56
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.024" (0.60mm)
Read Out：Dual
Features：Board Guide, Pick and Place, Solder Retention
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-55°C ~ 105°C

Edgeboard Connectors datasheet and documents for 2327679-6

2327679-6

Edgeboard Connectors Overview

The TE Connectivity AMP Connectors part number 2327679-6 is a vertical receptacle assembly belonging to the Sliver 2.0 series. It features 56 positions designed for dual-edge card applications with a pitch of 0.024 inches (0.60mm). The connector utilizes surface mount termination and includes board rail guides for pick-and-place handling and solder retention. Constructed from liquid crystal polymer (LCP) insulation with copper alloy contacts, it supports an operating temperature range of -55°C to 85°C.

Edgeboard Connectors Feature Summary

Vertical receptacle design for edgeboard mounting
Dual-edge configuration for signal routing
Board rail integration for automated assembly

Edgeboard Connectors Applications

High-density backplane interconnects
Telecommunications infrastructure equipment
Industrial control systems requiring robust edge connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix designation against official TE Connectivity documentation to confirm exact contact plating specifications and material certifications. Ensure that the procurement source provides valid traceability records consistent with the manufacturer's quality standards for this component series.

Edgeboard Connectors Selection Notes

Select this component when a vertical, dual-edge receptacle with 56 positions is required for high-density applications. Confirm compatibility with the mating card thickness of 0.062 inches and verify that the surface mount package type aligns with the target PCB manufacturing capabilities.

Edgeboard Connectors Part Context

This component is part of the Sliver 2.0 family, which offers compact interconnect solutions for demanding environments. The series is characterized by high pin counts in small form factors, utilizing LCP materials for thermal stability and reliable performance in complex electronic assemblies.
