Edgeboard Connectors Overview

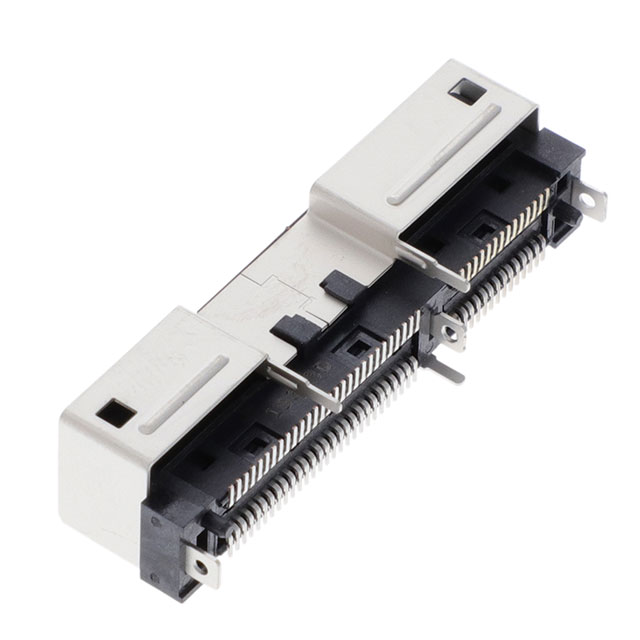

The TE Connectivity AMP Connectors part number 2331813-2 is an 84-position female card edge connector from the Sliver 2.0 series. It features a dual-edge configuration with a 0.024-inch (0.60mm) contact pitch. The contacts are gold-plated copper alloy terminals designed for reliable signal transmission. The housing is constructed from black liquid crystal polymer (LCP), providing high thermal stability and dimensional precision. This surface-mount component supports pick-and-place assembly and offers solder retention capabilities for automated manufacturing processes.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for board-to-board interconnection
• Gold-plated copper alloy terminals ensure low contact resistance and durability
• Liquid crystal polymer housing provides high heat resistance and structural integrity
• Surface mount design facilitates automated pick-and-place assembly

Edgeboard Connectors Applications

• High-density electronic assemblies requiring dual-edge connectivity
• Industrial control systems utilizing surface mount technology
• Telecommunications equipment with strict thermal requirements
• Automotive electronics modules needing robust signal interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official TE Connectivity documentation to confirm exact plating thickness and material specifications. Ensure compatibility with existing PCB footprint designs, as minor dimensional variations may exist between production batches. Confirm RoHS compliance status through current manufacturer certificates prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when high-density dual-edge connectivity is required in space-constrained applications. The LCP material selection is critical for environments involving high reflow temperatures or sustained operational heat. Evaluate the 0.60mm pitch against available routing density needs. Consider the gold plating for long-term reliability in corrosive or high-cycle switching scenarios compared to tin alternatives.

Edgeboard Connectors Part Context

This connector belongs to the Sliver 2.0 family, which emphasizes miniaturization and high-performance signal integrity. The series is engineered for modern electronics demanding compact form factors without sacrificing electrical performance. It complements other components in the TE Connectivity portfolio by offering standardized mounting solutions for complex multi-layer circuit boards.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not explicitly documented in the provided source data. Verify cross-references directly with TE Connectivity engineering support to identify equivalent models with matching mechanical and electrical characteristics.
