Edgeboard Connectors Overview

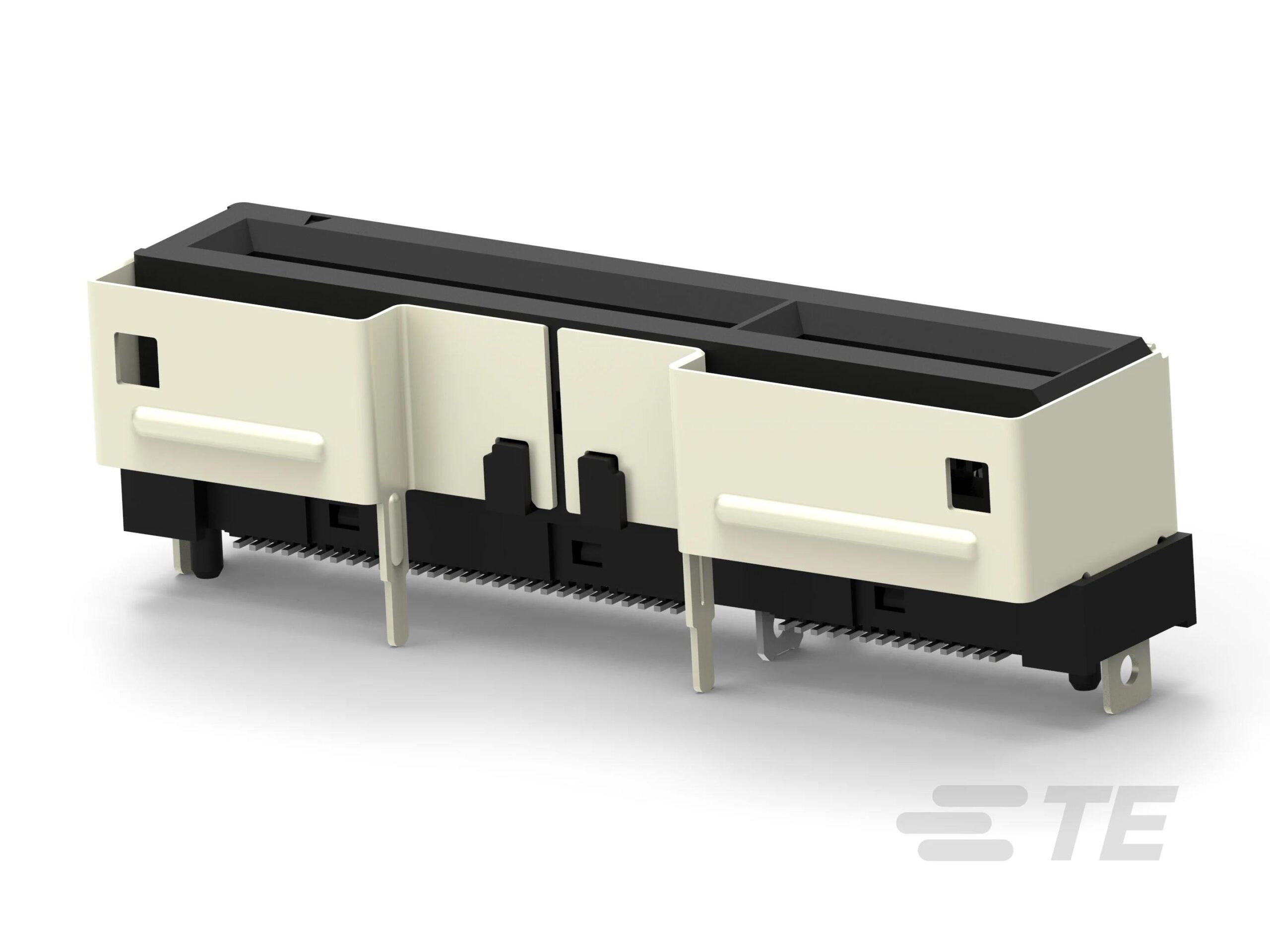

The TE Connectivity AMP Connectors part number 2331813-3 is a cable receptacle assembly designed for high-density interconnect applications. This component features an 84-position configuration with female contacts arranged in a dual-edge layout. It utilizes a vertical mounting style suitable for surface mount technology, ensuring secure attachment to the printed circuit board. The connector operates within a temperature range of -55°C to 105°C and supports a card thickness of 0.062 inches (1.57mm).

Edgeboard Connectors Feature Summary

• Vertical surface mount construction for direct board integration.
• Dual-edge contact design accommodating non-specified cards.
• Gold-plated copper alloy contacts for reliable signal transmission.
• LCP insulation material providing thermal stability.

Edgeboard Connectors Applications

• Gen-Z internal I/O interconnects.
• SFF-TA-1002 compliant systems.
• High-speed data transfer modules.

Edgeboard Connectors Procurement Notes

Verify that the specific variant matches the required vertical orientation and dual-edge contact configuration. Confirm compatibility with the target PCB footprint and ensure the gold plating specification meets the application's conductivity requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a high-pin-count, dual-edge interface is required for vertical board mounting. Ensure the system design accommodates the specified 0.60mm pitch and that the operating environment falls within the -55°C to 105°C thermal range for optimal performance.

Edgeboard Connectors Part Context

This component belongs to the Sliver 2.0 series by TE Connectivity, which specializes in compact, high-density connectors. The 2331813-3 variant specifically addresses the needs for vertical cable-to-board connections in space-constrained electronic assemblies requiring robust mechanical retention.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers. Generic equivalents may not match the precise dual-edge geometry or LCP material specifications required for Gen-Z compliance.
