Edgeboard Connectors Overview

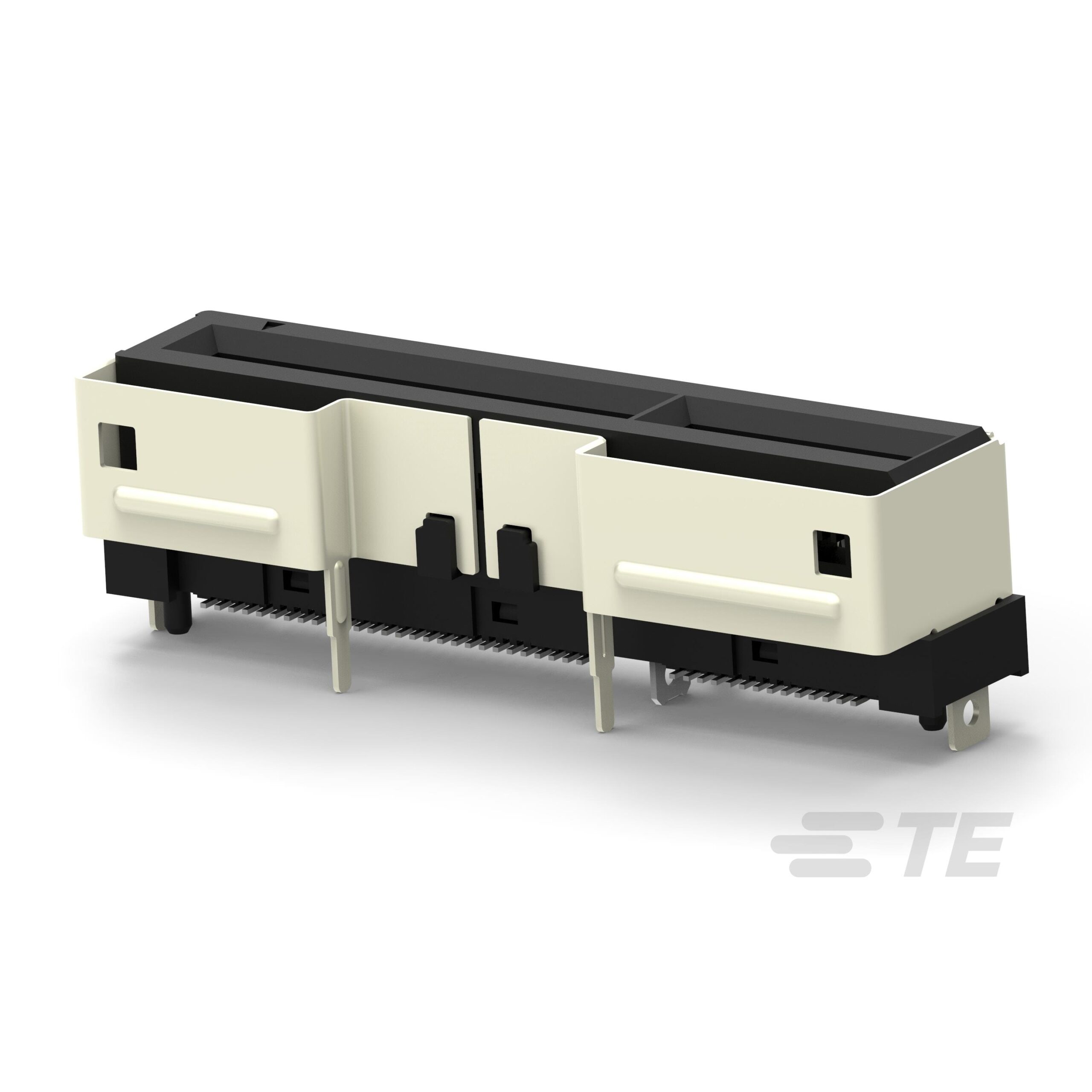

The TE Connectivity AMP Connectors part number 2331813-5 is a standard card edge connector assembly designed for vertical cable mounting. It features an 84-position female contact configuration with dual-edge connectivity. The connector utilizes a 0.024-inch (0.60mm) pitch and gold-plated contacts housed in a black insulator.

Edgeboard Connectors Feature Summary

• Vertical cable mount assembly design
• Dual-edge female contact interface
• Gold-plated contact surfaces

Edgeboard Connectors Applications

• High-density board-to-board interconnects
• Industrial control system backplanes
• Telecommunications equipment modules

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version to confirm compliance with current environmental directives. Ensure that the vertical orientation matches the mechanical constraints of the target assembly. Confirm that the 84-position count aligns with the required signal routing density before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, vertically oriented connection is required. The dual-edge architecture supports increased bandwidth compared to single-sided alternatives. Verify that the PCB thickness accommodates the specified 0.024-inch pitch without mechanical interference during insertion.

Edgeboard Connectors Part Context

This connector belongs to the Sliver 2.0 series, which focuses on compact form factors for dense electronic applications. The series provides reliable signal transmission through standardized dimensions. It serves as a critical interconnect solution within larger modular hardware systems requiring robust physical stability.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available.
