2331813-7

$8.61

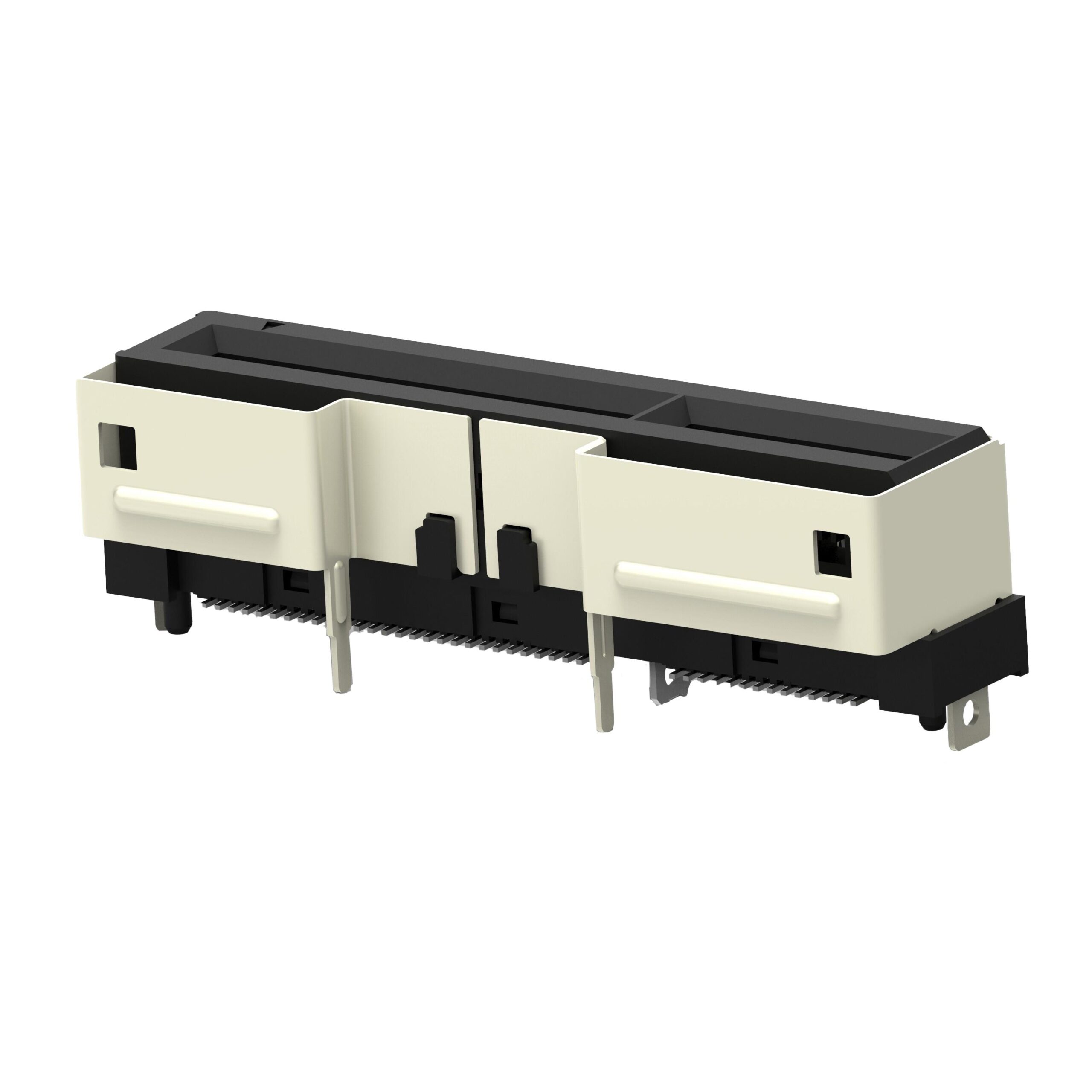

Description：CABLE REC ASSY, 84 P, VERT, SLIV
Series：Sliver 2.0
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1d5e81d07fd3 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2331813-7 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CABLE REC ASSY, 84 P, VERT, SLIV. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2331813-7

Description：CABLE REC ASSY, 84 P, VERT, SLIV
Series：Sliver 2.0
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：14; 28
Number of Positions：84
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.024" (0.60mm)
Read Out：Dual
Features：Board Guide, Pick and Place, Solder Retention
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：Flash
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-55°C ~ 85°C

Edgeboard Connectors datasheet and documents for 2331813-7

2331813-7

Edgeboard Connectors Overview

The TE Connectivity AMP Connectors part number 2331813-7 is a cable receptacle assembly designed for standard card edge applications. This component features an 84-position configuration with a vertical orientation and a silver-colored finish. The connector utilizes a dual-edge interface design, accommodating a contact pitch of 0.024 inches (0.60mm). It is constructed as a female connector suitable for mating with corresponding card edge boards.

Edgeboard Connectors Feature Summary

Vertical cable receptacle assembly for standard card edge connections
Dual-edge interface design with 84 positions
Silver-plated contacts for reliable signal transmission

Edgeboard Connectors Applications

Industrial control systems requiring high-density interconnects
Telecommunications equipment backplanes
Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific RoHS compliance status and lead times directly with authorized distributors or the manufacturer, as availability may vary. Confirm that the vertical orientation and dual-edge specifications match the target PCB layout requirements before finalizing procurement orders to ensure mechanical compatibility.

Edgeboard Connectors Selection Notes

Select this component when a vertical, high-pin-count solution is required for card edge applications. Ensure the mating board supports the 0.024-inch pitch and dual-edge geometry. Consider environmental factors such as operating temperature and mechanical stress during installation to determine if additional strain relief or housing options are necessary for the specific application.

Edgeboard Connectors Part Context

This part belongs to the standard card edge connector family from TE Connectivity AMP Connectors. It serves as a cable receptacle assembly, distinct from header or through-hole variants. The 84-position count places it in the high-density category within its series, offering significant I/O capabilities in a compact vertical form factor for system integration.
