2331813-9

Edgeboard Connectors Overview

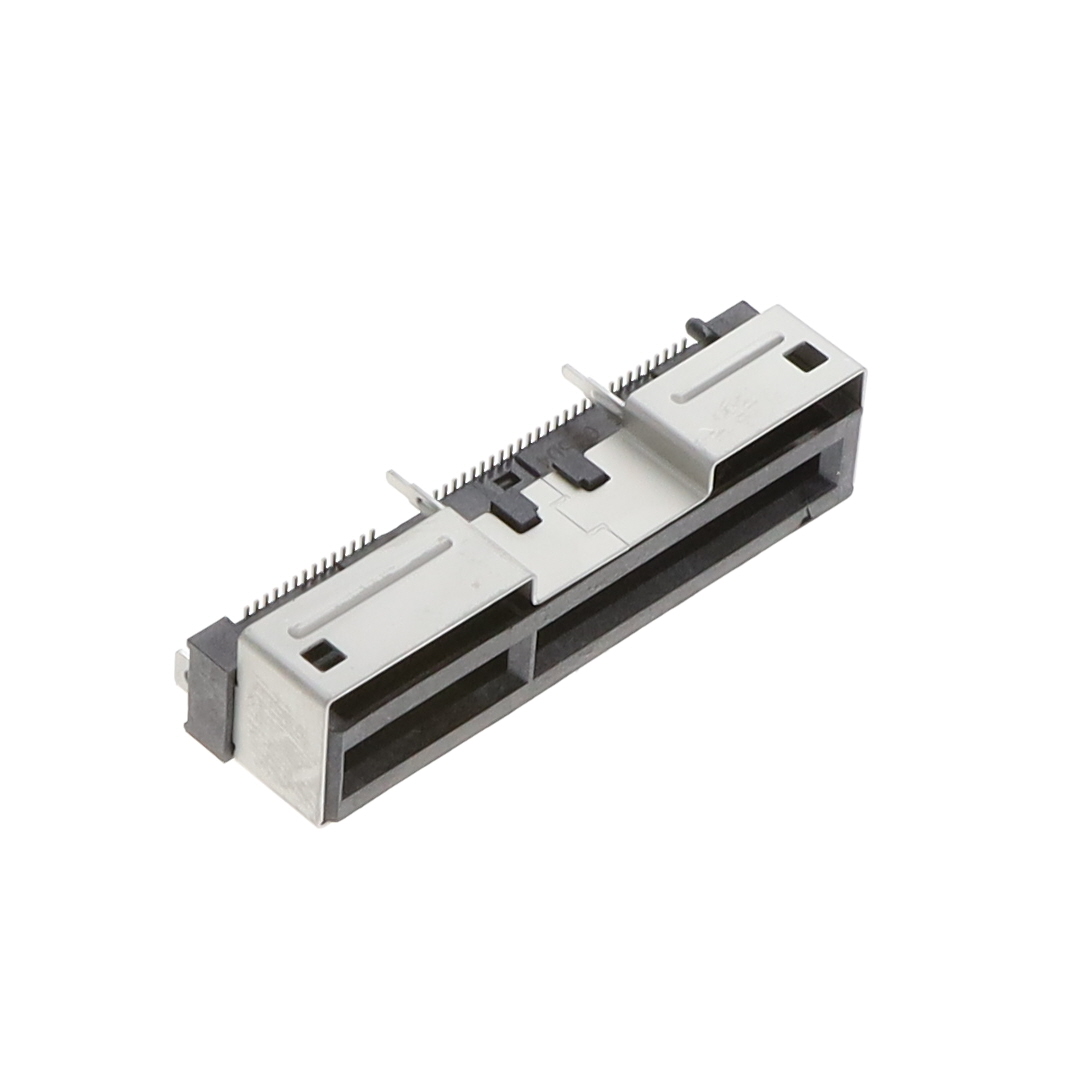

The TE Connectivity AMP Connectors part number 2331813-9 is a cable receiver assembly belonging to the Sliver 2.0 series. It features an 84-position female connector configuration designed for vertical mounting. The component utilizes a dual-edge card type with a 0.024-inch (0.60mm) pitch. Contact surfaces are finished with gold plating, and the housing is black. It supports surface mount termination and operates within a temperature range of -55°C to 105°C.

Edgeboard Connectors Feature Summary

• Vertical cable receiver assembly design
• Dual-edge contact interface
• Gold-plated terminal finish

Edgeboard Connectors Applications

• High-density board-to-board interconnects
• Industrial control system backplanes
• Telecommunications equipment modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official TE Connectivity documentation to ensure correct pin count and orientation. Confirm that the Sliver 2.0 series specifications match the target PCB layout requirements. Cross-reference the datasheet for mating connector compatibility to prevent interface mismatches during assembly.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count vertical interface is required for compact designs. The dual-edge configuration provides robust mechanical stability. Ensure the application environment stays within the specified thermal limits. Verify that the surface mount process aligns with the soldering profile recommendations provided in the manufacturing guidelines.

Edgeboard Connectors Part Context

This part belongs to the Sliver 2.0 family, which focuses on miniaturized interconnect solutions. The series offers high density in small footprints. It complements other components in the TE Connectivity portfolio by providing reliable signal transmission paths for complex electronic assemblies requiring dense connectivity.

Edgeboard Connectors Replacement Considerations

Check for direct substitutes within the Sliver 2.0 series that may offer different pin counts or orientations. Verify cross-reference data from authorized distributors to ensure electrical and mechanical equivalence before substitution.
