Edgeboard Connectors Overview

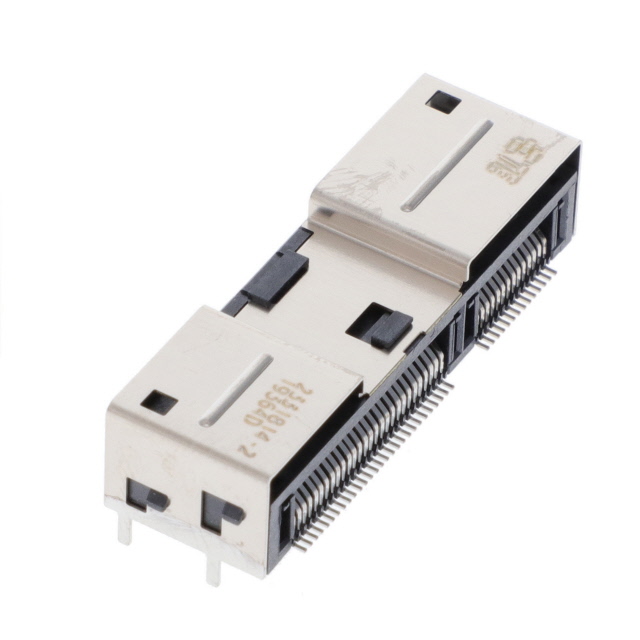

TE Connectivity AMP Connectors part number 2331814-2 is a high-density card edge power connector assembly. It features an 84-position configuration with a 1.27mm signal pitch, designed for low temperature rise and power loss. The component utilizes right-angle mounting style with mounting pegs for secure installation. Contact plating is gold over copper alloy, ensuring reliable electrical performance. The housing is constructed from liquid crystal polymer (LCP). Operating temperature range spans from -55°C to +85°C.

Edgeboard Connectors Feature Summary

• High-density design providing low temperature rise and power loss
• Gold-plated copper alloy contacts for reliable conductivity
• Liquid crystal polymer (LCP) housing material
• Right-angle mounting configuration with mounting pegs

Edgeboard Connectors Applications

• High-density electronic systems requiring efficient power distribution
• Board-to-board interconnects in space-constrained environments
• Industrial equipment utilizing card edge power connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix and revision level against the official TE Connectivity datasheet to ensure compatibility with mating connectors. Confirm that the 1.27mm pitch and 84-position count match the target PCB footprint requirements. Check RoHS compliance status and operating temperature ratings against environmental specifications before procurement.

Edgeboard Connectors Selection Notes

Select this component when high current density and minimal thermal impact are critical. Ensure the mating card edge conductor thickness aligns with the connector's contact retention specifications. Verify that the right-angle orientation fits within the mechanical envelope of the assembly without obstructing adjacent components or heat dissipation paths.

Edgeboard Connectors Part Context

This part belongs to the TE Connectivity AMP series of high-density card edge power connectors. These connectors are engineered for applications demanding robust power delivery in compact form factors. The series supports various position counts and configurations to accommodate diverse board layout needs while maintaining consistent electrical characteristics.

Edgeboard Connectors Replacement Considerations

Consult TE Connectivity documentation for direct cross-reference part numbers. Ensure any substitute maintains the identical 1.27mm pitch, 84-position count, and right-angle mounting geometry to preserve mechanical and electrical integrity.
