2331814-3

Edgeboard Connectors Overview

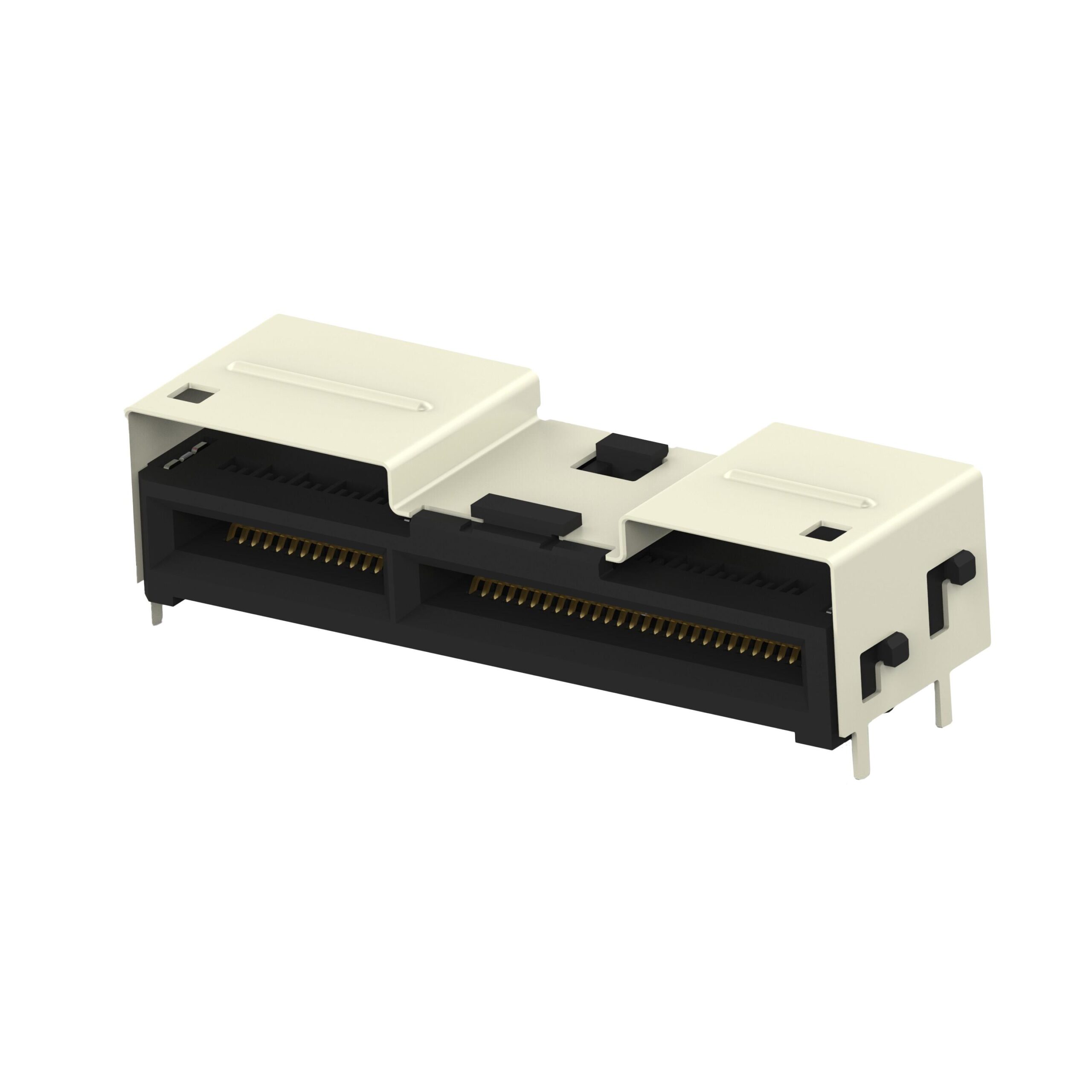

The TE Connectivity AMP Connectors part number 2331814-3 is a cable receptacle assembly belonging to the Sliver 2.0 series. It features an 84-position configuration with dual edge contacts and a 0.60mm (0.024 inch) pitch. The connector utilizes gold-plated copper alloy contacts housed in black liquid crystal polymer (LCP). Designed for right-angle surface-mount installation, it supports solder termination and includes board guide features for pick-and-place handling.

Edgeboard Connectors Feature Summary

• Right-angle surface-mount design for compact PCB integration
• Gold-plated contacts ensure reliable signal transmission
• Board guide features facilitate automated pick-and-place assembly

Edgeboard Connectors Applications

• Home appliance control boards
• Washing machine interface modules
• General electronic equipment interconnections

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm orientation and contact plating specifications. Ensure compatibility with the target PCB footprint and reflow soldering profile. Confirm that the required current rating aligns with the application's electrical demands before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density, right-angle connection is required for space-constrained designs. The LCP housing provides thermal stability suitable for standard reflow processes. Consider the 0.60mm pitch density when planning trace routing and ensuring adequate clearance for adjacent components on the circuit board.

Edgeboard Connectors Part Context

This connector is part of the Sliver 2.0 family, engineered for high-reliability applications in consumer electronics. The series emphasizes robust mechanical retention and consistent electrical performance. It serves as a critical interconnect solution for modern appliances requiring durable and compact wiring harness connections.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult TE Connectivity technical support or authorized distributors for verified equivalents if this specific part number is unavailable.
