2331814-7

Edgeboard Connectors Overview

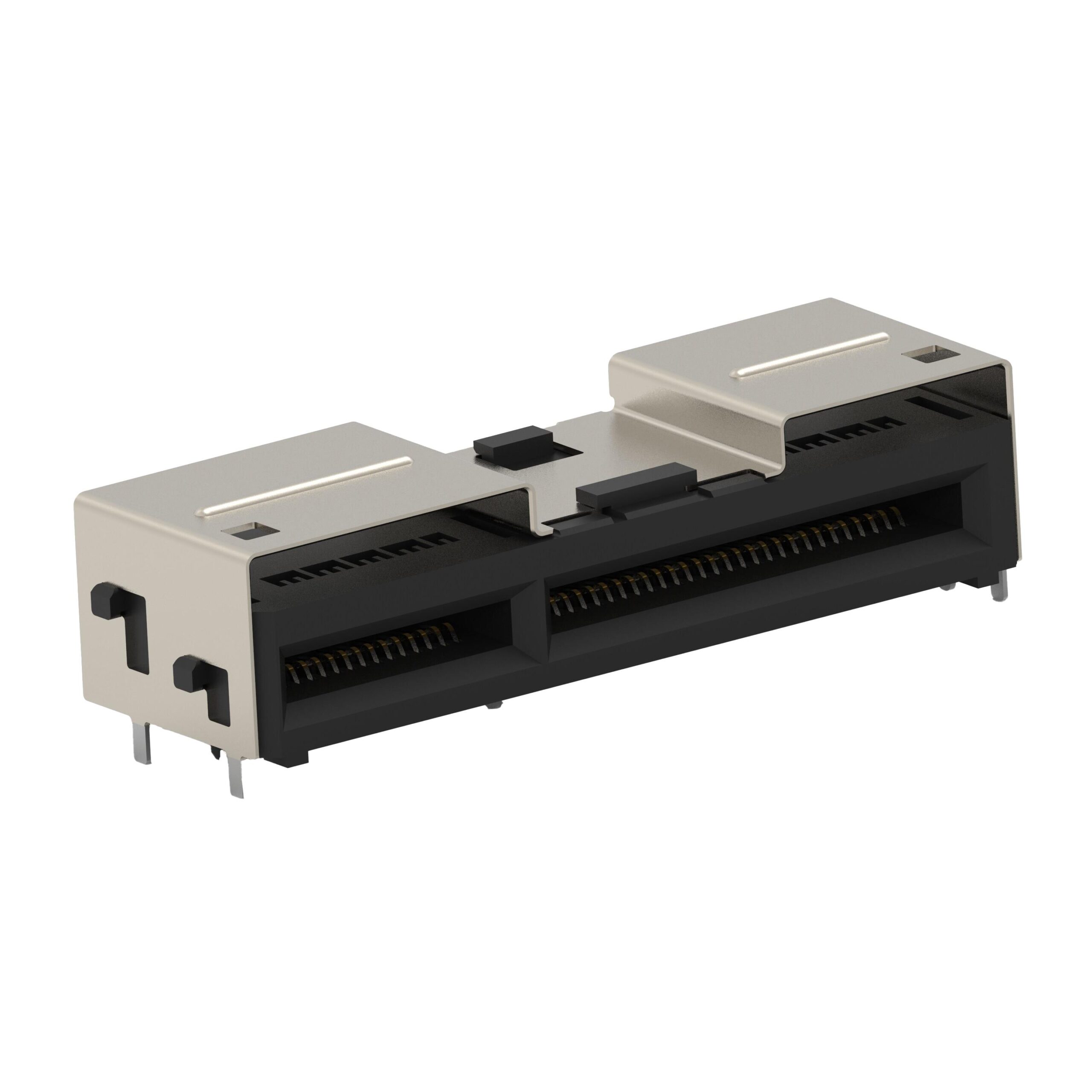

The TE Connectivity AMP Connectors part number 2331814-7 is a standard card edge connector assembly belonging to the Sliver 2.0 series. It features an 84-position configuration with a 0.6 mm pitch, designed for right-angle mounting via mounting pegs. The contacts are constructed from copper alloy with gold plating and support a current rating of 1.1 A. The housing utilizes liquid crystal polymer (LCP) material, ensuring operational stability within a temperature range of -55°C to +85°C.

Edgeboard Connectors Feature Summary

• Right-angle cable receptacle assembly design for compact board integration
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Liquid crystal polymer housing provides thermal stability and durability

Edgeboard Connectors Applications

• Home appliance internal interconnections
• Washing machine control circuitry connections
• General industrial equipment signal routing

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official TE Connectivity datasheet to confirm mechanical orientation and contact finish specifications. Ensure compatibility with the target PCB footprint and mating card thickness requirements before finalizing procurement orders to prevent assembly mismatches.

Edgeboard Connectors Selection Notes

Select this component when a high-density 84-position connection is required in a space-constrained environment. The right-angle form factor facilitates efficient board stacking or side-entry cabling. Confirm that the 0.6 mm pitch aligns with the system's density requirements and that the 1.1 A per contact rating meets the electrical load demands of the application.

Edgeboard Connectors Part Context

This component is part of the Sliver 2.0 series, engineered for high-density applications requiring reliable performance in demanding environments. The series is widely utilized in consumer electronics and home appliances where robust connectivity and compact form factors are essential for modern device designs.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers for this specific model are not available in the provided documentation. Verify cross-reference data directly with TE Connectivity technical support or consult the official replacement guide for equivalent series components.
