2331814-9

Edgeboard Connectors Overview

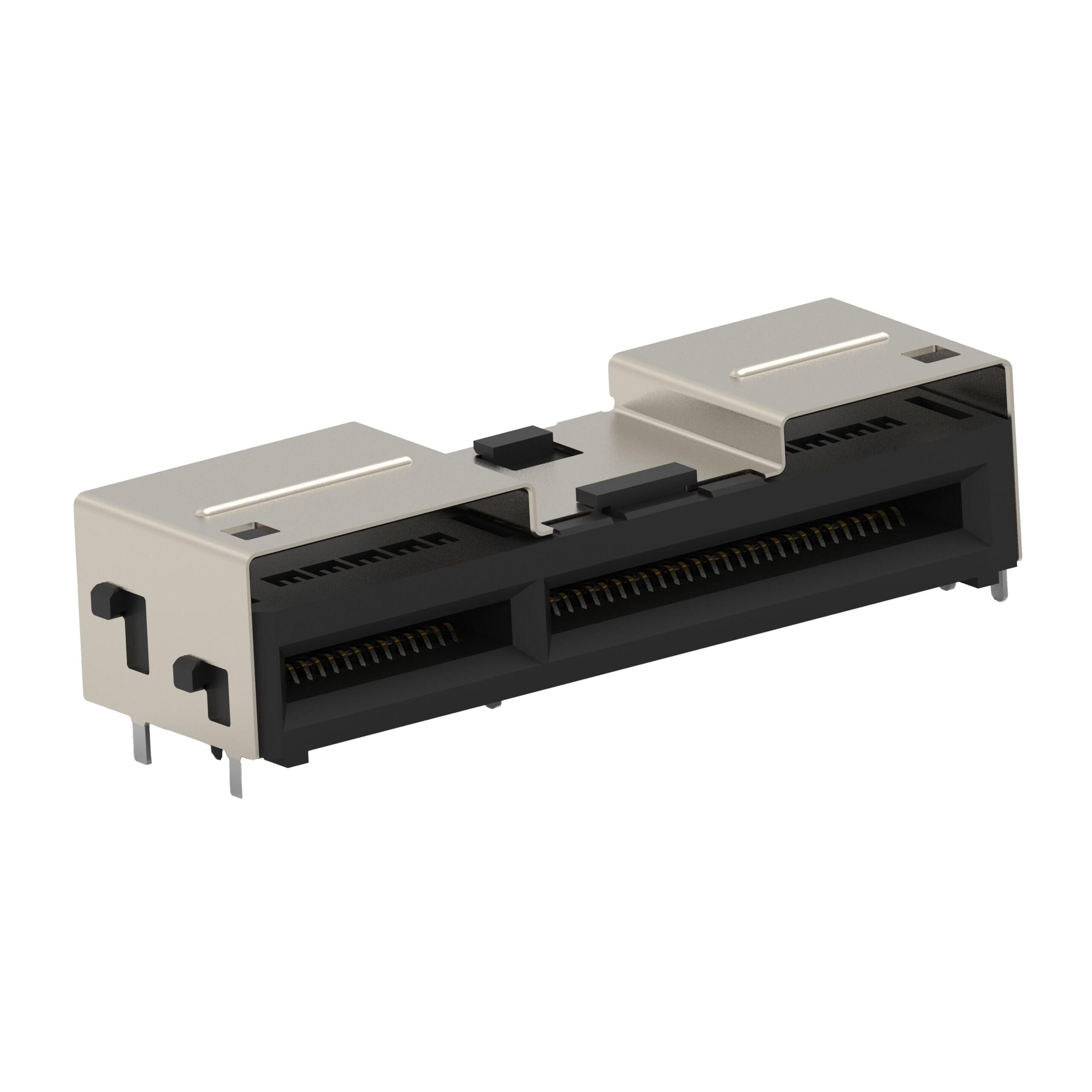

The TE Connectivity AMP Connectors part number 2331814-9 is a standard card edge connector cable receptacle assembly. It features 84 positions with a 0.6 mm pitch and utilizes right-angle mounting style. The contacts are gold-plated copper alloy, rated for 1.1 A current. The housing is constructed from liquid crystal polymer (LCP). Operating temperature range spans from -55°C to +85°C.

Edgeboard Connectors Feature Summary

• Right-angle cable receptacle assembly design
• Gold-plated copper alloy contact system
• Liquid crystal polymer (LCP) housing material

Edgeboard Connectors Applications

• Home appliance interconnections
• Washing machine circuit connections
• General electronic board-to-cable interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm exact plating thickness and packaging configuration. Ensure compatibility with mating card edge thickness specifications. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component for applications requiring high-density connections with a 0.6 mm pitch. The right-angle form factor aids in space-constrained layouts. Verify that the 1.1 A per contact rating meets the circuit requirements. Ensure the LCP housing withstands the thermal environment of the target application.

Edgeboard Connectors Part Context

This component belongs to the Sliver 2.0 series of card edge connectors. It is designed for reliable signal transmission in compact electronic assemblies. The 84-position count supports complex interface requirements. The product is manufactured by TE Connectivity AMP Connectors.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference pin counts and pitch dimensions when evaluating potential substitute part numbers.
