Edgeboard Connectors Overview

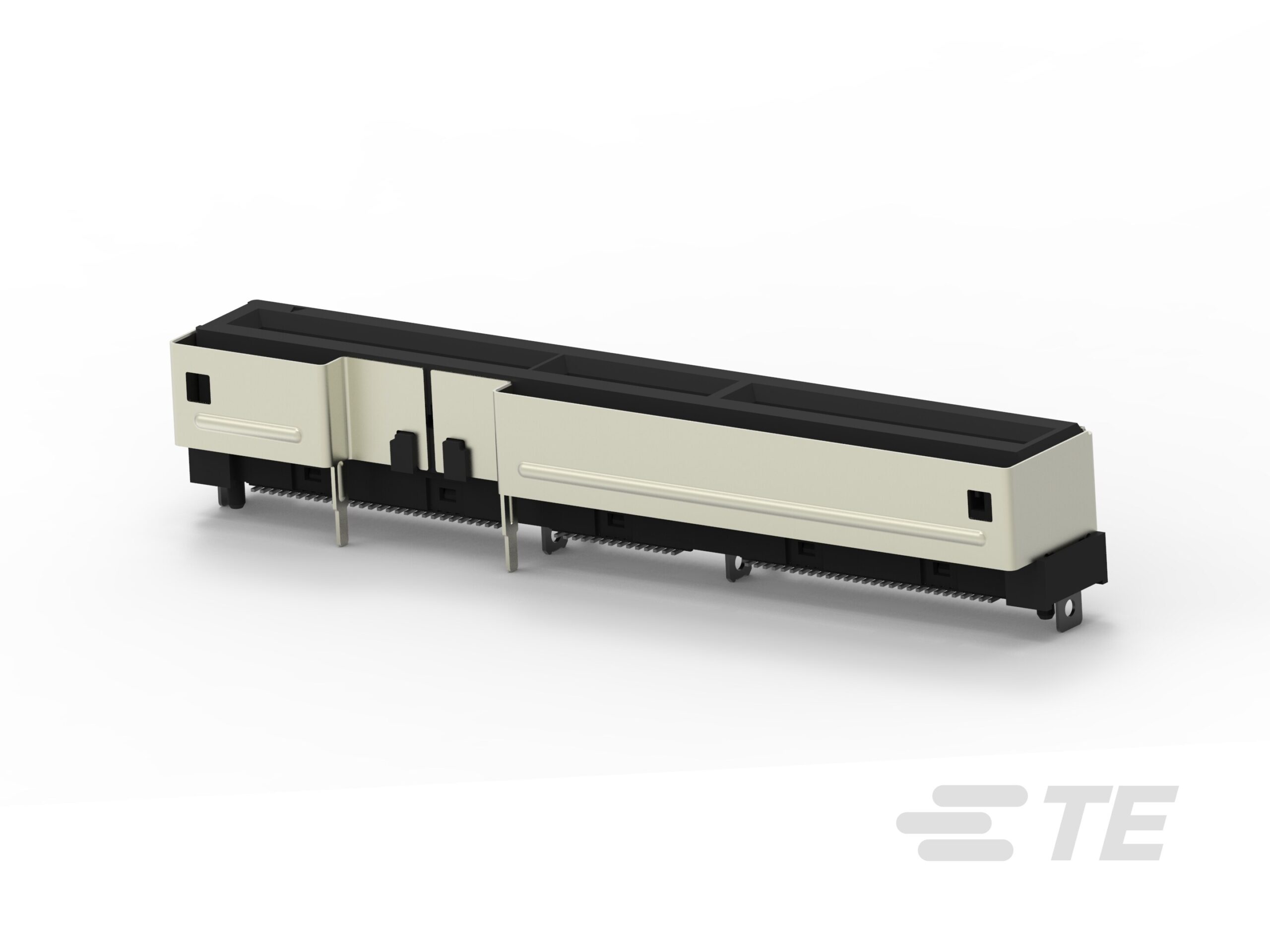

The TE Connectivity AMP Connectors part number 2332139-1 is a receptacle assembly belonging to the Sliver 2.0 series. It features 140 positions arranged in a dual-edge configuration with a vertical orientation. The connector utilizes a 0.60mm (0.024 inch) pitch and employs gold-plated contacts for reliable signal transmission. Designed for surface-mount installation, it supports solder termination and includes board guide rails for precise alignment during automated pick-and-place processes. The housing is constructed from black liquid crystal polymer (LCP), providing stability within an operating temperature range of -55°C to 85°C.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for high-density interconnect applications
• Gold contact plating ensures low resistance and corrosion resistance
• Integrated board guide rails facilitate accurate surface-mount placement
• Vertical orientation optimizes space efficiency on printed circuit boards

Edgeboard Connectors Applications

• High-density electronic assemblies requiring robust edge connections
• Industrial control systems utilizing surface-mount technology
• Automotive electronics modules demanding reliable signal integrity
• Consumer appliances with complex internal wiring harnesses

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official TE Connectivity documentation to confirm exact pin count, plating thickness, and packaging quantity. Ensure compatibility with mating card edge specifications before procurement. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region and production batch.

Edgeboard Connectors Selection Notes

Select this component when high-density dual-edge connectivity is required in a vertical form factor. The 0.60mm pitch allows for significant I/O density within a compact footprint. Consider the LCP material properties for thermal stability and the gold plating for long-term reliability in harsh environments. Validate mechanical fit with board guide rail requirements and ensure soldering profiles match the specified thermal limits.

Edgeboard Connectors Part Context

This component is part of the Sliver 2.0 family, which specializes in high-performance, small-pitch connectors. The series is engineered for applications demanding high reliability and dense interconnections. The 2332139-1 variant specifically addresses needs for vertical, dual-edge mounting solutions with standardized dimensions and proven contact performance characteristics.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-references through official TE Connectivity channels or authorized distributor databases to identify compatible alternatives with matching electrical and mechanical specifications.
