2332139-3

Edgeboard Connectors Overview

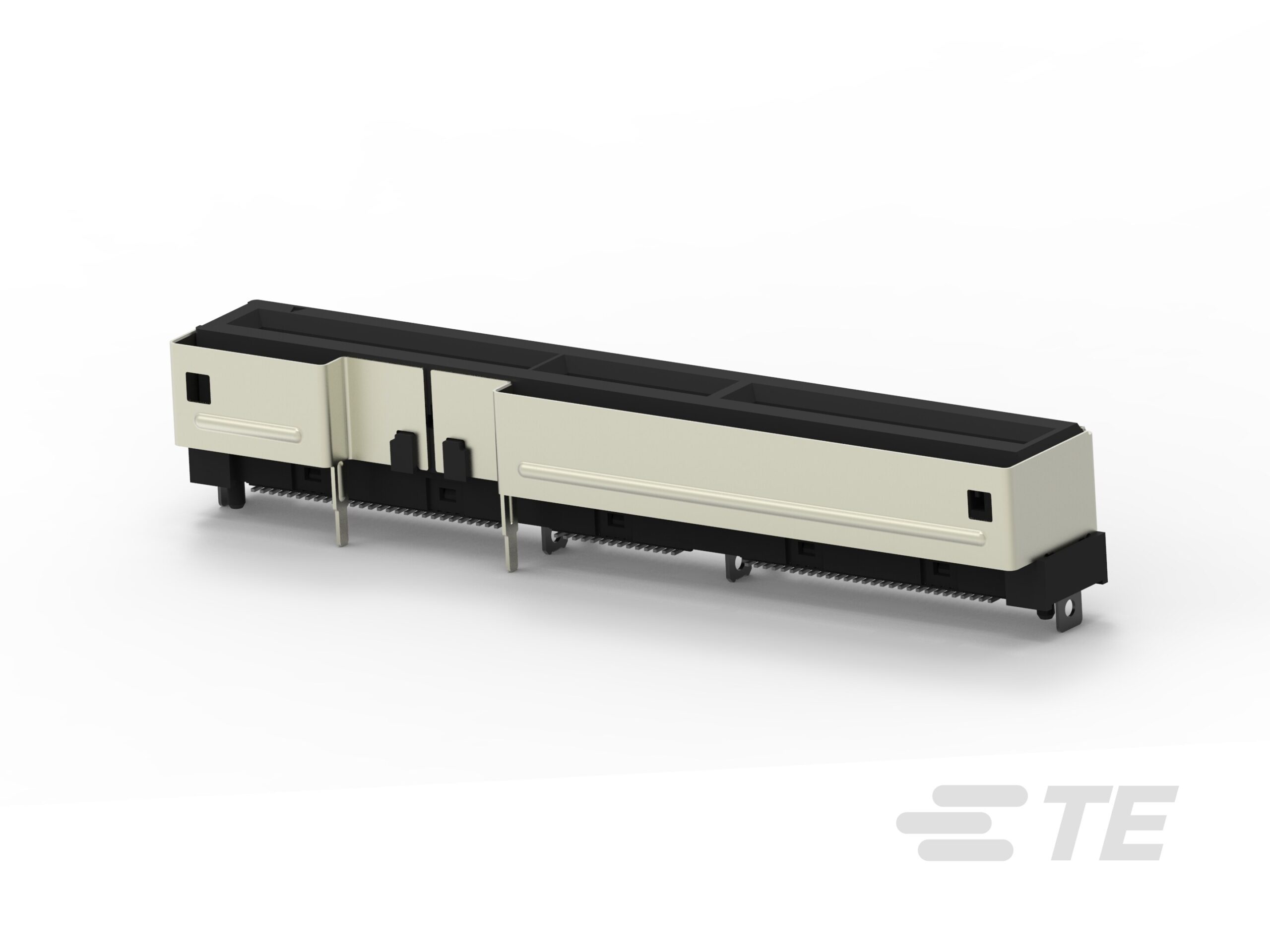

The TE Connectivity AMP Connectors part number 2332139-3 is a vertical receptacle assembly belonging to the Sliver 2.0 series. It features 140 positions arranged in two rows, with 28 contacts per grid section. The connector utilizes a 0.024 inch (0.60 mm) pitch and is designed for non-specified dual edge cards with a thickness of 0.062 inches (1.57 mm). The housing is constructed from black liquid crystal polymer (LCP), while the contacts are made of copper alloy with a gold plating finish.

Edgeboard Connectors Feature Summary

• Vertical surface mount design compatible with pick-and-place automation
• Dual edge female contact configuration for secure board retention
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Liquid crystal polymer insulation providing thermal stability

Edgeboard Connectors Applications

• High-density electronic module interconnections
• Industrial control system backplanes
• Telecommunications infrastructure equipment
• Automotive electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest datasheet to ensure compatibility with current production requirements. Confirm that the intended application environment falls within the specified operating temperature range and mechanical stress limits defined in the official documentation before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, low-profile vertical interface is required for dual-edge card applications. Ensure the PCB layout accommodates the specific mounting footprint and that the mating card thickness aligns with the 0.062-inch specification. Consider the surface mount orientation and soldering profile requirements during the design phase.

Edgeboard Connectors Part Context

This component is part of the Sliver 2.0 family, which focuses on high-density interconnect solutions. The series offers various position counts and configurations tailored for demanding electronic environments. The 2332139-3 specifically addresses needs for robust, vertically mounted connections in compact form factors.

Edgeboard Connectors Replacement Considerations

Consult the manufacturer's cross-reference guide for verified substitute part numbers. Ensure any alternative maintains identical pin count, pitch, and mounting characteristics to guarantee mechanical and electrical compatibility without redesign.
