Edgeboard Connectors Overview

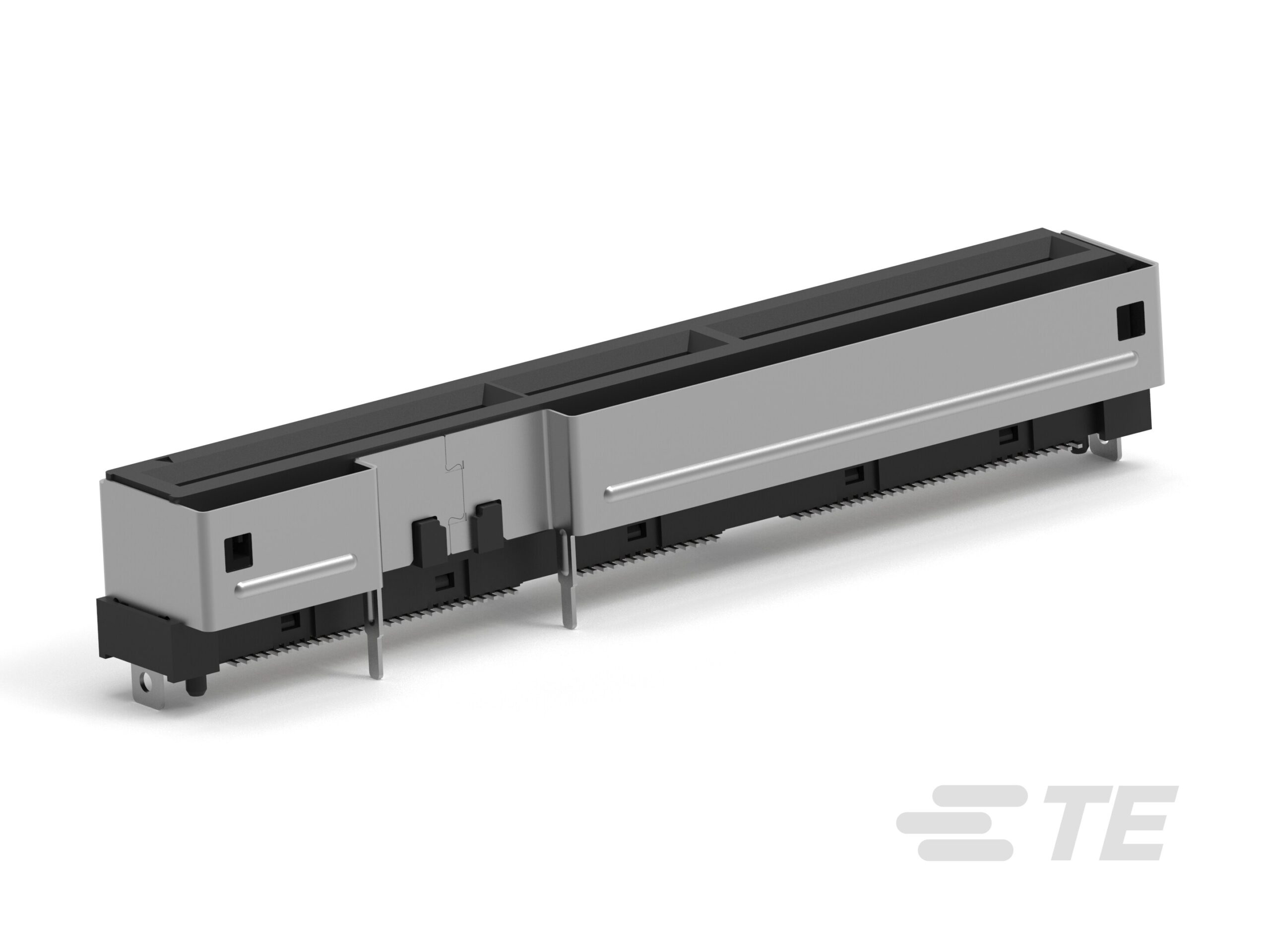

The TE Connectivity AMP Connectors part number 2332139-4 is a high-density edge board connector designed for surface mount applications. It features a dual-edge female configuration with 140 positions arranged in two rows. The connector utilizes a 0.024-inch (0.60mm) pitch and accepts non-specified dual-edge cards up to 0.062 inches thick. Contact surfaces are gold-plated, and the housing is constructed from black liquid crystal polymer (LCP).

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for reliable signal transmission.
• Surface mount installation with solder retention capabilities.
• Integrated board guide and pick-and-place compatible design.
• Locking ramp feature ensures secure mating engagement.

Edgeboard Connectors Applications

• Home appliance control boards
• Washing machine interface modules
• Consumer electronics internal interconnects

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and environmental compliance status prior to procurement. Confirm that the target PCB footprint matches the manufacturer's recommended land pattern. Ensure storage conditions adhere to moisture sensitivity level requirements if applicable. Cross-reference the basic product number 2332139 to confirm family compatibility. Validate that the selected packaging format meets assembly line handling specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.60mm pitch is required for surface mount technology. It is suitable for applications demanding board guiding features and pick-and-place compatibility. Consider the LCP insulation material for thermal stability. Evaluate the current carrying capacity against the specific load requirements of the target circuit design before finalizing the selection.

Edgeboard Connectors Part Context

This component belongs to the Sliver 2.0 series by TE Connectivity AMP Connectors. The series focuses on high-density interconnect solutions for compact electronic assemblies. It represents an evolution in edge card connectivity, emphasizing reliability in consumer and industrial environments. The design supports automated manufacturing processes through its specific mechanical features.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers. Do not assume interchangeability with other series without mechanical and electrical validation. Verify pinout and dimensional compatibility before substitution.
