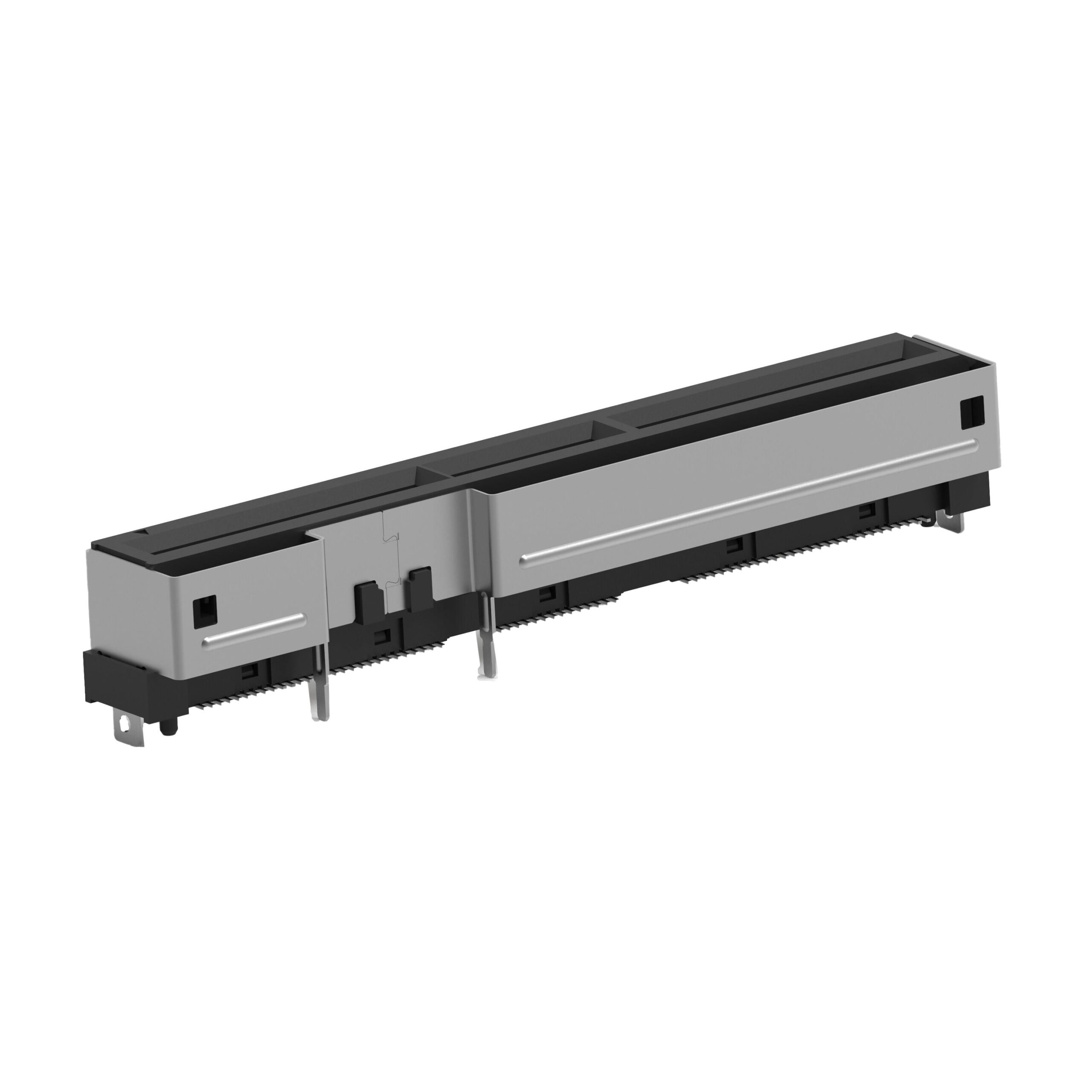

2332139-8

2332139-8 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is RECEPT ASSY, 140 POS, VERT, SLIV. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2332139-8

• Description：RECEPT ASSY, 140 POS, VERT, SLIV
• Series：Sliver 2.0
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Card Type：Non Specified - Dual Edge
• Gender：Female
• Number of Positions/Bay/Row：28; 14; 28
• Number of Positions：140
• Card Thickness：0.062" (1.57mm)
• Number of Rows：2
• Pitch：0.024" (0.60mm)
• Read Out：Dual
• Features：Board Guide, Pick and Place, Solder Retention
• Mounting Type：Surface Mount
• Termination：Solder
• Contact Material：Copper Alloy
• Contact Finish：Gold
• Contact Finish Thickness：15.0µin (0.38µm)
• Contact Type：-
• Color：Black
• Flange Feature：-
• Operating Temperature：-55°C ~ 85°C

Edgeboard Connectors datasheet and documents for 2332139-8
