Edgeboard Connectors Overview

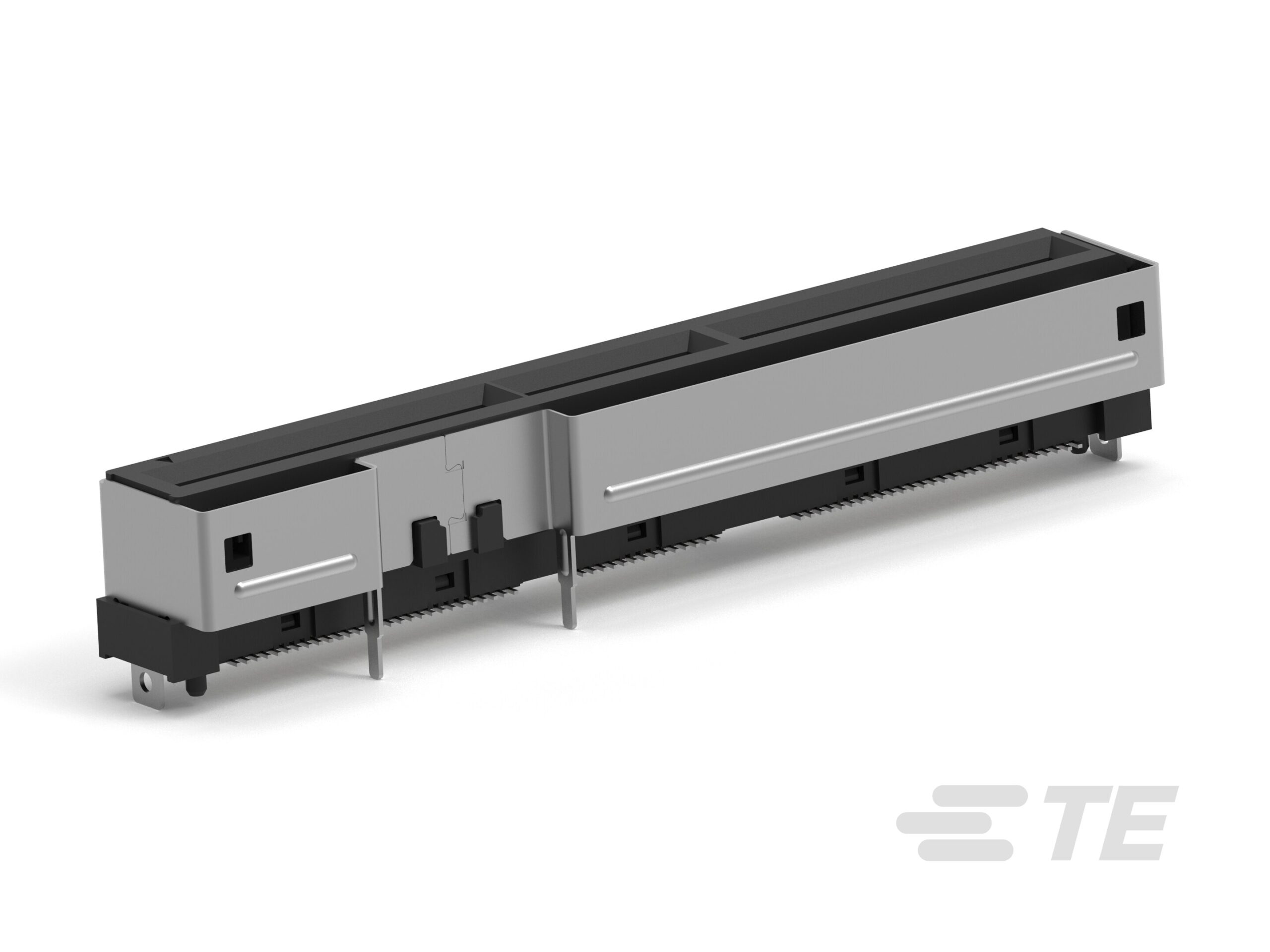

The TE Connectivity AMP Connectors part number 2332139-9 is a dual-edge female connector designed for high-density board-to-board applications. It features 140 positions with a 0.024-inch (0.60mm) pitch, arranged in two rows of 70 contacts each. The connector utilizes gold-plated copper alloy terminals and a black liquid crystal polymer (LCP) insulator rated UL94 V-0. Designed for surface mount installation, it supports pick-and-place assembly and includes board guide slots for precise alignment during mating.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for vertical board interconnection
• Gold-plated copper alloy contacts for reliable signal transmission
• Board guide slots ensure accurate alignment during mating
• Surface mount design compatible with automated pick-and-place processes

Edgeboard Connectors Applications

• High-density backplane systems
• Server and storage chassis interconnects
• Telecommunications infrastructure equipment
• Industrial control modules requiring compact edge connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm terminal plating thickness and material composition. Ensure compatibility with mating edge cards regarding thickness and contact length. Confirm RoHS compliance status and moisture sensitivity level requirements for your manufacturing process before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.60mm pitch is required. Consider the LCP insulator material for thermal stability and the gold plating for corrosion resistance. Evaluate the mechanical retention provided by the solder termination and board guides against your PCB layout constraints.

Edgeboard Connectors Part Context

This part belongs to the Sliver 2.0 series of high-density interconnect connectors from TE Connectivity. The series is engineered for space-constrained applications requiring robust electrical performance. The 2332139-9 variant specifically addresses needs for dual-sided edge connectivity with standardized pin counts.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult TE Connectivity engineering for direct replacements or obsolescence management strategies if this component is no longer suitable for your design.
