2332141-2

Edgeboard Connectors Overview

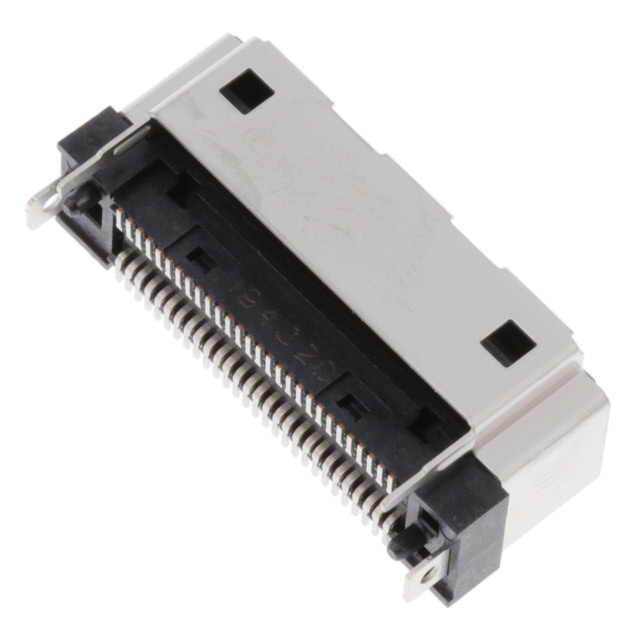

The TE Connectivity AMP Connectors part number 2332141-2 is a dual-edge female edgeboard connector belonging to the Sliver 2.0 series. It features 56 positions arranged in two rows of 28 contacts each, with a pitch of 0.024 inches (0.60mm). The connector utilizes gold-plated copper alloy contacts and a black liquid crystal polymer (LCP) insulator. Designed for surface mount installation via solder termination, it supports a card thickness of 0.062 inches (1.57mm).

Edgeboard Connectors Feature Summary

• Dual-edge female configuration designed for reliable board-to-board or backplane interconnections.
• Gold-plated contacts ensure stable signal transmission and corrosion resistance.
• Liquid crystal polymer insulation provides high thermal stability and mechanical strength.
• Surface mount design facilitates automated pick-and-place assembly processes.

Edgeboard Connectors Applications

• Home appliance control boards
• Washing machine circuitry
• Industrial equipment interface modules

Edgeboard Connectors Procurement Notes

Verify the specific package type required, as this component is available in tape and reel configurations for automated manufacturing. Confirm that the supplier source aligns with original manufacturer distribution channels to ensure authenticity. Check for RoHS3 compliance status if environmental regulations apply to your production line. Ensure storage conditions remain within recommended temperature ranges to preserve material integrity prior to assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connection is required for applications demanding a 0.60mm pitch. It is suitable for designs involving non-specified dual edge cards with a standard thickness of 1.57mm. Consider the Sliver 2.0 series characteristics for compact surface mount implementations. Evaluate current carrying capacity requirements against the specified range for optimal performance in home appliance or industrial contexts.

Edgeboard Connectors Part Context

This connector is part of the Sliver 2.0 family, which focuses on high-density interconnect solutions. The series offers various position counts and configurations tailored for modern electronic assemblies. It shares design principles with other models like 2332141-3 and 2332141-4, differing primarily in packaging and minor mechanical attributes while maintaining consistent electrical performance standards.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include part numbers 2332141-3 and 2332141-4, which share identical electrical specifications and form factors. Verify compatibility regarding mounting style and packaging preferences before substitution. Cross-reference mechanical drawings to ensure fitment in existing PCB layouts without modification.
