Edgeboard Connectors Overview

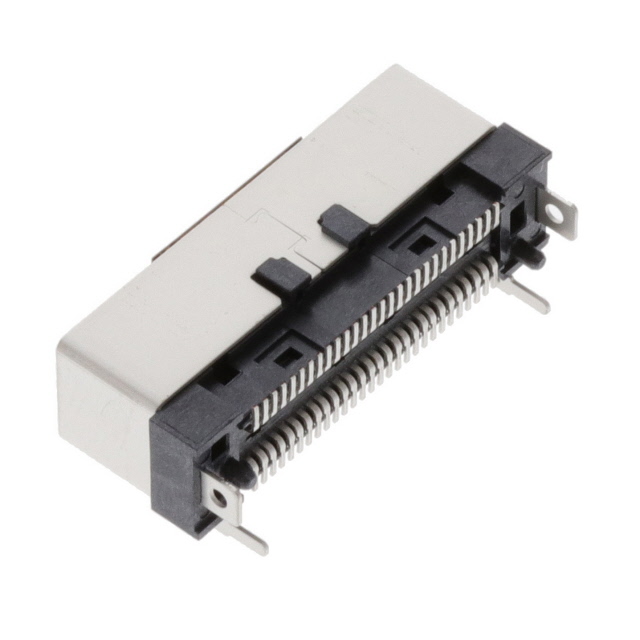

The TE Connectivity AMP Connectors part number 2332141-3 is a dual-sided edge card connector designed for surface mount installation. It features a 56-position configuration with female contacts, arranged in two rows of 28 pins each. The connector utilizes a 0.024-inch (0.60mm) pitch and supports a board thickness of 0.062 inches (1.57mm). Constructed with copper alloy contacts finished with 30.0µin gold plating, the housing is made of black liquid crystal polymer (LCP). This component belongs to the Sliver 2.0 series.

Edgeboard Connectors Feature Summary

• Dual-sided female contact design for secure edge card engagement
• Surface mount termination with solder compatibility
• Gold-plated copper alloy contacts for reliable conductivity
• Liquid crystal polymer insulation for structural stability

Edgeboard Connectors Applications

• High-density electronic interconnects
• Server and storage backplane systems
• Industrial control module connections
• Telecommunications equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official TE Connectivity documentation to ensure correct packaging and material specifications. Confirm RoHS compliance status and moisture sensitivity levels prior to integration into production lines. Cross-reference the manufacturer part number with authorized distributor catalogs to validate current availability and standard lead times.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, high-pin-count edge connector is required for space-constrained applications. Ensure the mating PCB edge card thickness matches the specified 0.062-inch requirement. Consider the surface mount orientation and soldering profile compatibility during the design phase to guarantee mechanical integrity.

Edgeboard Connectors Part Context

This connector is part of the Sliver 2.0 series, engineered for small form factor applications requiring robust signal transmission. It serves as a critical interface between circuit boards and peripheral modules. The design emphasizes reliability in high-vibration environments while maintaining a compact footprint suitable for modern electronics.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mating connectors before considering alternative sources or generic equivalents.
