2332141-5

$6.46

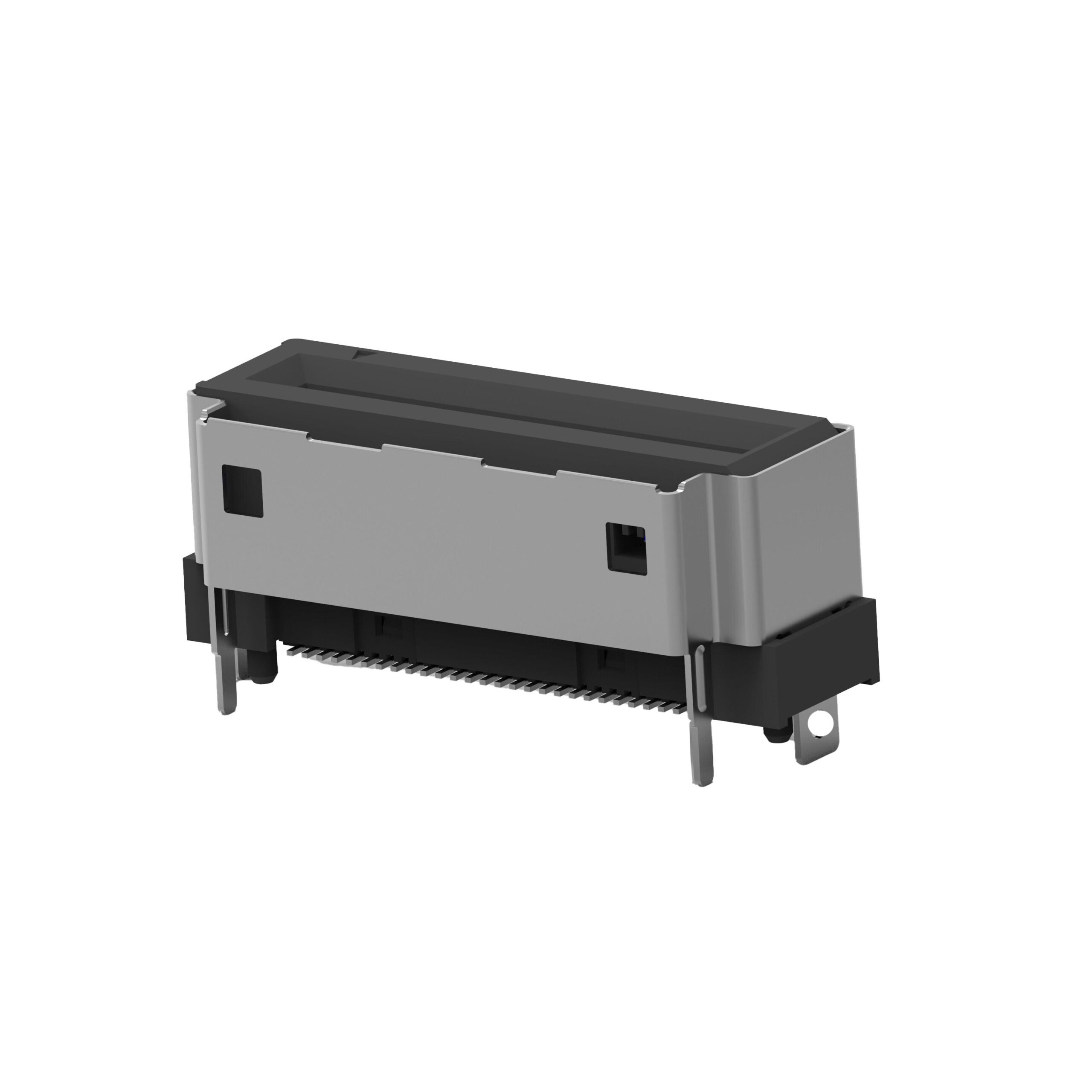

Description：RECEPTACLE ASSY, 56POS, VERT, SL
Series：Sliver 2.0
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5ac550d547bf Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2332141-5 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is RECEPTACLE ASSY, 56POS, VERT, SL. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2332141-5

Description：RECEPTACLE ASSY, 56POS, VERT, SL
Series：Sliver 2.0
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：28
Number of Positions：56
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.024" (0.60mm)
Read Out：Dual
Features：Board Guide, Pick and Place, Solder Retention
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：15.0µin (0.38µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-55°C ~ 85°C

Edgeboard Connectors datasheet and documents for 2332141-5

2332141-5

Edgeboard Connectors Overview

TE Connectivity AMP Connectors part number 2332141-5 is a dual-edge female card edge connector from the Sliver 2.0 series. It features 56 positions arranged in two rows of 28 contacts, with a pitch of 0.024 inches (0.60mm). The connector utilizes gold-plated copper alloy contacts and a black liquid crystal polymer (LCP) insulator. Designed for surface mount installation, it supports pick-and-place assembly and offers solder retention capabilities. The component is RoHS compliant and currently active.

Edgeboard Connectors Feature Summary

Dual-edge configuration for high-density signal transmission
Gold-plated contacts ensure reliable electrical performance
Surface mount design facilitates automated assembly processes

Edgeboard Connectors Applications

High-speed data interface modules
Telecommunications equipment backplanes
Industrial control system boards

Edgeboard Connectors Procurement Notes

Verify that the specific order matches the manufacturer's part number 2332141-5 to ensure correct contact count and pitch specifications. Confirm compliance requirements such as RoHS status against project standards. Check for any recent product change notices or reliability documents that may affect implementation. Ensure storage conditions align with moisture sensitivity guidelines if applicable.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.60mm pitch is required for surface mount applications. Consider the Sliver 2.0 series characteristics for board space optimization. Evaluate the LCP material properties for thermal stability needs. Compare against other TE Connectivity edge connectors if different mounting styles or contact counts are necessary.

Edgeboard Connectors Part Context

The 2332141-5 belongs to the Sliver 2.0 family of card edge connectors by TE Connectivity. This series is engineered for compact, high-reliability interconnections in dense electronic assemblies. The model represents a standard variant within the lineup, offering consistent performance across various industrial and commercial electronics sectors requiring robust board-to-board connectivity.
