Edgeboard Connectors Overview

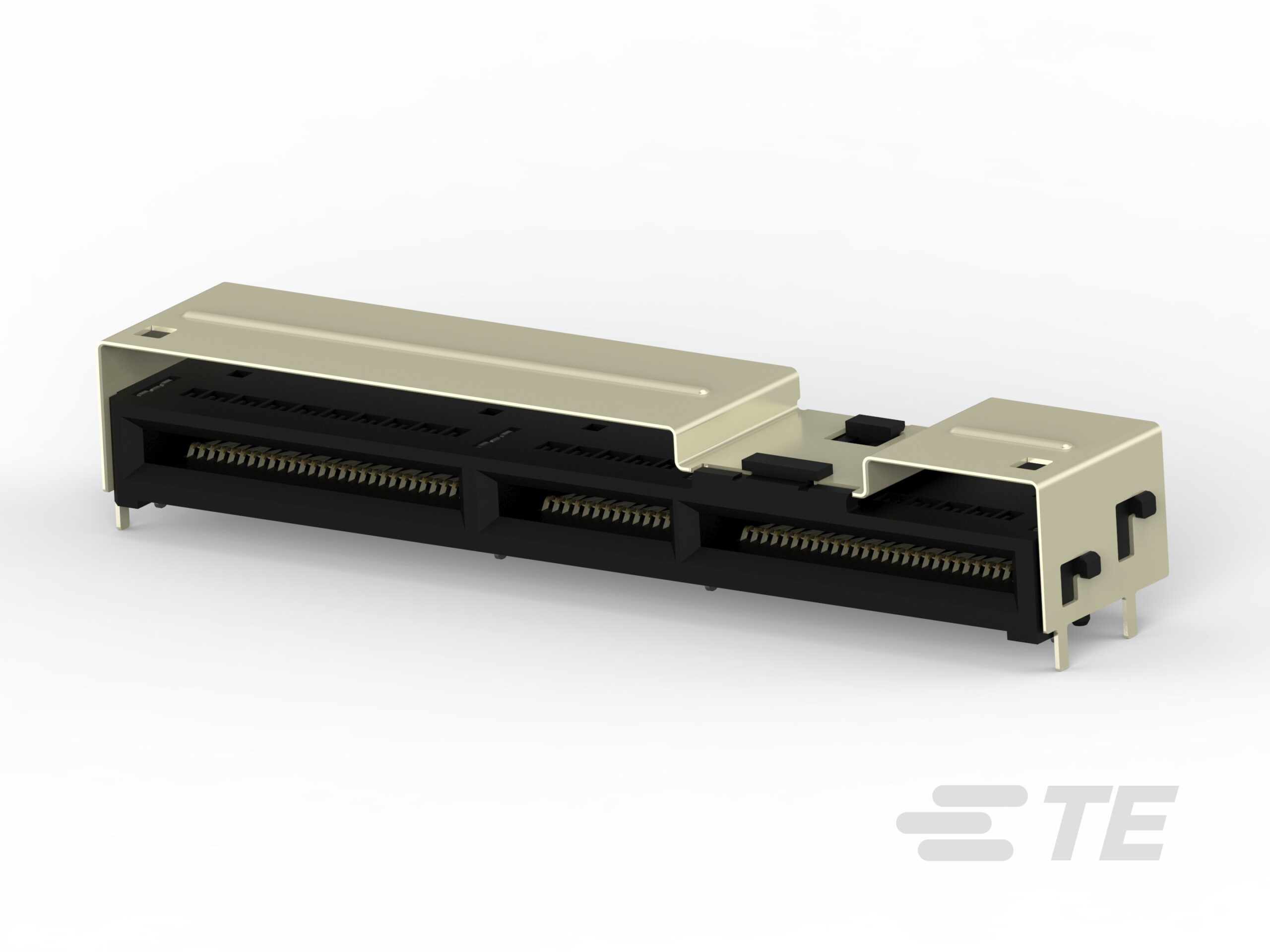

The TE Connectivity AMP Connectors part number 2332205-2 is a standard card edge connector assembly designed for right-angle mounting. It features a dual-edge female configuration with 140 positions and a silver contact finish. The connector utilizes a 2.0 mm pitch to interface circuit boards or cards with electronic equipment, providing a reliable mechanical and electrical connection in high-density applications.

Edgeboard Connectors Feature Summary

• Right-angle receptacle assembly for vertical board integration
• Dual-edge female contact design for secure card engagement
• Silver-plated contacts for corrosion resistance and conductivity

Edgeboard Connectors Applications

• Interface circuit boards with electronic equipment
• High-density backplane interconnects
• Industrial control system module connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest datasheet before procurement. Confirm that the right-angle orientation and 140-position count match the design requirements. Check for any obsolescence notices or product change notifications issued by TE Connectivity to ensure long-term availability and specification consistency.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, dual-edge card edge connector with a 2.0 mm pitch is required. Ensure the mating card thickness and insertion force specifications align with the system design constraints. Verify that the silver contact finish meets the environmental and conductivity requirements of the application environment.

Edgeboard Connectors Part Context

This component belongs to the standard card edge connector family from TE Connectivity AMP Connectors. It is part of a broader range of interconnect solutions designed for robust board-to-board and board-to-backplane connections. The series offers various position counts and orientations to support diverse electronic packaging needs.

Edgeboard Connectors Replacement Considerations

Consult the official TE Connectivity cross-reference guide for verified substitute part numbers. Ensure any replacement maintains the same 2.0 mm pitch, 140-position count, and right-angle form factor to guarantee mechanical compatibility.
