2332208-1

Edgeboard Connectors Overview

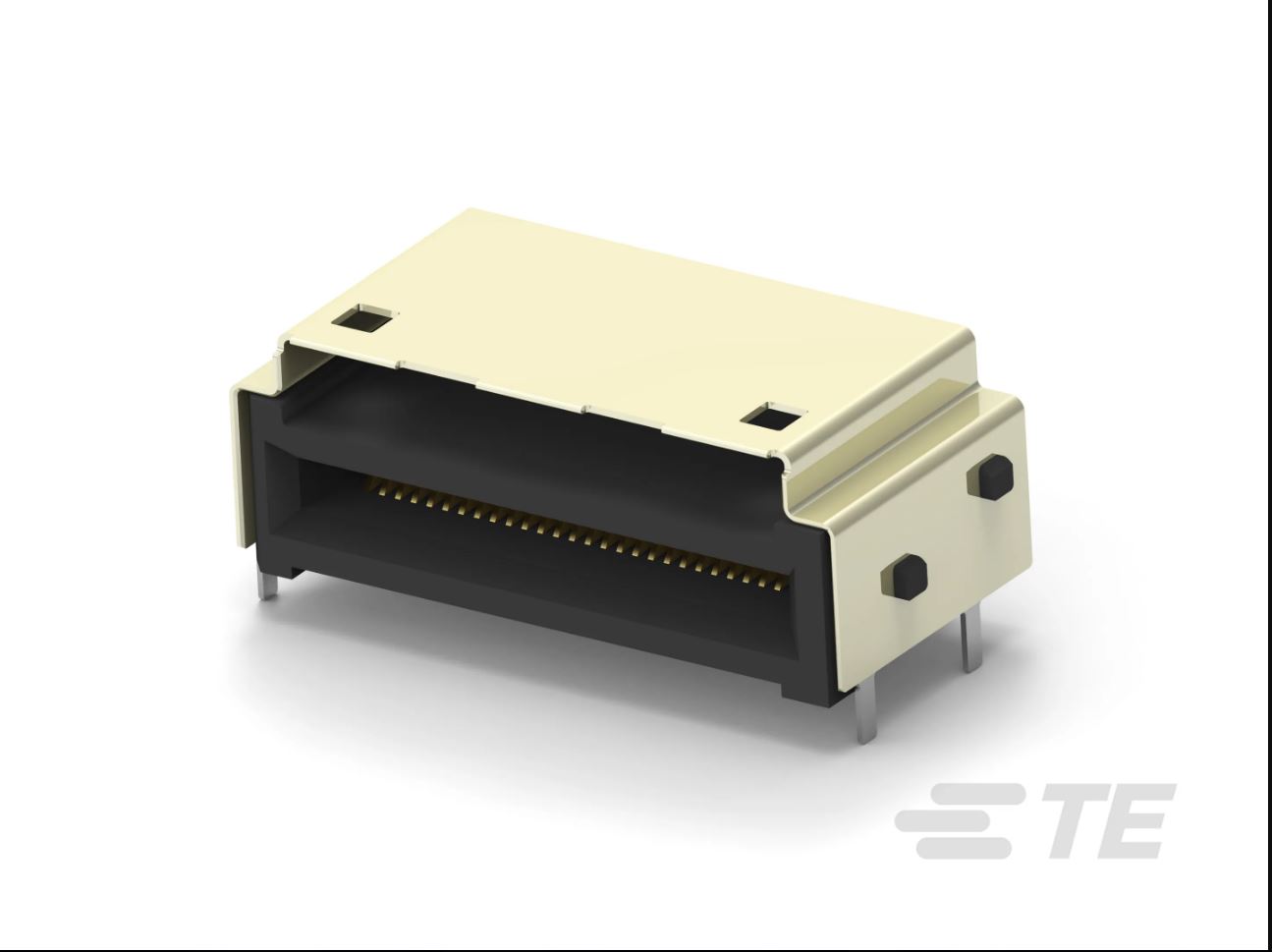

The TE Connectivity AMP Connectors part number 2332208-1 is a dual-sided card edge connector from the Sliver 2.0 series. It features 56 positions with a 0.024-inch (0.60mm) pitch. The connector is designed for surface mount installation and utilizes female contacts with gold plating. It supports a board thickness of 0.062 inches (1.57mm). The housing is black, constructed from liquid crystal polymer (LCP), and the contacts are made of copper alloy. This component is RoHS3 compliant.

Edgeboard Connectors Feature Summary

• Dual-sided female contact configuration for high-density signal transmission
• Surface mount termination method ensures secure PCB attachment
• Gold-plated copper alloy contacts provide reliable conductivity and corrosion resistance
• Liquid crystal polymer insulation offers thermal stability and mechanical strength

Edgeboard Connectors Applications

• High-density data interface connections in electronic systems
• Board-to-board interconnects requiring robust signal integrity
• Industrial equipment utilizing standard card edge form factors

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required packaging options such as tape and reel or cut tape. Confirm that the manufacturing lead time aligns with project schedules, as standard delivery periods may vary. Ensure that the selected variant meets all necessary environmental compliance standards for the intended deployment region. Cross-reference the official datasheet for precise handling instructions.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided connection with a 0.60mm pitch is required for space-constrained designs. The surface mount profile suits automated assembly processes. Evaluate the thermal performance of the LCP material against operating conditions. Ensure the host PCB design accommodates the specified board thickness and mounting footprint for optimal mechanical stability.

Edgeboard Connectors Part Context

This connector belongs to the Sliver 2.0 series, which focuses on high-density interconnect solutions. The series is engineered to support modern electronics demanding compact form factors and reliable electrical performance. It represents a continuation of TE Connectivity's commitment to advanced connector technologies for complex system architectures.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 56-position count, 0.024-inch pitch, and dual-sided female configuration. Verify identical surface mount requirements and compatible board thickness specifications. Consult manufacturer cross-reference lists for officially validated alternative part numbers.
