Edgeboard Connectors Overview

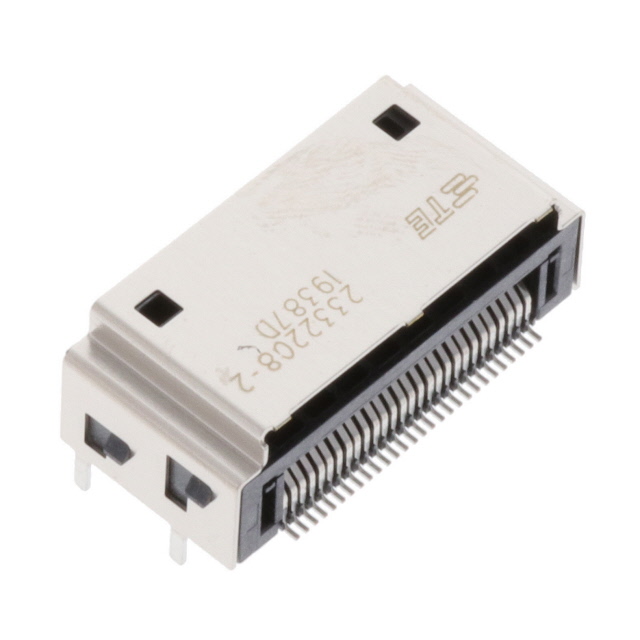

The TE Connectivity AMP Connectors model 2332208-2 is a dual-edge card edge connector assembly designed for vertical or right-angle PCB mounting. It features 56 positions with female contacts, utilizing a 0.024-inch (0.60mm) contact thickness and black housing. The connector supports gold-plated contacts for reliable signal transmission in high-density interconnect applications.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated contact surfaces to ensure low contact resistance
• Black insulating housing constructed for durability

Edgeboard Connectors Applications

• High-density electronic circuit board interconnections
• Industrial control system backplanes
• Telecommunications equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific pin count and contact orientation against your design requirements before ordering. Confirm that the 0.024-inch contact thickness matches your PCB slot specifications. Ensure the dual-edge female configuration aligns with your mating connector type. Check for any recent product change notices regarding material or dimensional updates.

Edgeboard Connectors Selection Notes

Select this component when a robust dual-edge interface is required for high-reliability applications. The gold plating offers superior corrosion resistance compared to tin finishes. Consider the mechanical stability provided by the dual-edge design for systems subject to vibration. Evaluate the thermal performance if operating near temperature limits.

Edgeboard Connectors Part Context

This part belongs to the standard card edge connector family from TE Connectivity. It serves as a critical interconnect solution for replacing older proprietary connectors with standardized, high-pin-count alternatives. The dual-edge design allows for increased I/O density within a compact footprint compared to single-edge variants.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other TE Connectivity dual-edge connectors with matching 56-position counts and 0.024-inch contact thicknesses. Verify compatibility with existing PCB layouts and mating hardware before switching to alternative manufacturers' parts.
