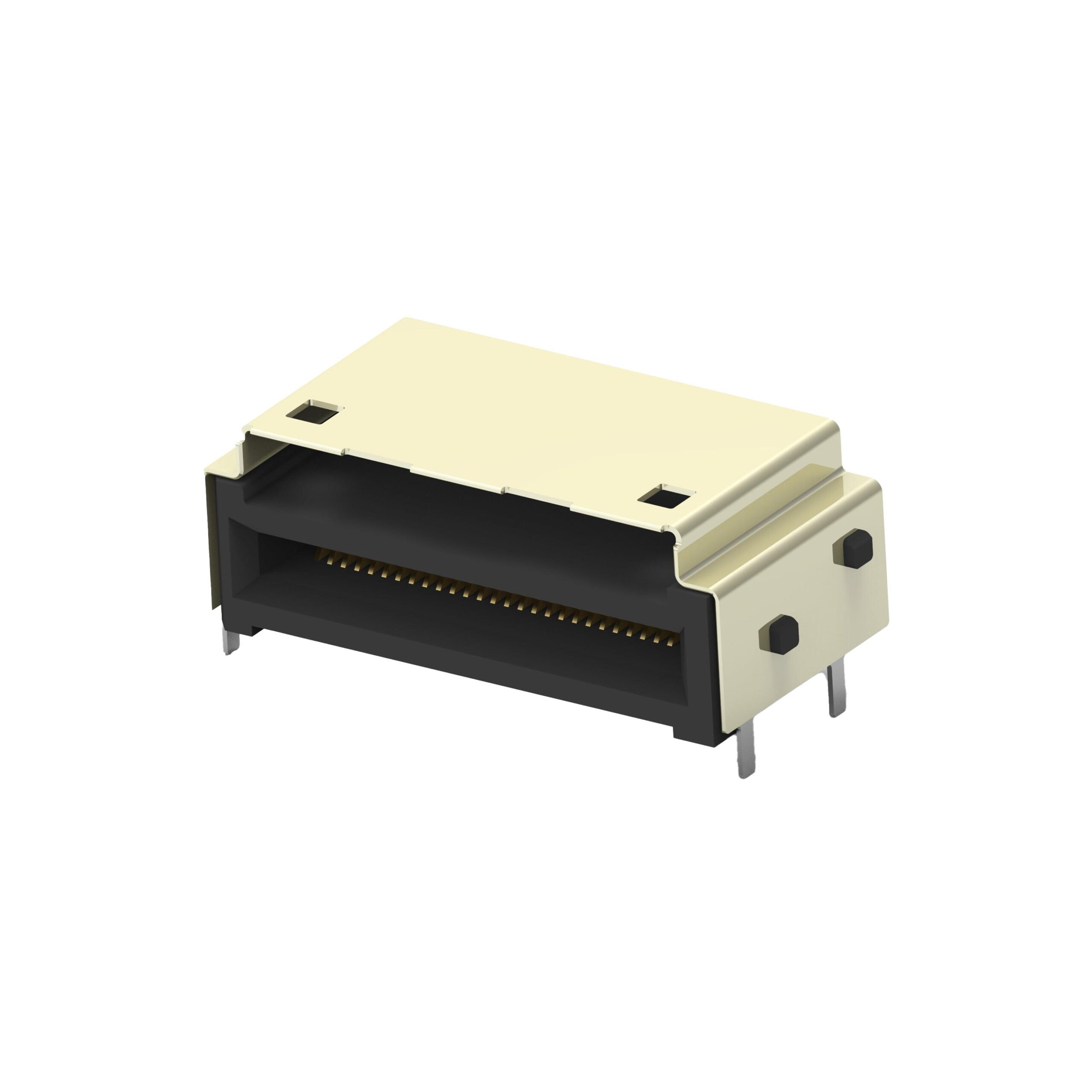

2332208-5 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is RECEPT ASSY, RA, 56 POS, SLIVER. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2332208-5
- Description：RECEPT ASSY, RA, 56 POS, SLIVER
- Series：Sliver 2.0
- Mfr：TE Connectivity AMP Connectors
- Package：Tape & Reel (TR),Cut Tape (CT)
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：28
- Number of Positions：56
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.024" (0.60mm)
- Read Out：Dual
- Features：Board Guide, Pick and Place, Solder Retention
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：15.0µin (0.38µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 85°C
Edgeboard Connectors datasheet and documents for 2332208-5
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 2332208-5 is a standard card edge connector assembly classified as an edgeboard connector. It features a right-angle receptacle configuration designed for vertical board insertion. The component provides 56 positions with a silver contact finish and utilizes a sliver profile design to ensure reliable mating with corresponding card edge connectors.
Edgeboard Connectors Feature Summary
- Right-angle receptacle assembly for secure vertical board mounting
- 56-position capacity supporting high-density interconnect applications
- Sliver profile construction optimized for precise card edge alignment
Edgeboard Connectors Applications
- High-density electronic system interconnections
- Industrial control panel circuit boards
- Telecommunications equipment backplanes
Edgeboard Connectors Procurement Notes
Verify the specific datasheet revision and mechanical drawing dimensions before integration. Confirm that the sliver profile geometry matches the mating card edge requirements. Ensure the right-angle orientation aligns with the PCB layout constraints. Cross-reference the manufacturer's latest documentation for any design changes or updates.
Edgeboard Connectors Selection Notes
Select this component when a high-pin-count, right-angle connection is required. The 56-position count supports complex signal routing needs. The sliver profile offers distinct mechanical advantages over standard profiles. Evaluate space constraints to accommodate the right-angle footprint effectively.
Edgeboard Connectors Part Context
This component belongs to the standard card edge connector family from TE Connectivity AMP. It serves as a critical interface element in systems requiring robust electrical connections between circuit boards. The right-angle design facilitates compact packaging within constrained chassis environments.
Edgeboard Connectors Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Ensure any replacement maintains identical pin count, profile type, and orientation specifications.
