Edgeboard Connectors Overview

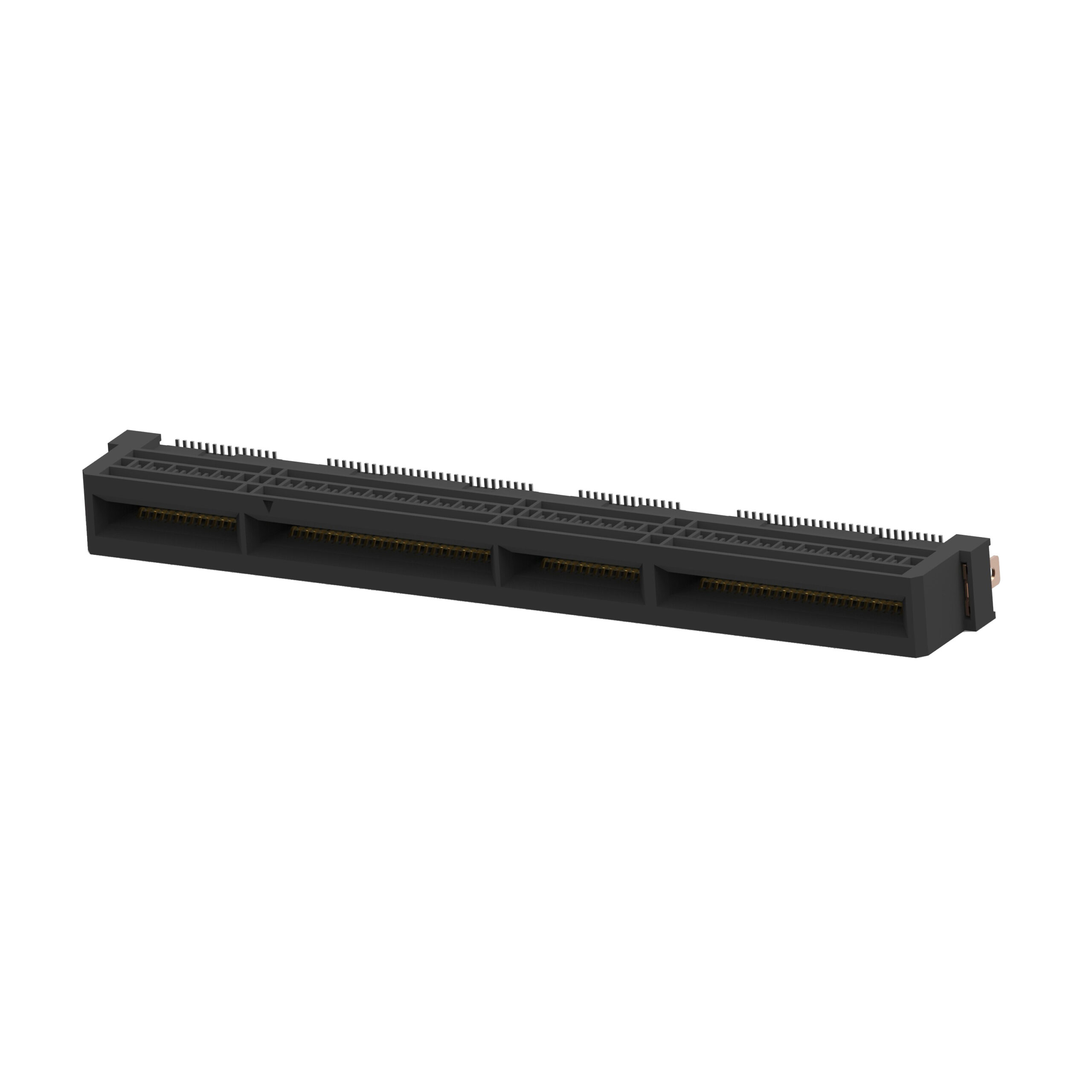

The TE Connectivity AMP Connectors part number 2333799-2 is a vertical rectangular cable assembly belonging to the Sliver 2.0 series. It features a dual edgeboard connector configuration with 168 positions and a female contact type. The connector utilizes a 0.024-inch (0.60mm) pitch and employs gold-plated copper alloy contacts for reliable signal transmission. Designed for surface mount installation, the housing is constructed from black liquid crystal polymer (LCP) to ensure thermal stability. This component supports pick-and-place manufacturing processes and includes solder retention capabilities for secure board attachment.

Edgeboard Connectors Feature Summary

• Vertical orientation design for compact board integration
• Dual edgeboard interface supporting high-density connections
• Gold-plated contacts ensuring corrosion resistance and conductivity
• Surface mount technology compatible with automated assembly

Edgeboard Connectors Applications

• High-speed data processing systems requiring dense interconnects
• Telecommunications infrastructure equipment
• Industrial control boards with vertical mounting constraints
• Server backplanes and storage arrays

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official TE Connectivity documentation to confirm exact plating thickness and material variants. Ensure compatibility with existing PCB footprint designs regarding vertical height restrictions. Cross-reference the latest datasheet revisions to confirm RoHS compliance status and moisture sensitivity levels before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when vertical space optimization is critical for the assembly layout. The 0.60mm pitch allows for high pin counts within limited board areas. Verify that the mating card thickness aligns with the connector's mechanical specifications. Consider the surface mount profile for reflow soldering compatibility during the production phase.

Edgeboard Connectors Part Context

This part belongs to the Sliver 2.0 family of edgeboard connectors designed for demanding electronic applications. The series emphasizes high reliability and precise alignment for dual-edge mating scenarios. It serves as a key interconnect solution in modern electronics where space efficiency and signal integrity are paramount requirements for system performance.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternative part numbers. Ensure any replacement maintains identical pitch, position count, and mounting style. Verify mechanical dimensions and electrical characteristics match the original design requirements.
