2333799-6

Edgeboard Connectors Overview

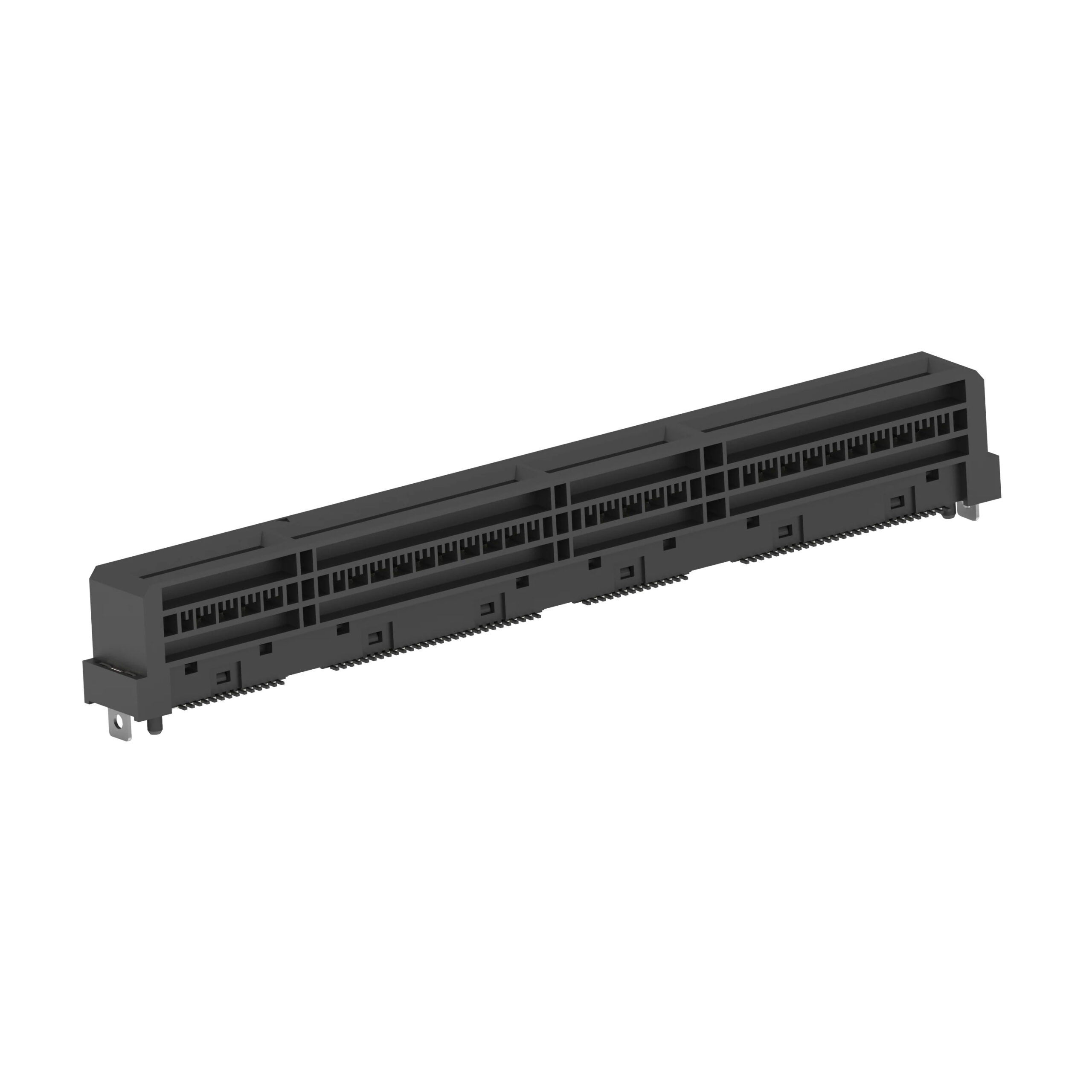

The TE Connectivity AMP Connectors part number 2333799-6 is a rectangular cable assembly, specifically a receptacle assembly with vertical orientation. It features 168 positions and utilizes the Sliver 2.0 series design. The connector is black in color and designed for dual-edge card applications. It employs a surface mount termination method suitable for automated pick-and-place processes. The component is constructed with copper alloy contacts and an LCP insulator, supporting a working temperature range of -55°C to 85°C.

Edgeboard Connectors Feature Summary

• Vertical receptacle assembly configuration for board-to-board or cable connections
• Dual-edge contact interface designed for high-density signal transmission
• Surface mount termination compatible with automated manufacturing processes
• Robust construction using LCP insulation and gold-plated copper alloy contacts

Edgeboard Connectors Applications

• High-density electronic interconnect systems
• Industrial control modules requiring vertical mounting
• Automotive electronics assemblies
• Telecommunications infrastructure equipment

Edgeboard Connectors Procurement Notes

Verify the specific suffix designation against official TE Connectivity documentation to ensure correct plating thickness and material specifications. Confirm availability status as supply conditions may vary by region. Cross-reference the datasheet revision history for any recent process changes that might affect compatibility with existing assembly lines.

Edgeboard Connectors Selection Notes

Select this component when a vertical, high-pin-count receptacle is required for dual-edge card interfaces. Ensure the mating card thickness aligns with the specified mechanical constraints. Verify that the surface mount footprint matches the PCB layout requirements for reliable solder joint formation during reflow processes.

Edgeboard Connectors Part Context

This component belongs to the Sliver 2.0 series, which is engineered for compact, high-performance interconnect solutions. The series emphasizes reliability in demanding environments through advanced material selection and precise contact geometry. It serves as a critical link in complex electronic assemblies where space constraints and signal integrity are paramount considerations.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternative part numbers. Generic equivalents may not match the precise mechanical tolerances or electrical characteristics required for dual-edge applications.
