Headers, Male Pins Overview

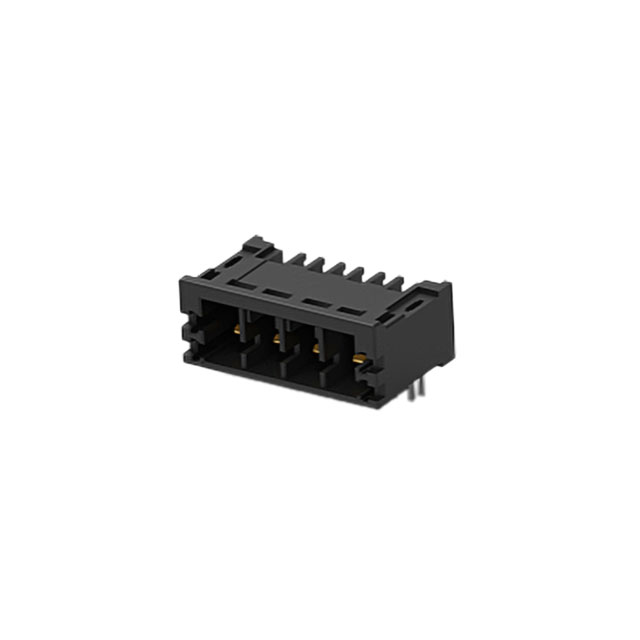

The TE Connectivity AMP Connectors part number 2336491-4 is a header connector belonging to the Dynamic D-2970 series. It features a male pin contact type with a single row configuration and four positions. The connector utilizes a through-hole right-angle mounting style with a pitch of 0.197 inches (5.00mm). Insulation color is black, and it supports a voltage rating of 300V.

Headers, Male Pins Feature Summary

• Ruggedized industrial package design for signal and power connectivity
• Right-angle through-hole mounting for space-efficient board integration
• Male pin contacts ensuring reliable circuit interconnection

Headers, Male Pins Applications

• Industrial equipment signal circuitry
• Power circuit connectivity in rugged environments
• General electronic assemblies requiring right-angle headers

Headers, Male Pins Procurement Notes

Verify the specific order suffix against official TE Connectivity documentation to confirm exact packaging and compliance details. Ensure the selected variant matches the required current rating for the intended wire gauge application. Confirm availability status directly with authorized distributors as stock levels fluctuate. Cross-reference the datasheet for precise mechanical dimensions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle, single-row header is required for industrial applications. The 5.00mm pitch accommodates standard wiring gauges while maintaining a compact footprint. Consider the 300V rating and ruggedized housing for durability in demanding operational environments. Verify that the through-hole termination method aligns with the manufacturing process capabilities of the target printed circuit board.

Headers, Male Pins Part Context

This connector belongs to the Dynamic D-2970 series by TE Connectivity AMP Connectors. The series provides solutions ranging from signal-level to power circuit connectivity within a ruggedized industrial package. It represents a specialized line designed for robust performance in challenging electronic assembly scenarios requiring reliable mechanical and electrical interfaces.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available for this component.
