2336568-1

Edgeboard Connectors Overview

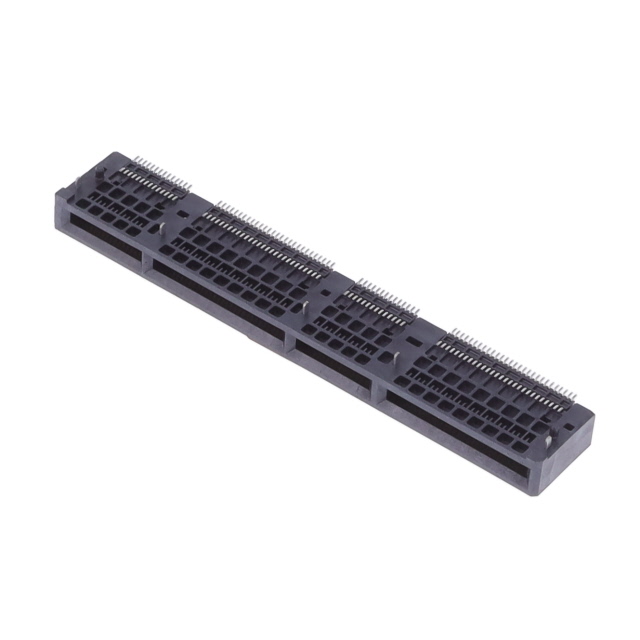

The TE Connectivity AMP Connectors 2336568-1 is a standard card edge receptacle assembly designed for surface mount technology. It features a right-angle configuration with 168 positions arranged in two rows, utilizing a precise 0.6 mm pitch. The connector is constructed with a liquid crystal polymer (LCP) housing and copper alloy contacts that are gold-plated to ensure reliable signal transmission. It supports a PCB thickness of 1.5 mm and operates within a temperature range of -55°C to +85°C. Rated for 1.1 A current, this component is optimized for high-density interconnect applications requiring robust mechanical stability and low contact resistance.

Edgeboard Connectors Feature Summary

• Dual-row right-angle receptacle design for high-density board-to-board connections
• Gold-plated copper alloy contacts ensure durable mating cycles and low resistance
• Liquid crystal polymer housing provides thermal stability and chemical resistance
• Surface mount termination facilitates automated pick-and-place assembly processes

Edgeboard Connectors Applications

• Home appliance control boards
• Washing machine interface modules
• High-density internal I/O interconnects

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official datasheet to confirm plating thickness and packaging variations. Ensure compatibility with the target PCB stack-up, particularly regarding the 1.5 mm board thickness requirement. Confirm RoHS compliance status matches project specifications. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components. Validate storage conditions to maintain moisture sensitivity levels prior to soldering.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, dual-row connection is required in a compact footprint. The 0.6 mm pitch allows for significant I/O density within limited board areas. Consider the right-angle orientation for space-constrained enclosures where vertical clearance is limited. Evaluate the 1.1 A current rating against the total load requirements of the application. Ensure the manufacturing process supports SMT reflow techniques compatible with the specified termination type.

Edgeboard Connectors Part Context

This connector belongs to the Sliver 2.0 series, which is engineered for small form factor applications. The series emphasizes reliability in demanding environments through advanced material selection and precision engineering. It aligns with industry standards for high-performance interconnects used in consumer electronics and industrial automation. The design focuses on minimizing insertion force while maintaining secure electrical contact throughout the product lifecycle.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available.
