2336568-4

Edgeboard Connectors Overview

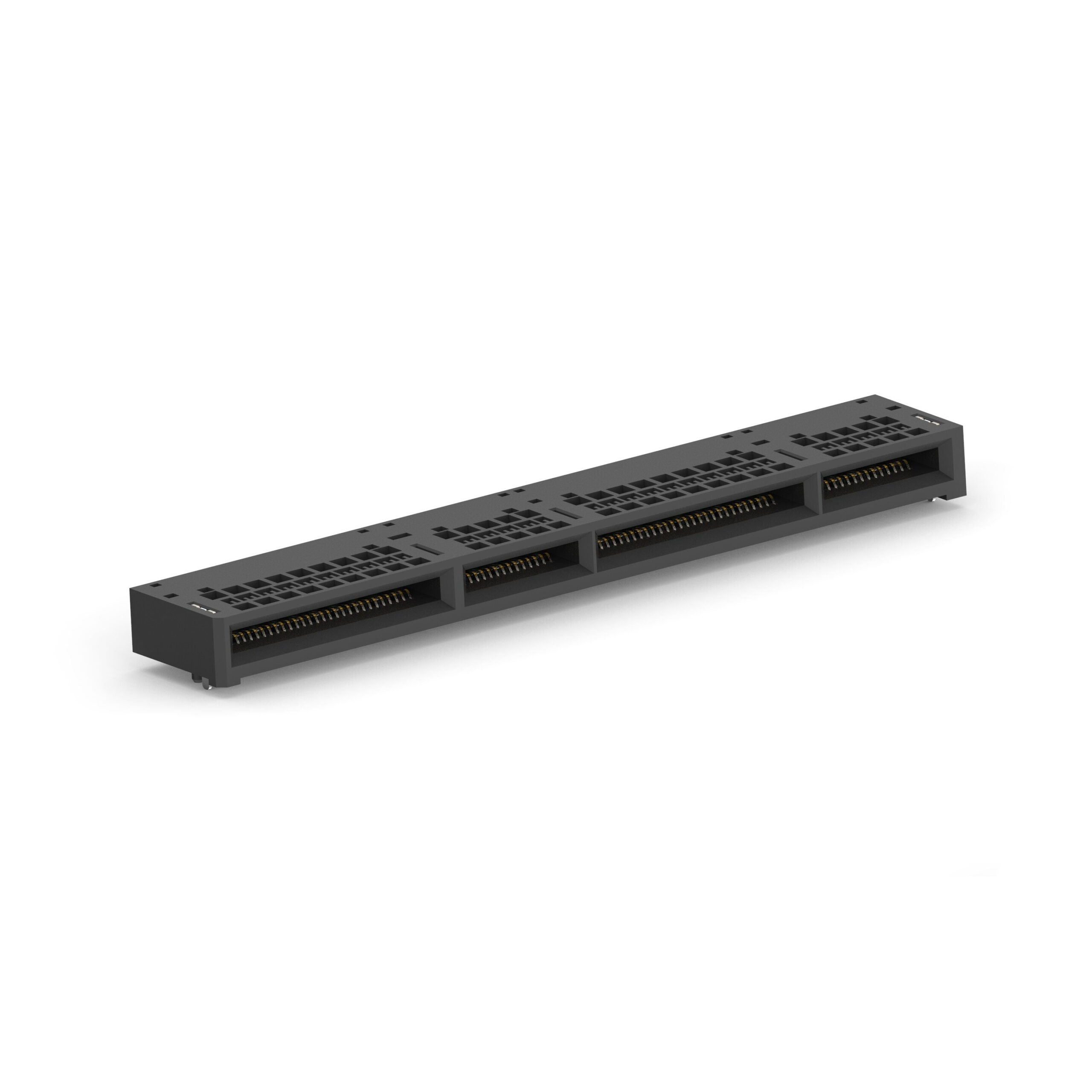

The TE Connectivity AMP Connectors part number 2336568-4 is a standard card edge connector receptacle assembly. It features 168 positions arranged in two rows with a pitch of 0.6 mm (0.024 inches). Designed for right-angle surface mount installation, it accepts PCBs with a thickness of 1.5 mm. The contacts are made of copper alloy with gold plating, and the housing is constructed from liquid crystal polymer (LCP).

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for high-density interconnections.
• Right-angle orientation facilitates compact board layout integration.
• Gold-plated copper alloy contacts ensure reliable signal transmission.
• Liquid crystal polymer housing provides thermal stability.

Edgeboard Connectors Applications

• High-density PCB interconnections in computing systems.
• Networking equipment internal I/O interfaces.
• Industrial equipment module connections.

Edgeboard Connectors Procurement Notes

Verify that the target printed circuit board design strictly adheres to the specified 1.5 mm thickness requirement to ensure proper mechanical engagement. Confirm that the right-angle mounting style aligns with the system's spatial constraints and thermal management strategy before finalizing component selection.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector is required for SMD applications involving 1.5 mm thick boards. Ensure compatibility with the 0.6 mm pitch and 168-position count. Verify that the operating temperature range of -55 C to +85 C meets the environmental demands of the specific application scenario.

Edgeboard Connectors Part Context

This component belongs to the Sliver 2.0 series by TE Connectivity, designed for standard card edge applications. It serves as a receptacle for mating with corresponding card edge modules, providing secure electrical connectivity in space-constrained electronic assemblies requiring robust surface mount solutions.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer resources for cross-reference data or equivalent specifications if direct replacement is necessary.
