2337939-2

Edgeboard Connectors Overview

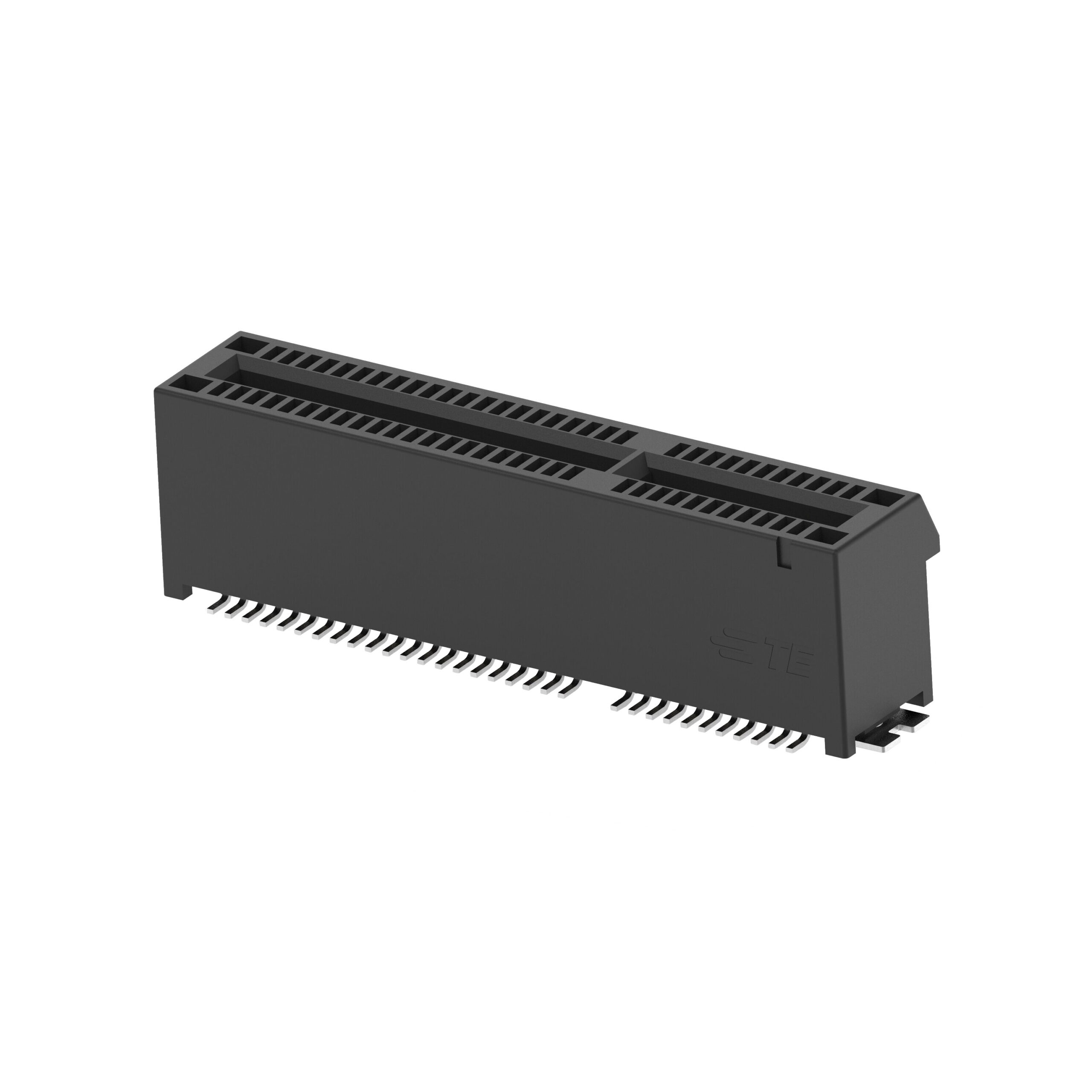

The TE Connectivity AMP Connectors model 2337939-2 is a standard card edge connector designed for PCI Express Gen4 applications. It features a surface mount termination type with a vertical mounting angle. The connector supports a dual configuration with 98 positions and utilizes gold-plated contacts on a copper alloy base. The insulation material is glass-filled Mylar, suitable for high-temperature environments.

Edgeboard Connectors Feature Summary

• Designed specifically for PCI Express Gen4 signal transmission requirements
• Surface mount construction facilitates automated pick-and-place assembly processes
• High-temperature resistant glass-filled Mylar insulation ensures thermal stability

Edgeboard Connectors Applications

• PCI Express Gen4 expansion cards
• High-speed data acquisition systems
• Industrial computing hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact contact plating thickness and insulation variant. Confirm RoHS compliance status through official TE documentation prior to integration. Ensure compatibility with the target PCB pad layout and reflow soldering profile specifications.

Edgeboard Connectors Selection Notes

Select this component when a 98-position interface is required for next-generation PCIe standards. Evaluate the glass-filled Mylar insulation properties against the system's thermal management requirements. Verify that the surface mount footprint aligns with the design constraints of the host board assembly process.

Edgeboard Connectors Part Context

This part belongs to the 2337939 series of standard card edge connectors from TE Connectivity. The series includes variants with different position counts such as 64 and 164 positions. These connectors are engineered to support high-frequency signal integrity in modern electronic architectures.

Edgeboard Connectors Replacement Considerations

Consult the official TE Connectivity datasheet for verified substitute part numbers within the same product family. Cross-reference pin counts and mechanical dimensions before implementation.
