2340165-1

Edgeboard Connectors Overview

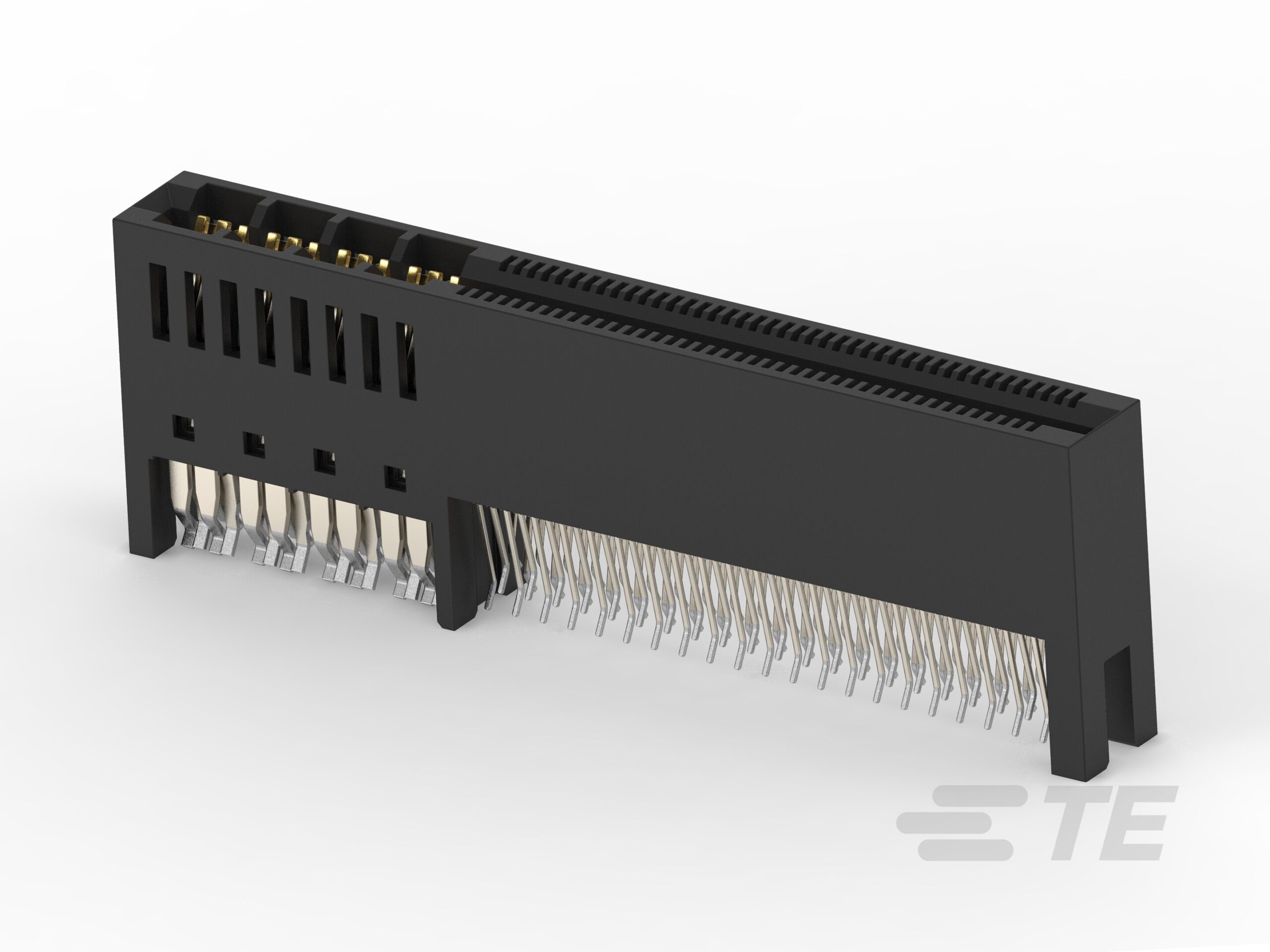

The TE Connectivity AMP Connectors part number 2340165-1 is a standard card edge connector designed for board-to-board interconnection. It features a dual-edge configuration with 92 positions, comprising 84 signal and 8 power contacts. The connector utilizes a straddle mount style with a 5.08 mm (0.2 inch) centerline pitch. It is constructed as a female receptacle with a black housing.

Edgeboard Connectors Feature Summary

• Dual-edge design supports simultaneous signal and power transmission across the board interface.
• Straddle mount configuration provides secure mechanical engagement between mating boards.
• Integrated power contact layout ensures dedicated high-current paths alongside signal lines.

Edgeboard Connectors Applications

• Board-to-board interconnection in industrial equipment
• High-density signal and power routing in server backplanes
• Data communication hardware requiring robust mechanical stability

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version to confirm current RoHS compliance status and material certifications. Ensure that mating connectors match the 5.08 mm pitch and dual-edge specifications. Confirm that the straddle mount footprint aligns with the target PCB design requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-position count with integrated power capabilities is required for vertical board stacking. The 5.08 mm pitch accommodates larger trace widths suitable for power distribution. Evaluate thermal management needs as the dual-edge structure influences heat dissipation characteristics during operation.

Edgeboard Connectors Part Context

This component belongs to the HDCE Plus series of card edge power connectors from TE Connectivity. The series focuses on providing reliable connections in demanding environments where both signal integrity and power delivery are critical. It represents a specialized solution for dense electronic assemblies requiring standardized mounting profiles.

Edgeboard Connectors Replacement Considerations

Direct substitutes must maintain the 92-position count, 5.08 mm pitch, and dual-edge straddle mount geometry. Verify that alternative parts support identical signal and power pin configurations. Cross-reference mechanical dimensions to ensure compatibility with existing PCB footprints and mating hardware.
