2340321-1

Edgeboard Connectors Overview

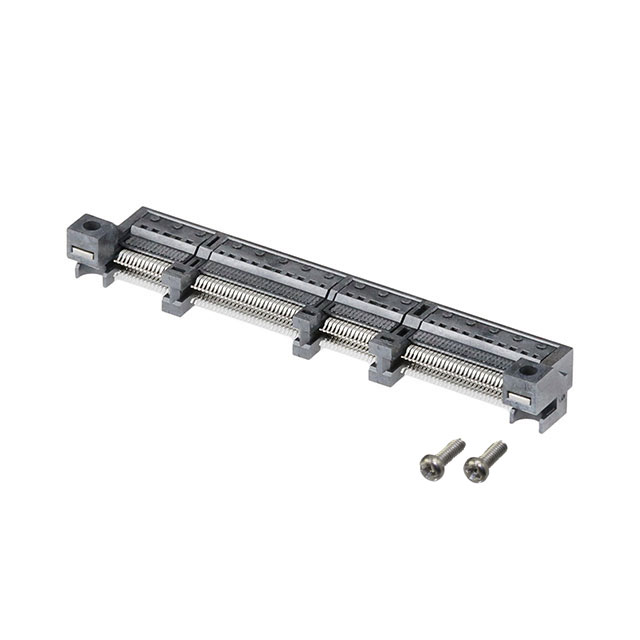

The TE Connectivity AMP Connectors part number 2340321-1 is a dual-edge card edge connector designed for high-reliability applications. It features 168 positions with female contacts, offering a pitch of 0.024 inches (0.60 mm). The connector utilizes gold-plated contacts to ensure stable signal transmission and low contact resistance. Constructed with a black thermoplastic housing, it supports surface mount installation on printed circuit boards. This component is engineered for robust performance in demanding electronic systems requiring secure board-to-board or board-to-backplane interconnections.

Edgeboard Connectors Feature Summary

• Dual-edge card edge design for secure vertical mating
• Gold-plated female contacts for reliable conductivity
• High-density 168-position configuration
• Surface mount termination for automated assembly

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Computing hardware backplanes
• Test and measurement instruments

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official TE Connectivity documentation to confirm exact plating thickness and material specifications. Ensure that the procurement source provides valid manufacturer traceability. Cross-reference the latest datasheet revisions to confirm compliance with current environmental regulations such as RoHS standards before finalizing purchase orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, dual-edge interface is required for compact PCB layouts. Evaluate the 0.60 mm pitch against available board space constraints. Confirm that the mating card edge thickness aligns with the connector's tolerance specifications. Consider the surface mount profile for reflow soldering compatibility within the manufacturing process.

Edgeboard Connectors Part Context

This connector belongs to the standard card edge series from TE Connectivity AMP Connectors. It represents a legacy solution for dense interconnect needs in industrial and commercial electronics. The design emphasizes mechanical stability and electrical continuity through precise contact geometry. It serves as a critical interface element in systems where reliable data and power transfer between modules is essential.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for direct replacements. Verify pin count, pitch, and mounting style compatibility before integrating alternative parts. Ensure that any substitute maintains the same dual-edge configuration and contact material properties to preserve system performance.
