2340321-3

$10.41

Description：ASSY STRADDLE MOUNT 168P 062 SLI
Series：Sliver 2.0
Mfr：TE Connectivity AMP Connectors
Package：Tray

SKU:f43d5d561983 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

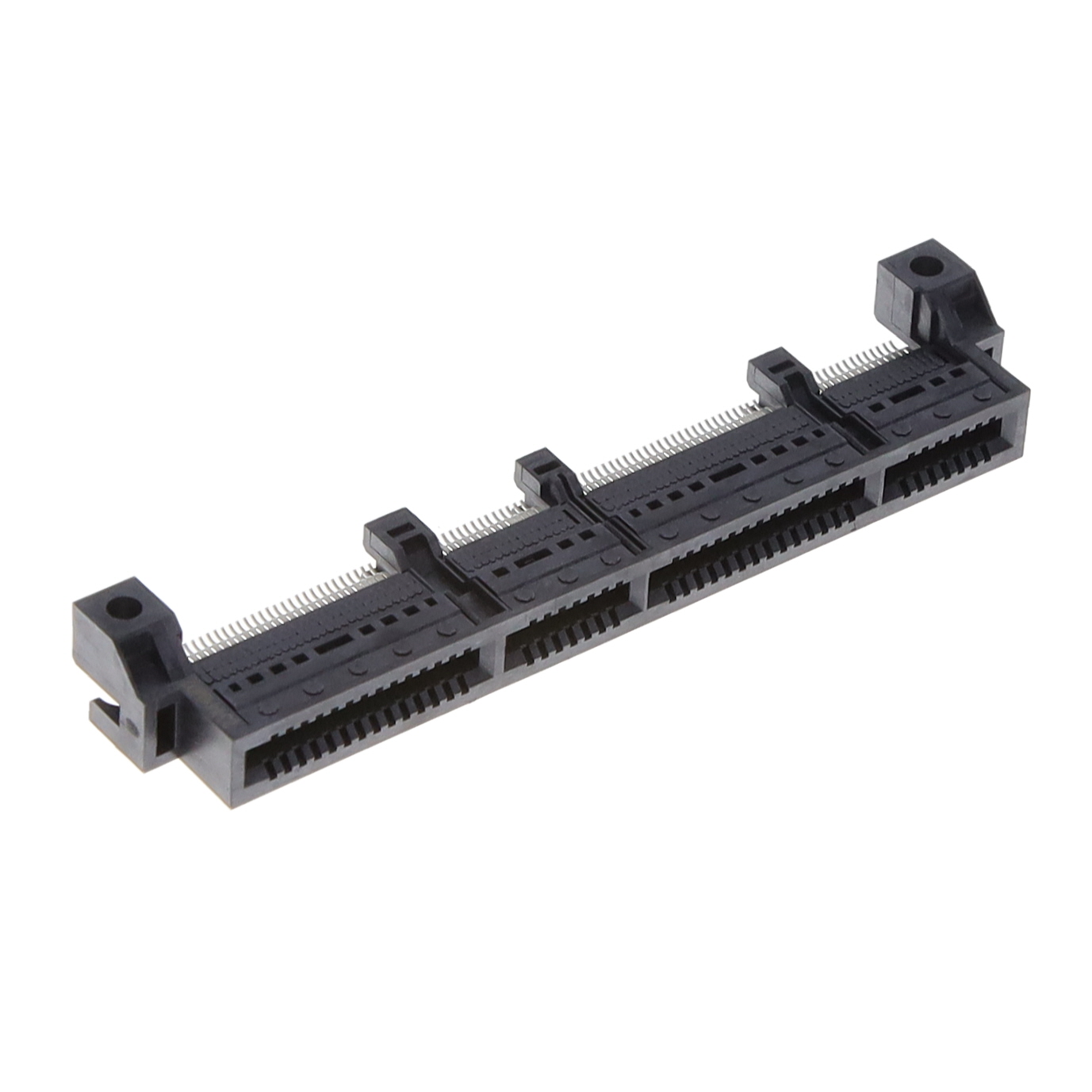

2340321-3 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is ASSY STRADDLE MOUNT 168P 062 SLI. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2340321-3

Description：ASSY STRADDLE MOUNT 168P 062 SLI
Series：Sliver 2.0
Mfr：TE Connectivity AMP Connectors
Package：Tray
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：28; 14; 28; 14
Number of Positions：168
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.024" (0.60mm)
Read Out：Dual
Features：-
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Straddle Mount Opening, Unthreaded, 0.094" (2.40mm)
Operating Temperature：-

Edgeboard Connectors datasheet and documents for 2340321-3

2340321-3

Edgeboard Connectors Overview

The TE Connectivity AMP Connectors part number 2340321-3 is a 168-position card edge connector designed for straddle mount applications. It features dual-edge contact configuration with gold plating and a 0.024-inch (0.60mm) pitch. The housing is black, and the termination method is solder. This component is manufactured by TE Connectivity AMP Connectors.

Edgeboard Connectors Feature Summary

Dual-edge contact design for straddle mounting on printed circuit boards
Gold-plated contacts to ensure reliable signal transmission
Solder termination method for secure board attachment

Edgeboard Connectors Applications

Computer hardware systems
Server backplanes
High-density electronic interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix and manufacturing revision against the official datasheet before procurement. Ensure compatibility with existing PCB layout requirements for straddle mount configurations. Confirm that the gold contact finish meets the environmental and electrical standards required for the target application environment.

Edgeboard Connectors Selection Notes

Select this component when a high-density 168-position interface is required for straddle-mounted assemblies. Consider the 0.60mm pitch and dual-edge geometry for space-constrained designs. Evaluate the solder termination type against assembly process capabilities and thermal profiles to ensure proper connection integrity during manufacturing.

Edgeboard Connectors Part Context

This connector belongs to the broader family of TE Connectivity card edge connectors. It serves as a critical interface solution in high-performance computing environments where robust mechanical stability and consistent electrical performance are essential for maintaining system reliability under operational stress.
