Edgeboard Connectors Overview

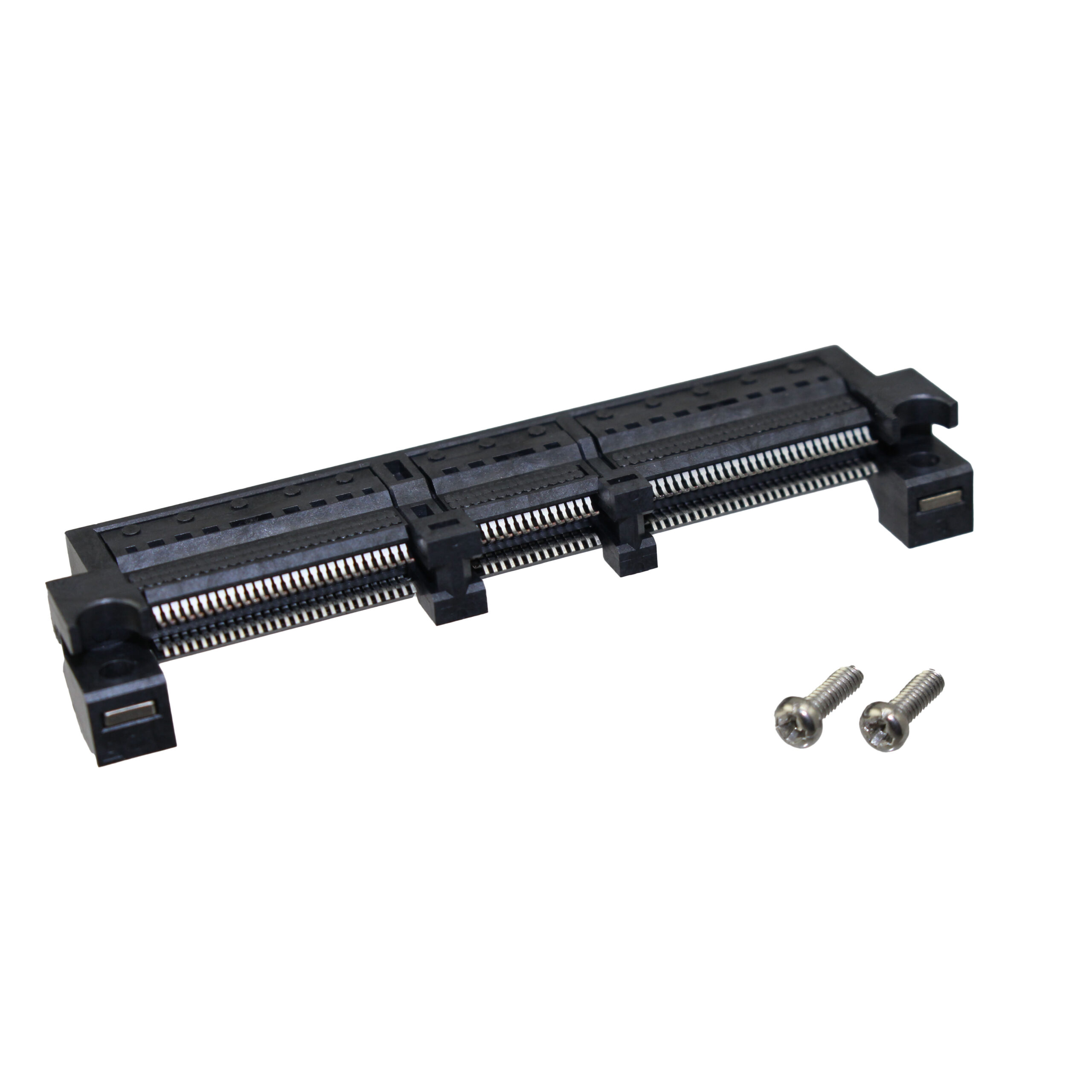

The TE Connectivity AMP Connectors part number 2340324-1 is a dual-edge female connector assembly designed for board edge mounting applications. It features 140 positions with a contact spacing of 0.60mm (0.024 inches). The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. This component utilizes a solder termination method for secure PCB attachment. The housing is black, providing visual identification and structural integrity within high-density electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for straddle mount installation
• Gold-plated copper alloy contacts for enhanced conductivity
• Solder termination ensures stable PCB connection
• Black housing material provides durability

Edgeboard Connectors Applications

• High-density backplane interconnects
• Server and storage system internal I/O connections
• Industrial control board edge interfaces
• Telecommunications equipment signal routing

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix and revision level against the manufacturer's latest datasheet before procurement. Confirm that the required contact finish thickness and housing material specifications align with your design requirements. Ensure compatibility with mating connectors regarding pin count and spacing. Check for any recent product change notices or obsolescence alerts associated with this part number to avoid supply chain disruptions during production.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 140 positions and 0.60mm pitch is required. It is suitable for applications needing robust solder termination and gold-plated contacts. Consider the straddle mount style for board edge stability. Evaluate thermal and mechanical constraints to ensure the operating temperature range meets system demands. Compare against alternative series if higher pin counts or different termination methods are needed.

Edgeboard Connectors Part Context

This connector belongs to the broader category of board edge connectors manufactured by TE Connectivity AMP Connectors. These components are engineered for high-reliability data and power transmission in demanding environments. The series typically includes various pin counts and configurations to support diverse electronic system architectures. The design emphasizes mechanical stability and electrical performance for critical infrastructure applications.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers include 5-2340324-1 and 2-2340324-1. Verify pin count, pitch, and mounting style compatibility before substitution. Ensure mating connector alignment and housing dimensions match the original design specifications.

Edgeboard Connectors FAQ

What is the contact spacing for the 2340324-1 connector?

The contact spacing is 0.60mm (0.024 inches).

Is the 2340324-1 connector male or female?

It is a female connector assembly.

What termination method does this connector use?

It uses a solder termination method for PCB attachment.
