2345506-1

Edgeboard Connectors Overview

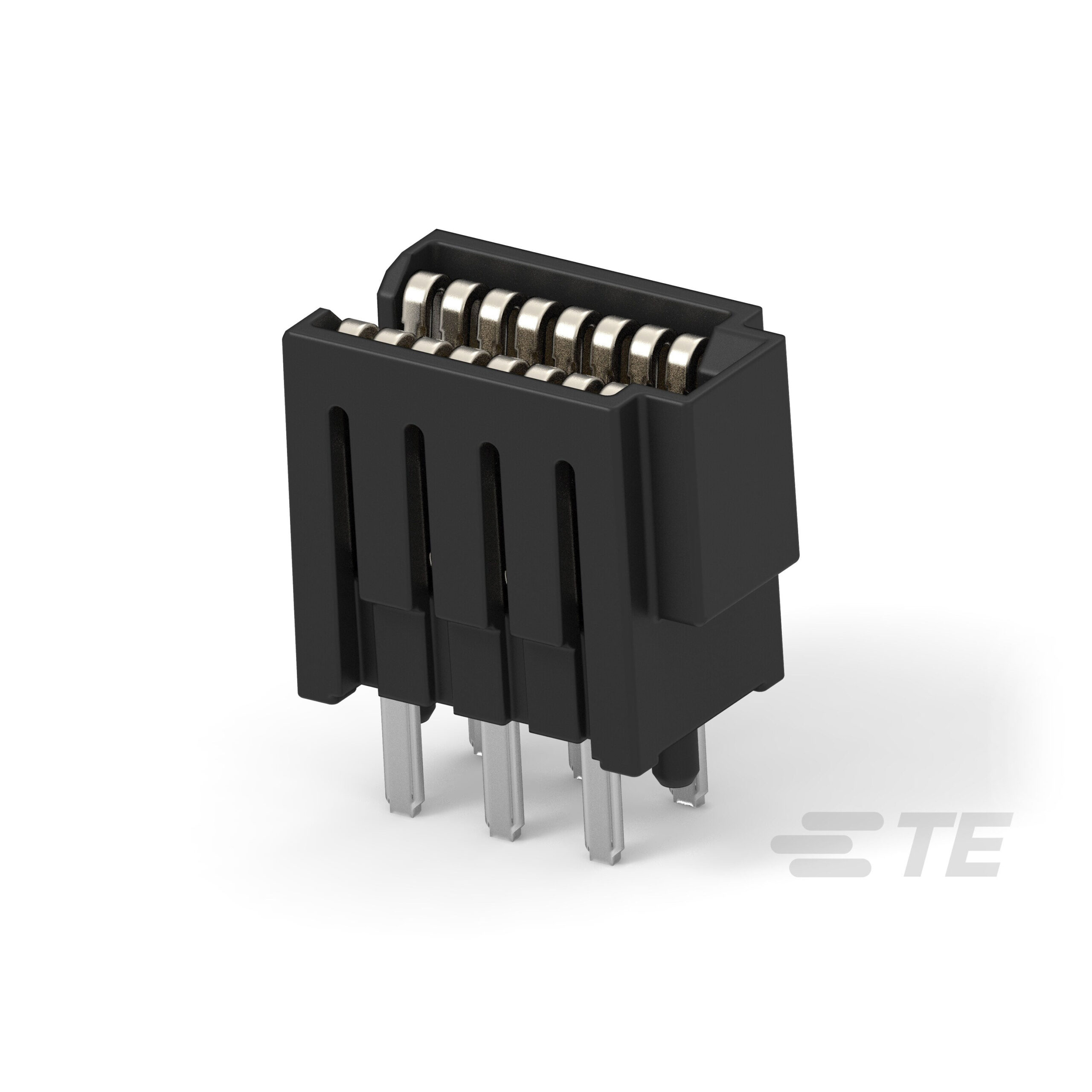

The TE Connectivity AMP Connectors 2345506-1 is a dual-edge card edge receptacle assembly featuring an end wall structure. It utilizes gold-plated contacts for reliable signal transmission and is designed for vertical board-to-board interconnections. The component supports high-current applications with a rated current of 55 A and operates within a temperature range of -55°C to +85°C. Constructed from liquid crystal polymer (LCP) housing, it ensures dimensional stability and flame resistance. The connector employs a mounting peg installation style for secure PCB attachment.

Edgeboard Connectors Feature Summary

• Dual-edge contact configuration for robust electrical interface
• Integrated end wall design for structural support
• Gold-plated contacts ensuring corrosion resistance
• Liquid crystal polymer housing for thermal stability

Edgeboard Connectors Applications

• High-density board-to-board interconnects
• Industrial control systems requiring high current
• Telecommunications equipment backplanes
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific revision level and packaging configuration against the latest manufacturer datasheet before procurement. Confirm that the end-wall assembly variant matches the mechanical constraints of the target printed circuit board layout. Ensure compatibility with mating card edge thickness specifications to maintain proper contact force and signal integrity during operation.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge receptacle with an integrated end wall is required for high-current signal routing. Evaluate the LCP material properties against environmental exposure conditions. Consider the 55 A current rating relative to trace width limitations on the mating substrate. Verify that the mounting peg orientation aligns with the assembly fixture requirements.

Edgeboard Connectors Part Context

This part belongs to the standard card edge connector family manufactured by TE Connectivity AMP Connectors. It represents a specialized receptacle variant designed for applications demanding enhanced mechanical retention through its end wall feature. The product line emphasizes durability in industrial environments while maintaining precise electrical performance standards for critical data and power lines.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
