Edgeboard Connectors Overview

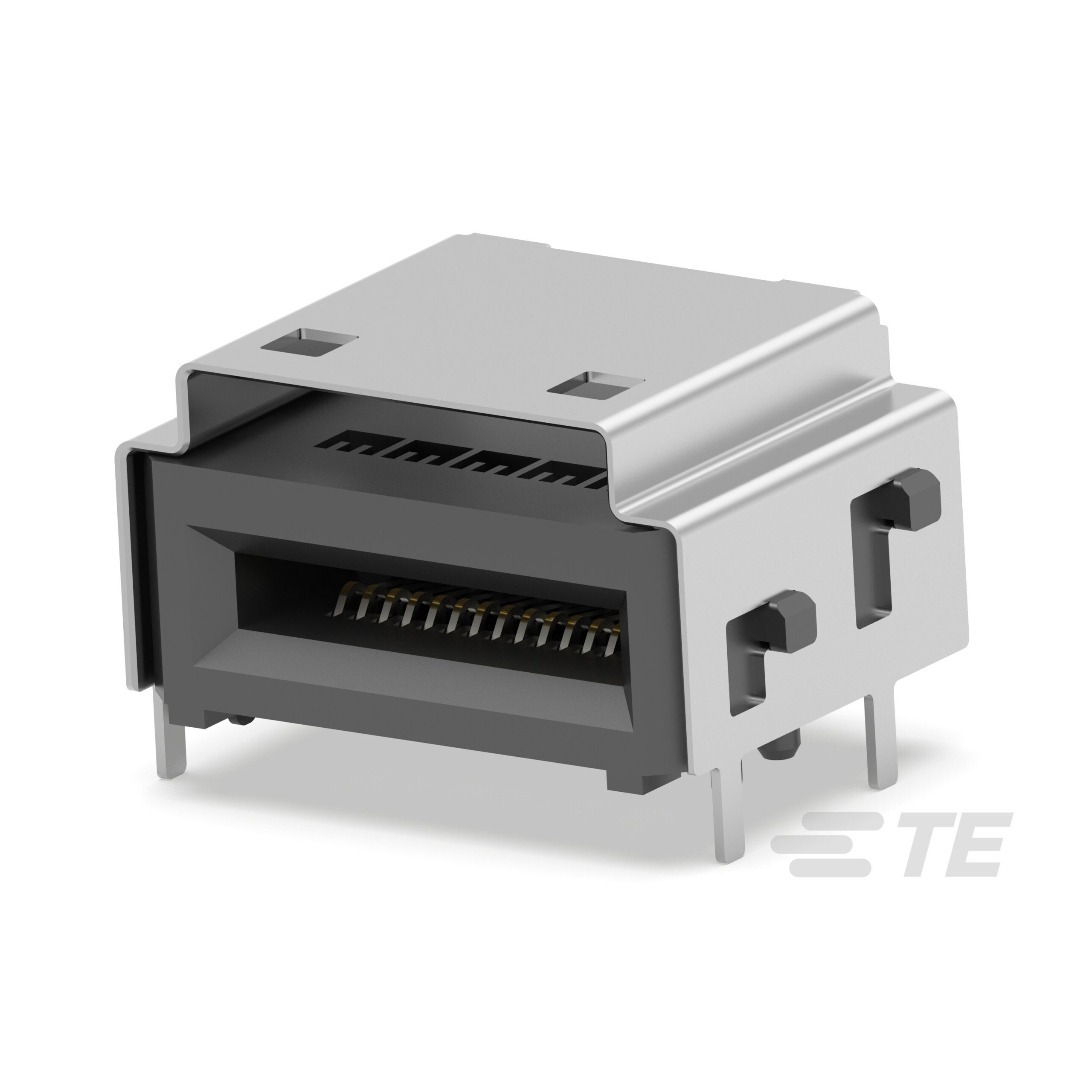

The TE Connectivity AMP Connectors part number 2345808-1 is a standard card edge connector assembly. It features a dual female receptacle configuration with 28 positions arranged in a right-angle mounting style. The component utilizes a 0.6 mm pitch and incorporates gold-plated contacts made from copper alloy. The housing is constructed from liquid crystal polymer (LCP). The connector supports a maximum current rating of 1.1 A and operates within a temperature range up to +85°C.

Edgeboard Connectors Feature Summary

• Dual female card edge receptacle design for reliable signal transmission
• Right-angle mounting configuration with integrated mounting pegs
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance

Edgeboard Connectors Applications

• High-density electronic interconnect systems
• Industrial control module connections
• Consumer electronics internal circuit board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct contact plating, housing material, and termination style compatibility. Confirm that the selected variant meets the required environmental ratings and mechanical retention specifications for the target application environment before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 28-position dual-sided card edge interface is required with a 0.6 mm pitch. Ensure the design accommodates the right-angle footprint and LCP housing thermal properties. Validate that the 1.1 A current rating aligns with the electrical load requirements of the connected circuitry.

Edgeboard Connectors Part Context

This component belongs to the standard card edge connector category manufactured by TE Connectivity / AMP. It serves as a critical interconnect solution for mating with corresponding edge cards or PCBs. The product line emphasizes robust mechanical stability and consistent electrical performance in compact form factors.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalent part numbers. Do not assume cross-compatibility with generic card edge connectors due to potential differences in pitch, housing material, or contact geometry.
