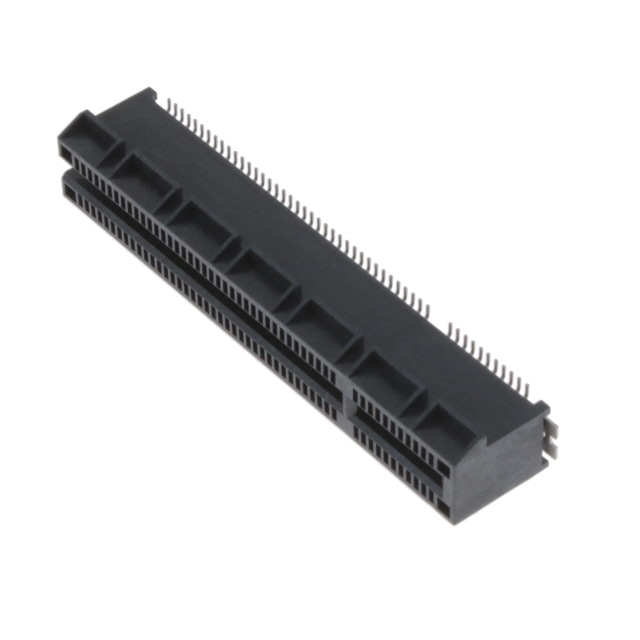

2349820-3

$5.27

Description：PCIEG4,SMT,V,98P,G/F,HT,OEW
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:70327cc80105 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2349820-3 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is PCIEG4,SMT,V,98P,G/F,HT,OEW. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2349820-3

Description：PCIEG4,SMT,V,98P,G/F,HT,OEW
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：11; 38
Number of Positions：98
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Board Guide, Locking Ramp
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：Flash
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 85°C

Edgeboard Connectors datasheet and documents for 2349820-3

2349820-3

Edgeboard Connectors Overview

The TE Connectivity AMP Connectors part number 2349820-3 is a high-density interconnect component designed for PCI Express applications. It features a 98-position female connector configuration with gold-plated contacts and a 0.039-inch (1.00mm) pitch. The unit is black in color and utilizes surface mount technology for PCB integration.

Edgeboard Connectors Feature Summary

Surface mount design for automated PCB assembly
Gold-plated contacts for reliable signal transmission
Female pin configuration for card-to-board connection

Edgeboard Connectors Applications

PCI Express peripheral cards
High-speed data interface modules
Server expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific suffix variant against the official datasheet to ensure compatibility with the intended board layout and mating connector requirements. Confirm RoHS compliance status and moisture sensitivity level prior to procurement to align with manufacturing handling protocols.

Edgeboard Connectors Selection Notes

Select this component when a 98-position, 1.00mm pitch female connector is required for PCI Express implementations. Ensure the design supports surface mount assembly and accommodates the specified contact plating thickness for optimal electrical performance in high-frequency environments.

Edgeboard Connectors Part Context

This component belongs to the PCIEG4 series of connectors manufactured by TE Connectivity AMP Connectors. It is engineered specifically for high-density interconnect applications requiring robust signal integrity and mechanical stability in compact electronic assemblies.
