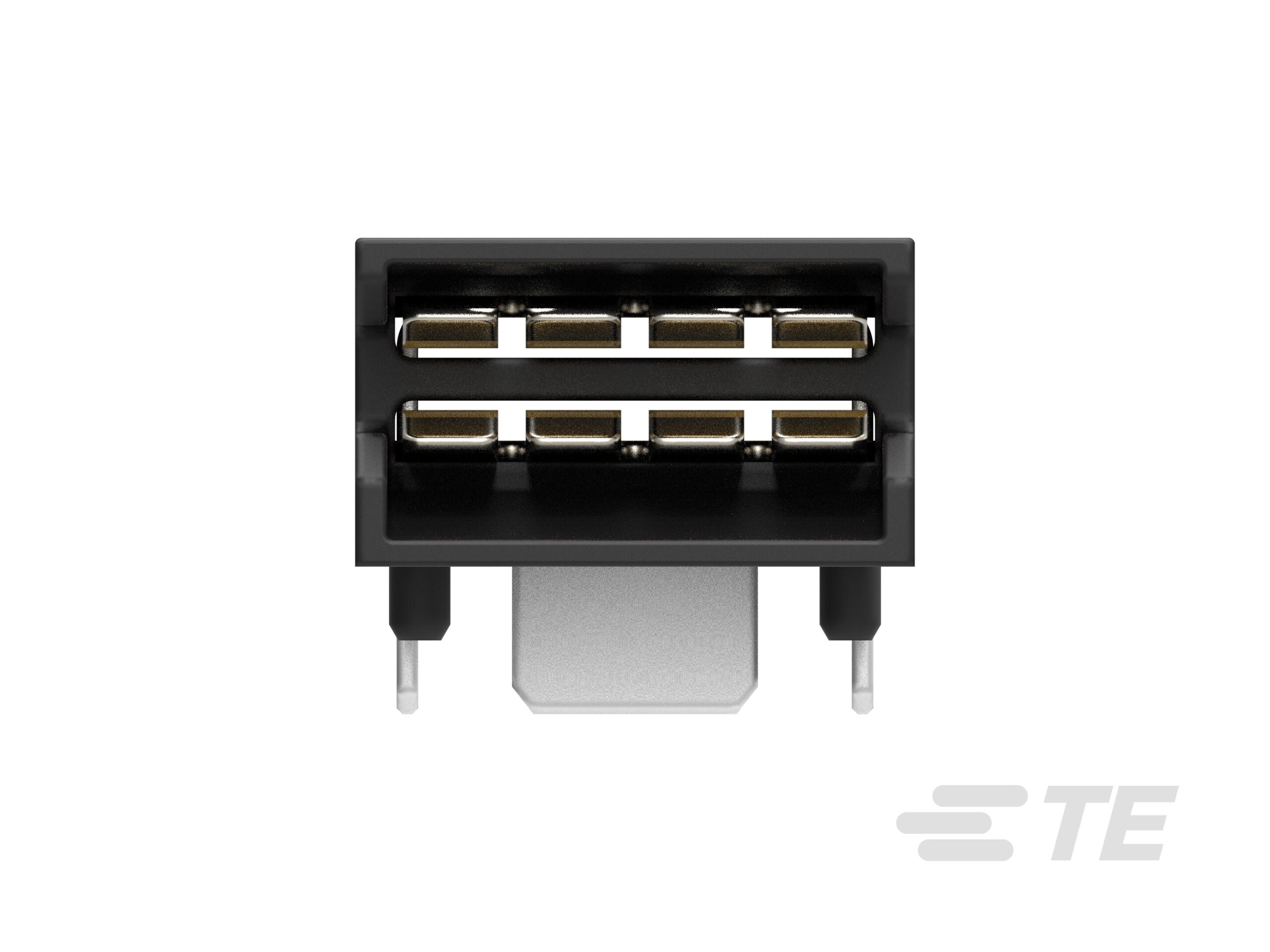

2351970-1

$6.00

Description：RA SLIVER POWER ASSEMBLY
Series：Sliver 2.0
Mfr：TE Connectivity AMP Connectors
Package：Box

SKU:7b9abd8e2653 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2351970-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is RA SLIVER POWER ASSEMBLY. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2351970-1

Description：RA SLIVER POWER ASSEMBLY
Series：Sliver 2.0
Mfr：TE Connectivity AMP Connectors
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：3 (Power)
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：-
Read Out：Dual
Features：Board Guide
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：-
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-55°C ~ 105°C

Edgeboard Connectors datasheet and documents for 2351970-1

2351970-1

Edgeboard Connectors Overview

The TE Connectivity AMP Connectors part number 2351970-1 is a dual-edge power connector assembly belonging to the Sliver 2.0 series. It features two positions and utilizes a solder termination method for secure electrical connections. The housing is constructed from black material, while the contacts are gold-plated to ensure reliable conductivity. Designed for free-hanging installation, this component operates within a temperature range of -55°C to 105°C.

Edgeboard Connectors Feature Summary

Dual-edge configuration for efficient board integration
Gold-plated contacts for enhanced signal integrity
Solder termination for robust mechanical stability

Edgeboard Connectors Applications

High-density electronic assemblies
Power distribution systems
Industrial control equipment

Edgeboard Connectors Procurement Notes

Verify the specific package type and quantity per reel when ordering, as packaging details may vary by distributor. Confirm that the solder termination style matches your manufacturing process requirements. Ensure compatibility with the intended PCB layout before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component for applications requiring high-density power connections with dual-edge access. The gold plating offers superior corrosion resistance compared to standard tin finishes. Consider the operating temperature range of -55°C to 105°C when evaluating environmental suitability for your specific deployment scenario.

Edgeboard Connectors Part Context

This connector belongs to the Sliver 2.0 series, which is designed for compact and high-performance interconnect solutions. The series emphasizes space-saving designs without compromising electrical reliability. It represents TE Connectivity's focus on advanced miniaturization in power and signal transmission applications.
